U-axis Tools in Machining Centers: How the Extra Axis Works

• 1
  What a U axis actually is
• 2
  How the U axis is synchronized with the other axes
• 3
  Which features need it and which do not
• 4
  U-axis tools in machining centers compared with lathes and 5-axis mills
• 5
  When the U axis is the wrong answer
• 6
  Setup count and tolerance risk by machine type

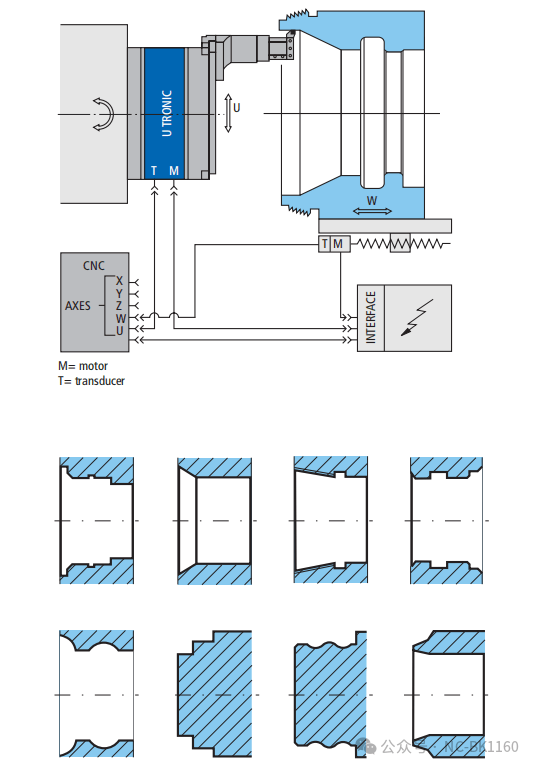

A U axis is a servo-driven slide mounted on the spindle head of a machining center. Its travel is short, usually a few millimeters, but it moves a small tool in and out along a direction parallel to the machine X axis. Because the U slide carries its own motor and feedback, the control can interpolate it in real time, so the cutting edge follows a path the main axes cannot reach alone.

Two hardware layouts dominate. In the first, a flat rotating disc sits in the spindle and a turning tool is clamped on the disc face; the disc angle sets the tool orientation and the U slide sets the depth. Shop talk calls this a U-axis tool. In the second, a compact right-angle head carries a small milling or boring spindle, and the U slide handles radial feed. The first is built for turning and grooving, the second for internal features.

The axis is not a spindle. It has no continuous rotation and no bar capacity, so it cannot replace a lathe. What it does is let one machine complete a turned or circular feature on a part that stays in a milling fixture. That single setup is the whole point.

• 1
  Short travelTypically a few millimeters of servo stroke
• 2
  Real-time controlInterpolated with X, Y, Z and the C or B axis
• 3
  Two common buildsDisc-type turning holder, or right-angle milling head

The workpiece usually turns on a rotary table while the U slide feeds the tool. A rotary table of Ø400 mm is a practical size for this work. The control holds the table at a commanded angle, then offsets the tool in U to cut a diameter, a face groove, or a spherical seat. Position, velocity and acceleration all have to match, or the surface shows a step at each table index.

Because the U stroke is so short, one tool cannot cover a wide range of diameters. Operators set a nominal position with the tool holder, then use the U axis for the final few millimeters of feed and for compensation. That is why tool presetting matters more here than on a plain 3-axis job. A 0.01 mm setting error shows up directly in the part.

Thermal drift is the other factor. The U slide sits close to the spindle, so spindle growth moves the tool. On long cycles, warm-up and in-process gauging keep the feature in tolerance. On our machines we hold ±0.005 mm (±0.0002 in) on the main axes, and U-axis features are inspected against the same band.

• 1
  Match accelerationsMismatched axis dynamics leave witness marks at each index
• 2
  Preset the toolSet nominal position offline, use U for final feed
• 3
  Control heatSpindle growth shifts the tool, so warm up before finishing

The U axis earns its keep on round features that sit inside a part which is already located in a milling setup. Think of an internal retaining groove, a spherical seat, a seal counterbore, or a face groove on a flange. On a 3-axis mill these need a special form tool or a second operation. A form tool only cuts one diameter, and a second operation adds a fixture and a re-datum.

Take a hydraulic manifold with a bored port. The port is 22 mm deep and the groove sits 15 mm down the bore, behind a shoulder. A boring bar on a 3-axis machine cannot reach it. A two-piece form tool can, but the tool is fragile and the diameter is fixed. A U axis cuts the groove with a single-point tool and the diameter comes from the program.

The same logic applies to back chamfers and undercuts on the far side of a hole. If the feature is round and sits inside a bore, a U axis is often the cleanest way to reach it. If the feature is a pocket with straight walls, a corner radius, or anything with a free-form surface, the U axis adds nothing. A 5-axis machine handles that geometry better.

• 1
  Good fitInternal grooves, back chamfers, spherical seats, face grooves
• 2
  Poor fitStraight-wall pockets, corner radii, free-form surfaces
• 3
  Form tools fadeOne diameter per tool, and they break easily at depth

A CNC lathe with a Y axis and live tooling can turn and mill, and it usually does it faster on round parts. Its weakness is prismatic geometry. Once the part is a block with bores in several faces, the lathe needs several setups and fixtures. That is where a machining center with a U axis pulls ahead: the block is located once, and the round features are finished without moving it.

A simultaneous 5-axis machine is the other option. It reaches undercuts and angled features with a short, stiff tool, and it holds position well because the whole machine moves, not a small slide. But the machine hour rate is higher, and programming takes longer. For a single internal groove, the U axis is cheaper and faster to set up.

The deciding question is datum count. Count how many setups the part needs on each machine and how many tight tolerances cross between them. If a bore-to-bore relationship crosses a setup boundary, the U axis usually wins on capability. If the part is round and the tolerances stay inside one turning setup, buy lathe time.

• 1
  Lathe winsRound parts, high volume, tolerances inside one chucking
• 2
  U axis winsPrismatic part, round features, tight datum relationships
• 3
  5-axis winsAngled or contoured features, undercuts needing a short tool

Deep bores kill the idea. A U-axis head has to fit inside the bore, and the head diameter sets the minimum bore size. If the groove sits 80 mm down a 30 mm bore, the head cannot reach it with enough stiffness, and chatter shows up on the groove flanks. Gun drilling plus a mechanical grooving tool, or EDM, is the honest answer there.

High volume round parts are another mismatch. A lathe with a sub-spindle and bar feeder will beat a machining center on cycle time and cost per piece, every time. Use the U axis for prototypes, low-volume runs, and parts that must stay on one datum. Do not use it to compete with a turning cell.

Finally, check whether the drawing really needs the feature in that location. Engineers sometimes add an internal groove for a retaining ring when a threaded plug, a snap-in insert, or an external shoulder would do the same job with a standard tool. A short design review before programming often removes the hardest feature on the part.

• 1
  Reach limitHead diameter sets the minimum bore, depth sets stiffness
• 2
  Volume limitAbove a few thousand round parts, a lathe is cheaper
• 3
  Design limitAsk whether the groove can be replaced by a standard feature
