How to Avoid Vibrations During High Speed Machining in a Twin-Spindle Machining Center
Chatter and vibration show up fast when two spindles cut at high rpm. This page breaks down the symptoms, the causes, and the fixes we use on 127 CNC machines. Read it to decide whether the problem is the tool, the holder, the fixture, or the process window.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
- 7
Chatter symptoms, causes, and what to do
Read the symptom first, then the cause, then the action. Most twin-spindle chatter cases land in the first three rows.
| Symptom | Likely cause | Action |
|---|---|---|
| Regular marks at tooth frequency | Tool runout or unbalanced holder | Indicate holder, rebalance to G2.5 |
| Bands spaced like a wave | Dominant natural frequency at that rpm | Shift spindle speed 5–10% up or down |
| Chatter only on one spindle | Spindle taper wear or drawbar force low | Check taper contact, measure drawbar force |
| Screaming on thin walls | Low stiffness in the part, not the tool | Add support, reduce radial depth of cut |
| Vibration at long overhang | Tool length-to-diameter above 4:1 | Use shrink-fit or carbide shank, reduce overhang |
| Good first part, drifting later | Thermal growth and worn insert edge | Warm-up cycle, index inserts on schedule |
| Marks near the end of a pass | Corner engagement spike | Trochoidal entry, add corner radius |
| Both spindles chatter together | Foundation or leveling issue | Re-check level, anchor, isolate floor |
The short version
Fix tool overhang and runout first, then shift speed, then support the part. Machine-level checks come last because they cost the most downtime. If you send us the drawing and the setup, we will tell you which of the seven checks matters most for your part.

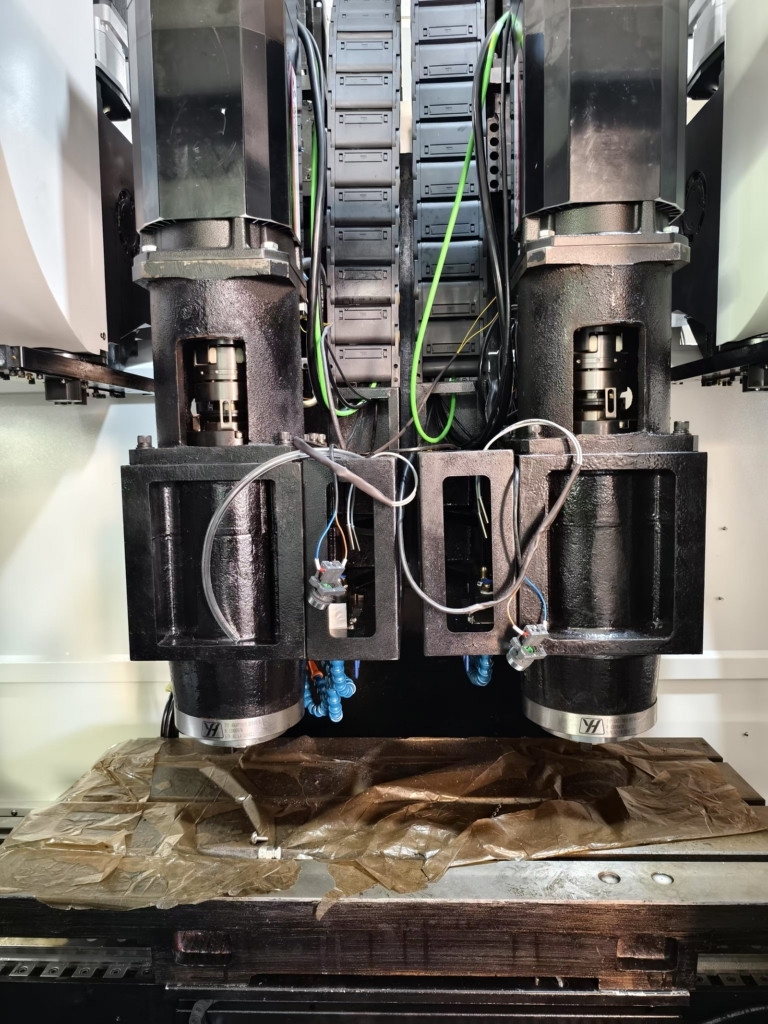

What chatter looks like on a twin-spindle center
Vibration in a twin-spindle machining center rarely looks like a single problem. You get a spectrum. At low amplitude it is a fine pattern on the floor of a pocket. At high amplitude it is a scream, a dull insert, and a spindle load meter that jumps 20%. The trick is to read the pattern before you touch a single offset.
The pattern tells you the frequency. Evenly spaced marks matching the number of teeth point to forced vibration from runout or imbalance. Marks that form waves with no relation to tooth count point to self-excited chatter, where the tool and the workpiece trade energy back and forth. Those two need opposite fixes, so getting the diagnosis wrong wastes a shift.
Twin-spindle machines add one more variable. Two spindles on one bed share a frame. If one spindle is running a heavy cut and the other is finishing, the frame sees two excitation sources at once. A cut that is stable on a single-spindle machine can go unstable here, because the second spindle pushes energy into the same casting.
This page is written for the engineer setting up the job, not for the machine builder. We cover the checks in the order we run them at GreatLight: tool and holder first, then the process window, then the fixture, then the machine itself. If you only have time for one check, start with tool overhang.
Tool and holder choices that avoid vibrations during high speed machining
Overhang is the single biggest lever. Stiffness drops with the cube of the length-to-diameter ratio. A Ø12 mm end mill at 36 mm overhang is roughly 27 times stiffer than the same tool at 108 mm. When you see chatter, the first question is always whether you can shorten the gauge length. If the geometry will not let you, the second option is a stiffer tool body.
Carbide shanks beat steel shanks at the same diameter. Heavy-metal holders add mass and push the natural frequency away from the tooth-passing range. Shrink-fit holders hold runout under 0.003 mm, which cuts forced vibration at the source. A worn collet with 0.02 mm runout puts one tooth deeper than the rest, and that tooth does the chattering.
Tool geometry matters more at high speed than at low speed. A variable helix or variable pitch cutter spreads tooth-passing energy across a band instead of concentrating it at one frequency. That single change often removes a stable-speed pocket from the stability lobe diagram. For aluminium we run 3-flute polished tools with high rake; for 17-4PH and Ti-6Al-4V we run 4 or 5 flutes with a hone and a tighter edge.
Balance grade is not optional above 12,000 rpm. A holder balanced to G2.5 at 20,000 rpm keeps the residual unbalance low enough to stay under 1 mm/s vibration. An unbalanced holder at the same speed will show a clean cut at low rpm and a rough one at high rpm. If the surface gets worse as you increase speed, check balance before you check anything else.
- 1Keep L:D under 4:1Above that, chatter risk climbs fast. Reduce if geometry allows.
- 2Hold runout under 0.005 mmMeasure at the cutting edge, not at the holder face.
- 3Choose variable pitch for pocketsSpreads tooth-passing energy and widens stable windows.
- 4Balance above 12,000 rpmG2.5 or better keeps forced vibration low.
Finding a stable speed and feed window
Every spindle-tool-holder assembly has stability lobes. Some speeds chatter, others run quiet, and the difference can be 300 rpm. Instead of guessing, we run a quick tap test or use the machine's own vibration sensor to map the lobes. On a twin-spindle center you map each spindle separately, because the two assemblies are never identical.
Radial depth of cut is the second lever. Reducing radial engagement from 50% to 25% of diameter often doubles the stable depth of cut. That is counterintuitive until you see the force vector: a smaller radial bite moves the force direction closer to the tool axis, which loads the stiff direction of the tool instead of the flexible one.
Feed per tooth controls chip thickness, and chip thickness controls regeneration. Too light a chip lets the tool rub, which excites chatter. Too heavy a chip overloads the edge. For aluminium at 15,000 rpm, we usually land between 0.08 mm and 0.15 mm per tooth. For stainless and titanium, 0.05 mm to 0.10 mm per tooth is a safer start.
Coolant strategy affects vibration more than most people expect. Through-spindle coolant at 70 bar clears chips that would otherwise be recut. Recutting changes the effective chip load and can push a stable cut into chatter. On deep pockets in 6061 or 7075, high-pressure coolant is often the cheapest fix on the list.
- 1Map each spindle separatelyTwo assemblies, two lobe diagrams.
- 2Cut radial engagement first25% radial often doubles stable depth.
- 3Do not rubA minimum chip load of 0.05 mm per tooth avoids rubbing chatter.
- 4Use high-pressure coolant70 bar through-spindle clears chips and stabilizes the cut.
Workholding fixes when the part is the weak link
Thin walls and long parts move. Clamping force alone will not fix that. A wall 1.5 mm thick in 6061 will deflect under a 200 N cut even if the fixture is perfectly rigid. The answer is support, not more clamp pressure. Add a sacrificial plug, a low-melt alloy fill, or a tuned mass damper if the geometry allows.
Clamp position changes the mode shape. Clamping near the cut point shortens the unsupported span and raises the natural frequency. Clamping at the ends leaves the middle free to ring. On twin-spindle work, the two parts should be clamped symmetrically, because an asymmetric setup loads the frame unevenly and can couple the two spindles.
Zero-point systems and pallets help here. A pallet that is not seated flat will rock under load, and the rocking shows up as a low-frequency vibration that no speed change will fix. We check pallet contact with bluing and re-seat before every run with a hard part.
For parts with a high length-to-width ratio, an active damper or a tuned passive damper on the fixture can add 10–15 dB of damping. That is often enough to turn a screaming cut into a quiet one without changing a single program value.
- 1Support thin wallsFill, plug, or damper beats more clamp force.
- 2Clamp near the cutShorten the unsupported span to raise frequency.
- 3Keep the setup symmetricAsymmetric clamping couples the two spindles.
- 4Seat pallets flatCheck with bluing; rocking causes low-frequency chatter.
Machine and spindle checks that stop the ringing
When every tool and process change fails, look at the machine. Spindle taper contact below 80% lets the tool move under load. Drawbar force below spec lets the holder slip. Both show up as chatter that gets worse as the cut gets heavier, and both are measurable with a taper check and a drawbar gauge.
Leveling and foundation matter more on a twin-spindle center because the bed is longer. A machine that is out of level by 0.02 mm per meter will twist under thermal load. That twist changes the alignment between the two spindles and between the spindle and the table, and the cut goes unstable. Re-check level after every move and after any foundation work.
Spindle bearings wear. A bearing with a rough spot will show a vibration peak at a non-integer multiple of spindle speed. If you see a peak that does not move when you change rpm, it is a bearing or a belt, not a cutting parameter. That is a maintenance call, not a programming call.
Thermal growth is slow chatter's cousin. A machine that has been idle overnight will drift for the first 30–60 minutes. Warm up the spindle at 25% to 50% of max rpm for 15 minutes before the first finishing pass. On a twin-spindle center, warm both spindles, not just the one you are using.
- 1Check taper contactTarget above 80% contact area; bluing test.
- 2Measure drawbar forceBelow spec means the holder slips under load.
- 3Re-level after moves0.02 mm per meter twist changes alignment.
- 4Warm up both spindles15 minutes at 25–50% max rpm before finishing.
Step-by-step chatter troubleshooting sequence
Run these in order. Stop as soon as the vibration drops below 1 mm/s RMS.
- 1Measure vibration at the spindle noseUse a handheld meter in mm/s RMS. Below 1 mm/s is good; 1–3 mm/s is marginal; above 3 mm/s will show on the surface. Record the value at the current rpm before changing anything.
- 2Shorten tool overhangReduce gauge length by 20–30% if the geometry allows. Re-measure. If vibration drops by half, overhang was the driver and you can stop here.
- 3Check runout at the cutting edgeTarget under 0.005 mm. If it is over 0.01 mm, clean the taper, re-seat the holder, or replace the collet. Re-measure vibration.
- 4Shift spindle speed 5–10%Move away from the dominant frequency. Try both up and down. Keep the same feed per tooth so chip load stays constant. Re-measure.
- 5Reduce radial depth of cutDrop from 50% to 25% of diameter and raise feed per tooth to keep the same material removal rate. This is often the fastest fix for thin-wall parts.
- 6Add damping at the partFill a pocket with low-melt alloy, add a tuned damper, or move clamps closer to the cut. Re-measure at the spindle nose and at the fixture.
- 7Check taper contact and drawbar forceBluing should show above 80% contact. Drawbar force should meet the machine spec. If either fails, schedule maintenance before the next high-speed run.
- 8Re-level and warm upConfirm level within 0.02 mm per meter. Warm both spindles for 15 minutes at 25–50% max rpm. Run a test cut and confirm surface finish at Ra 0.8–1.6 μm.
Questions we hear from engineers
Does a twin-spindle center chatter more than a single-spindle machine?
It can, because two spindles share one bed. When both cut at once, the frame sees two excitation sources. A cut that is stable alone may go unstable when the second spindle is loaded.
The fix is usually to separate the two processes. Run roughing on one spindle while the other finishes, and avoid synchronized heavy cuts at the same frequency.
What vibration level is acceptable during high speed machining?
We aim for below 1 mm/s RMS at the spindle nose. Between 1 and 3 mm/s you will often see surface marks. Above 3 mm/s the insert life drops fast.
Measure at the spindle nose, not on the table. Table readings miss the tool-side motion that actually prints on the part.
Can I fix chatter by changing only the feed rate?
Rarely. Feed rate changes chip thickness, which affects regeneration, but it does not change the machine's natural frequency or the tool overhang.
If you only have one knob to turn, change spindle speed by 5–10% first. That moves you off the dominant lobe.
When is chatter a tool problem and when is it a machine problem?
If the vibration peak moves when you change rpm, it is tool or process. If the peak stays at the same frequency regardless of rpm, it is a bearing, belt, or foundation issue.
That single test saves a lot of time. We run it before we touch a single offset.
Does coolant pressure really reduce vibration?
Yes, when chip recutting is the driver. Recut chips change the effective chip load and can push a stable cut into chatter.
Through-spindle coolant at 70 bar clears chips from deep pockets. On 6061 and 7075 it is often the cheapest fix available.
How do you handle chatter on a part with a very thin wall?
Support the wall instead of clamping harder. Low-melt alloy fill, a sacrificial plug, or a tuned damper all add stiffness without distorting the part.
Then reduce radial depth of cut to 10–25% of diameter and raise feed per tooth to keep the removal rate.
