Most guides that explain how to program CNC machines PDF style start with the same block of theory: the machine reads a text file of commands, one block per line, and each block tells the control where to move, how fast, and with which tool. That part is easy to read and easy to forget. The useful half of any guide is the part that tells you which numbers belong in those blocks.

A good reference covers five areas in order. Coordinate systems and work offsets. G-code groups and modal behavior. Tool length and diameter compensation. Cutting parameters for common materials. Canned cycles for drilling, tapping, and boring. If a PDF skips work offsets or treats them as an afterthought, put it down. Almost every first-part crash traces back to a wrong offset or a wrong tool length.

You also want the guide to name the control it was written for. Fanuc, Haas, Siemens, and Heidenhain share the core G-codes but differ on cycles, subprograms, and how they handle cutter compensation. Copying a cycle from a Fanuc PDF into a Siemens control will either alarm out or, worse, run a different motion than you intended.

Keep the PDF open next to your CAM software while you work. It is a lookup table for syntax and a sanity check for parameters. It is not a substitute for the setup sheet, the drawing, or the inspection plan.

• 1
  Coordinate systemsG54 to G59 offsets, machine zero, and how part zero is set.
• 2
  Modal groupsWhich codes stay active until changed, and which cancel each other.
• 3
  CompensationG41/G42 for cutter radius, G43 for tool length.
• 4
  CyclesG81 to G89 for drilling, tapping, boring, and pecking.

Every program follows the same skeleton, whatever the part. A safety block cancels compensation and fixed cycles, sets absolute positioning, and selects the plane. Then a tool change, a spindle start, and a rapid to the first position. Then the cutting moves. Then a retract, a coolant off, and an end block that returns the machine home.

The safety block is the one people skip. It should cancel cutter compensation (G40), cancel tool length compensation (G49), cancel any active cycle (G80), set absolute mode (G90), and select the XY plane (G17). Five words that prevent a class of crashes. Put them at the top of every program and at the start of every tool section.

Sequence numbers are optional on modern controls but useful on older ones and in long programs where you need to restart mid-file. Line numbers also make it easier to point at a specific block when you are debugging with a machinist standing at the control.

Comments cost nothing. A short note before each tool section, naming the tool, the operation, and the feature, turns a 900-line file into something a second person can read at 2 a.m. If your post processor strips comments, turn that off.

• 1
  HeaderProgram number, safety block, work offset, tool call.
• 2
  BodyPositioning moves, cutting moves, compensation on and off.
• 3
  FooterSpindle stop, coolant off, retract, program end.

The PDF gives you formulas. The machine gives you the result. Surface speed (Vc) in meters per minute and feed per tooth (fz) in millimeters drive everything else. Spindle speed comes from Vc and tool diameter. Feed rate comes from spindle speed, tooth count, and chip load. Learn those two formulas and you can set up any material in the list.

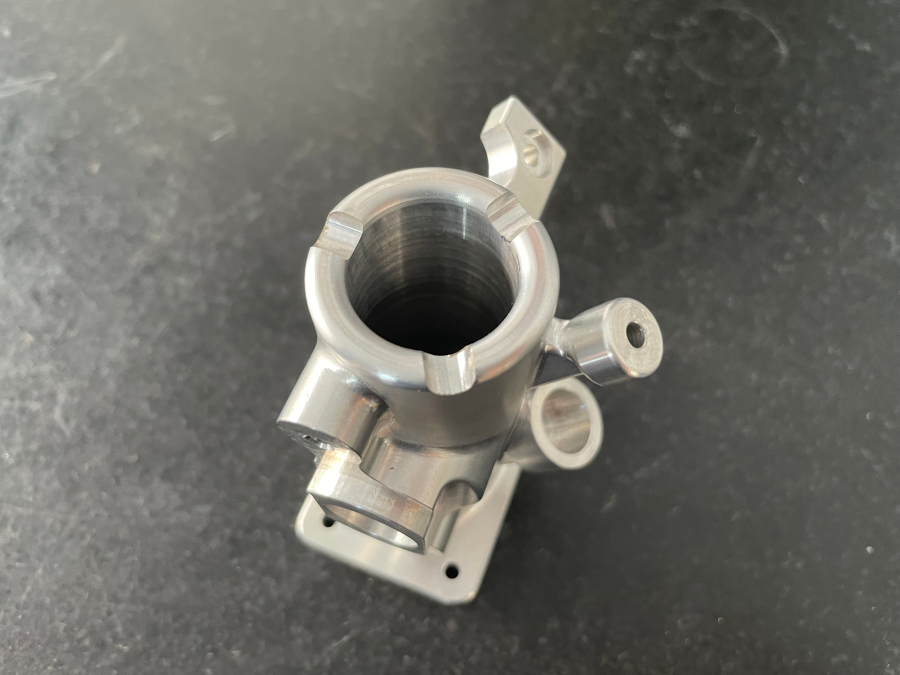

For aluminum on a 3-axis mill, a starting range of 300 to 500 m/min surface speed with a 0.05 to 0.15 mm chip load per tooth works for carbide tooling with coolant. For 304 stainless, drop to 120 to 180 m/min and keep the chip load at 0.03 to 0.08 mm so the tool cuts instead of rubbing. Titanium Ti-6Al-4V runs slower still, 40 to 60 m/min, with heavier coolant and no dwell in the cut.

Depth of cut depends on rigidity more than on the material. A light finishing pass at 0.2 to 0.5 mm radial engagement holds Ra 0.8–1.6 μm on most aluminum parts. Roughing with a 12 mm end mill on a 5-axis center can take 3 to 6 mm axial depth if the setup is solid and the tool has the flute length. If the machine chatters, reduce radial engagement before you reduce feed.

These are starting points, not settings. Every spindle, holder, and fixture changes the answer. Write your proven values on the setup sheet and keep them. The next job with the same material and tool should not start from scratch.

• 1
  Check the holderA long holder loses rigidity before the tool does.
• 2
  Watch the chipThin, blue chips mean heat in the cut. Fine dust means rubbing.
• 3
  Log the resultRecord what worked so the next run starts ahead.

The program assumes the control knows where the part is and how long each tool is. Both come from setup, not from code. Set the work offset by touching the datum face and edge, then store it in G54. Set tool length with a presetter or by touching off on a known surface, and store it in the tool offset page. A 0.1 mm error in tool length is a 0.1 mm error in every Z move that follows.

Diameter compensation deserves its own note. G41 and G42 shift the tool path by the radius stored in the offset table, so you can program the part profile instead of the tool centerline. Turn compensation on with a lead-in move longer than the tool radius, and turn it off with a lead-out move of the same length. Turning it on in a tight corner is a common cause of gouges.

Before the first cut, dry-run the program with the tool 25 mm above the stock. Watch the position display, not the tool. If a rapid move goes somewhere you did not expect, stop and read the block. Then run the first part with the feed override at 25% and the rapid override at 25%, and listen.

For a first article, measure the features the drawing calls out before you run the second part. If the offset is off by 0.05 mm, correct it now. Running ten parts to find out that the first ten are out of tolerance is expensive.

• 1
  Touch off, do not guessUse a probe or an edge finder with a known diameter.
• 2
  One offset per setupKeep G54 for the main datum. Use G55 and G56 for second operations.
• 3
  Check the first Z moveIt is the move most likely to crash.

A PDF teaches syntax and standard practice. It cannot see your part. Thin walls, deep pockets, and unsupported features need judgment that comes from cutting similar geometry before. If the wall is under 1 mm thick and 20 mm tall, no formula in the guide tells you how to hold it without chatter. You slow down, support it, or change the process.

Five-axis work is another limit. Hand-writing simultaneous 5-axis code is possible and rarely wise. Tool axis control, singularity handling, and post-processor accuracy are CAM problems. Use the PDF for the G-code that comes out of the post, not for the path itself.

Hard materials change the rules too. Inconel and hardened tool steel wear tools fast, and the guide's default parameters will burn an edge in minutes. Start conservatively, watch the load meter, and change the insert before the finish suffers.

The honest version: the PDF gets you to a program. The machine, the fixture, and the first article get you to a good part.

• 1
  Thin featuresSupport them or expect deflection and chatter.
• 2
  Simultaneous 5-axisUse CAM. Keep the post accurate and verified.
• 3
  Hard alloysReduce speed, increase coolant, change tools early.
