A sensor bracket does two jobs at once. It carries the mass and vibration load of a camera, IMU or LiDAR puck, and it fixes the sensor's optical or inertial axis relative to the robot's joints. The first job is structural. The second is metrological. Most manufacturing problems show up in the second job, because a bracket can feel rigid in your hand and still put the sensor a few tenths of a degree off.

Consider a depth camera mounted 200 mm from a wrist joint. If the bracket tilts the camera by 0.1°, the pointing error at 5 m is roughly 9 mm. That offset lands in the calibration model as a fixed bias. If the bias is stable, software can subtract it. If it changes with temperature or after a drop, sensor fusion starts fighting itself and the robot sees a world that drifts.

So the target is not maximum stiffness. It is predictable geometry: tight hole-to-datum position, flat mounting faces, and a material that does not move much between 0 °C and 45 °C. Sensor brackets cnc milling is the usual route to that geometry because milling removes material from solid stock and leaves a single continuous part with no weld seams or bonded joints.

One more thing worth stating early. The bracket is part of a chain. Housing tolerances, fastener fit, and assembly torque all add to the same error budget. Milling to ±0.005 mm does not help if the camera module's own mounting boss is 0.1 mm out of position.

• 1
  Structural roleCarries sensor mass and vibration without fatigue cracking.
• 2
  Metrological roleDefines the sensor axis relative to robot datums.
• 3
  Error budgetBracket error adds to housing, fastener and module error.

Sensor brackets are rarely a simple plate. A typical part has a mounting flange, an angled face that aims the sensor, a cable relief pocket, and one or two thin ribs. Reaching all of those faces on a three-axis machine means three or four fixtures, and each re-clamp introduces a new datum error. On a hard part with tight positions, that stack-up can eat the whole tolerance before the first cut.

A simultaneous five-axis center holds the part once and tilts the tool to the feature. The datum frame stays fixed for the whole cycle, so hole positions and face angles stay consistent with each other. It also lets a short, stiff tool reach into pockets and undercuts that would need long, flexible tooling on a three-axis mill. Short tools chatter less, and less chatter means better surface finish on the sensor seat.

The trade-off is programming and cycle time. Five-axis toolpaths take longer to develop, and some parts genuinely do not need them. A flat bracket with through-holes on two parallel faces runs faster on a three-axis machine with a simple fixture. Use five-axis when the part has angular faces, deep pockets, or several datums that must agree with each other.

For larger brackets we run 4,000 × 400 × 150 mm travels, and the Ø400 mm rotary table covers parts that need continuous rotation. Typical achievable tolerance is ±0.005 mm on critical bores and datums, with fine finishes in the Ra 0.2–0.8 μm range when an optical seat demands it.

• 1
  Use five-axis whenAngled faces, deep pockets, or multiple datums on one part.
• 2
  Use three-axis whenFlat plate geometry with through-holes and open faces.
• 3
  Watch forLong reach tools on deep pockets — they chatter and ruin the seat.

Three numbers decide most material arguments for brackets: density, modulus, and coefficient of thermal expansion. Aluminium 7075 gives the best stiffness per gram of the common alloys and machines cleanly on five-axis centers. Aluminium 6061 is easier to weld and cheaper, but softer, so a thin 6061 rib flexes more under the same load. 2024 sits between them and machines well if you control chips.

Titanium TC4 (Ti-6Al-4V) has roughly half the thermal expansion of aluminium and about 60% more stiffness. For a bracket that aims a LiDAR and must hold bores under heat load, that stability matters. The cost is machinability: titanium work-hardens, runs hot, and needs low cutting speeds with high coolant pressure. Without through-spindle coolant, thin titanium ribs deflect and the bore positions wander.

Carbon fibre and PEEK enter the picture when mass and thermal isolation matter more than cost. Both damp vibration well. Both have limits: carbon fibre is anisotropic, so the bracket's stiffness depends on laminate direction, and machined edges need sealing. PEEK holds geometry at high temperatures but creeps under sustained bolt preload, so bolted joints need spreader washers.

A practical rule: pick aluminium 7075 when mass and cost drive the design, titanium when thermal drift drives it, and stainless 17-4PH when the bracket sits near a hot actuator or needs corrosion resistance. Stainless is heavy, so it usually appears on small internal brackets rather than arm-mounted ones.

• 1
  Aluminium 7075Best stiffness per gram; good chip control on five-axis.
• 2
  Titanium TC4Low thermal drift; needs rigid setup and coolant pressure.
• 3
  Stainless 17-4PHHeat and corrosion resistance at the cost of mass.
• 4
  Carbon fibre / PEEKLow mass, good damping; watch anisotropy and creep.

Bar stock arrives with locked-in stress from rolling or extrusion. When you remove 60% of the material from one side of a plate, that stress redistributes and the part bows. The bow may be 0.02 mm the day it comes off the machine, then grow to 0.05 mm over a week as the part settles. For a bracket holding a sensor, that slow movement is worse than a constant offset because it breaks calibration.

There are three practical controls. First, rough the part leaving 0.3–0.5 mm of stock, then let it rest before finishing. Second, run a stress-relief cycle between roughing and finishing when the material and geometry justify it. Third, balance material removal so both sides of a thin wall see similar cuts. Leaving one side untouched concentrates stress and pulls the part toward the heavy side.

Temperature control during finishing matters too. A spindle and part that warm by 4 °C during a long cycle will measure differently at the end than at the start. In-process probing catches this. Probing the datum frame after roughing and again before the final bore pass lets the machine correct for thermal growth instead of cutting to a stale offset.

The result you are buying is not just a number on a certificate. It is a part that still measures the same after a few thermal cycles in a robot that runs eight hours a day.

• 1
  Rough, rest, finishLeave 0.3–0.5 mm stock and let the part settle before final cuts.
• 2
  Balance removalCut both sides of a thin wall to avoid one-sided pull.
• 3
  Probe in-processRe-check datums before the final bore pass to catch thermal growth.

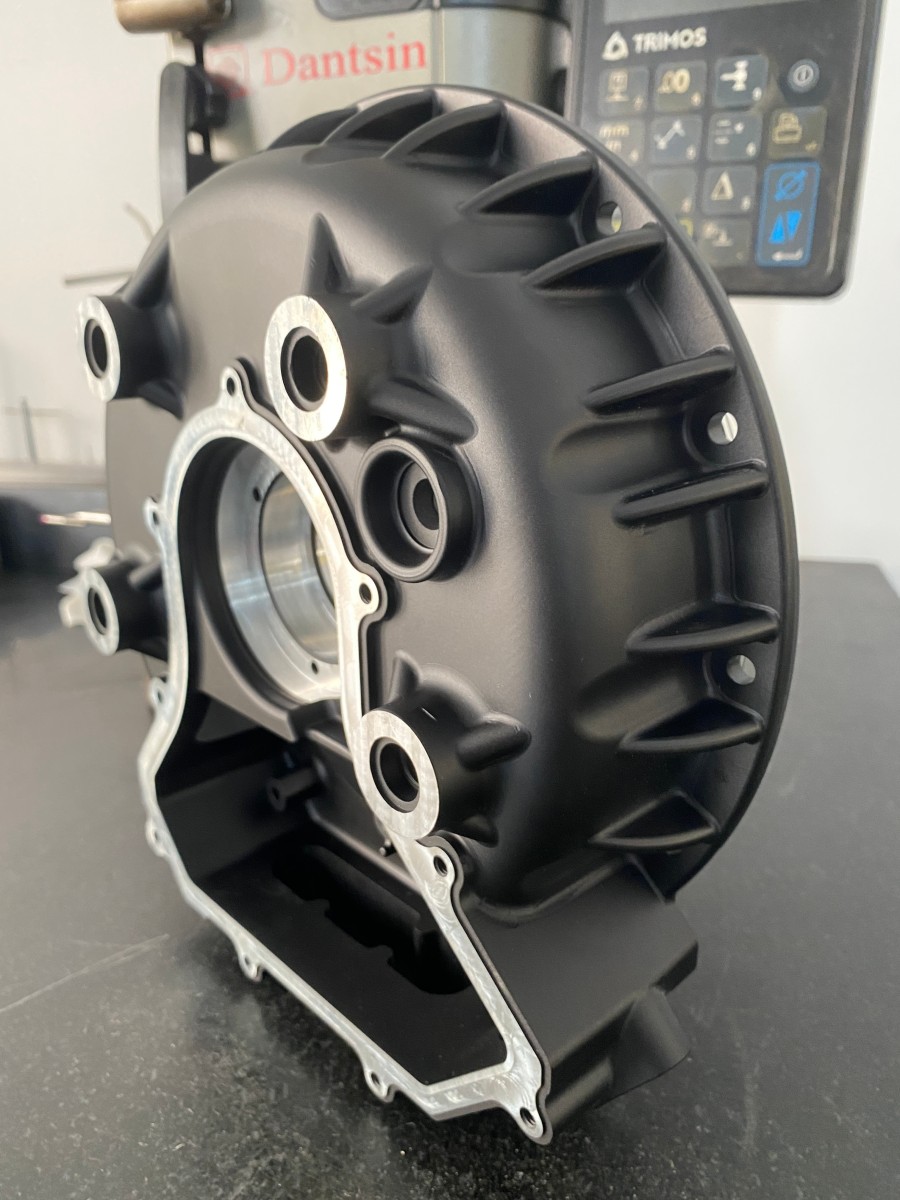

Anodizing adds a hard, wear-resistant layer, but it also adds thickness. Type II clear anodize grows roughly 5–15 μm per surface, which changes a bore by 10–30 μm on diameter. If a sensor dowel pin or bearing seat needs a press fit, mask the bore or plan the pre-anodize dimension accordingly. This is one of the most common assembly surprises on bracket work.

Hardcoat anodize builds a thicker, harder layer and is worth it on rib edges and sliding surfaces. Conductive anodize keeps the bracket electrically grounded, which matters when the sensor housing needs a ground path to the robot chassis. For titanium, bead blasting gives a matte finish and hides tool marks without changing dimensions much.

Where a bracket meets a sensor housing, flatness usually matters more than finish. A machined face flat to 0.01 mm over 40 mm gives the sensor a stable seat. Laser marking for part numbers needs a minimum character height of 1.5 mm to stay legible after anodize, so plan the marking area rather than squeezing text into a corner.

None of this is exotic. It is the normal finishing sequence for aluminium and titanium brackets, and it is worth designing the masking plan at the CAD stage rather than after the first parts come back oversize.

• 1
  Anodize growthPlan 5–15 μm per surface on Type II clear anodize.
• 2
  Flatness over finishA sensor seat needs 0.01 mm flatness more than a mirror polish.
• 3
  Marking spaceLaser text needs 1.5 mm minimum character height.

Milling is subtractive, so it cannot make a closed hollow shell in one piece. If your bracket design calls for an internal cavity that improves stiffness without adding mass, a milled part either stays solid or gets split into bolted halves. Bolted halves bring back the datum stack-up you were avoiding. For those shapes, die casting or additive manufacturing may fit better, with milling used afterward for the critical seats.

Thin walls are another boundary. Aluminium walls below about 0.8 mm deflect under cutting force and are hard to measure reliably. Titanium walls below 1.5 mm are worse. If a design needs 0.5 mm ribs for mass, expect to scrap a few parts during process development, or redesign the rib as a machined slot pattern.

Very deep, narrow pockets also push the limit. A pocket 60 mm deep and 5 mm wide needs a long, slender tool. Chatter marks on the sensor seat are the usual symptom. Widening the pocket, adding a corner radius, or splitting the feature into a machined insert solves it more cheaply than fighting the toolpath.

None of these limits rule out milling. They just mean the drawing should be reviewed against the process before the first chips fly, not after.

• 1
  Closed hollow shellsUse casting or additive for the shell, mill the critical seats.
• 2
  Ultra-thin wallsBelow 0.8 mm aluminium, expect deflection and scrap.
• 3
  Deep narrow pocketsWiden or add radius; long tools chatter and mark the seat.
