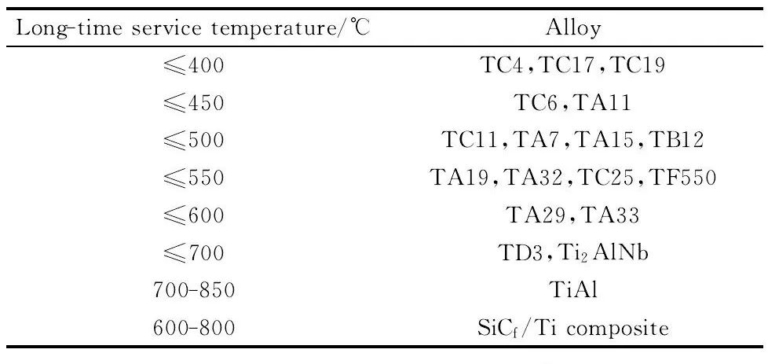

  Titanium alloy materials at high temperature: family comparison

Compressor discharge temperature sets the ceiling on how much air an engine core can push. Aluminium alloys soften long before that ceiling is reached, and nickel superalloys are dense enough that a fan hub or a compressor disc made from them costs weight everywhere downstream. Titanium sits in the middle: about 60 percent of the density of steel, roughly twice the specific strength, and usable strength that holds up to several hundred degrees.

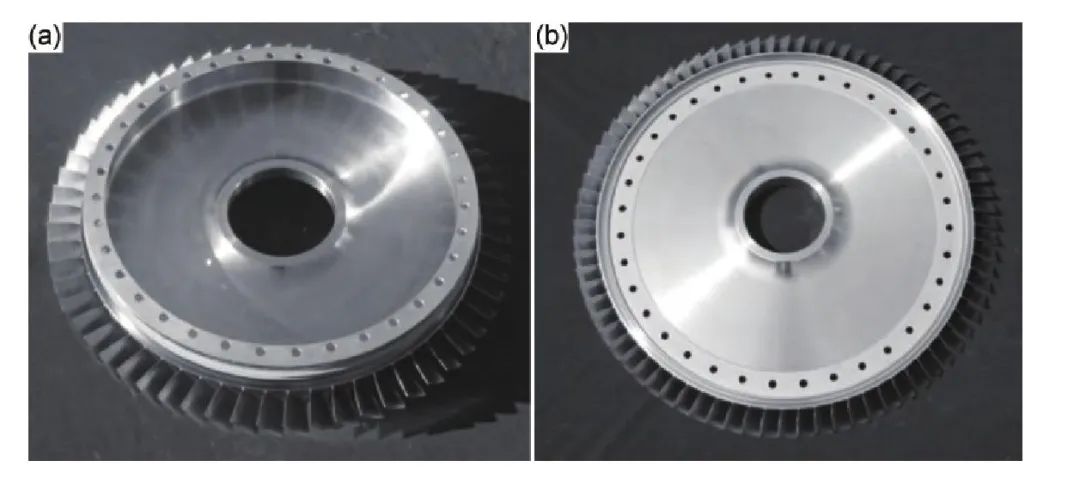

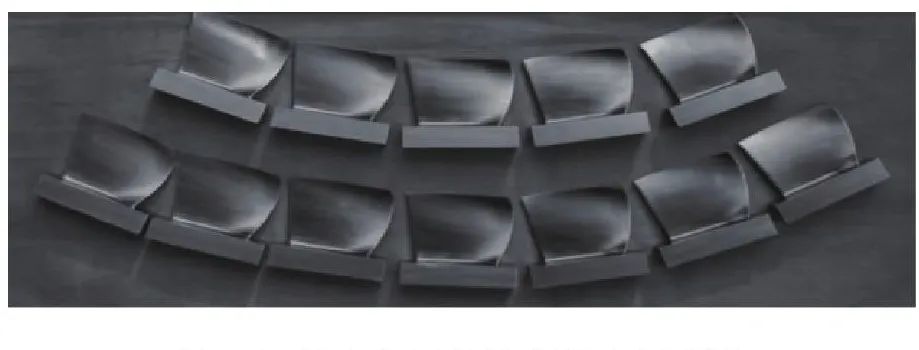

Titanium also resists the salt and moisture that a marine or coastal engine sees. That combination is why titanium alloy materials at high temperature became the default for fan blades, compressor discs and the first stages of the high-pressure compressor.

The catch is oxygen. Above roughly 600 °C titanium pulls oxygen into its surface and forms a hard, brittle alpha case. That layer cracks under cyclic load. Every temperature limit in this article traces back to that reaction, and to the creep that follows it.

Commercially pure grades TA1 and TA2 are soft, weldable and cheap. They have no place in a hot compressor stage. Strength comes from aluminium and vanadium additions that stabilise the alpha and beta phases, and the ratio between those phases decides how the alloy behaves under load and heat.

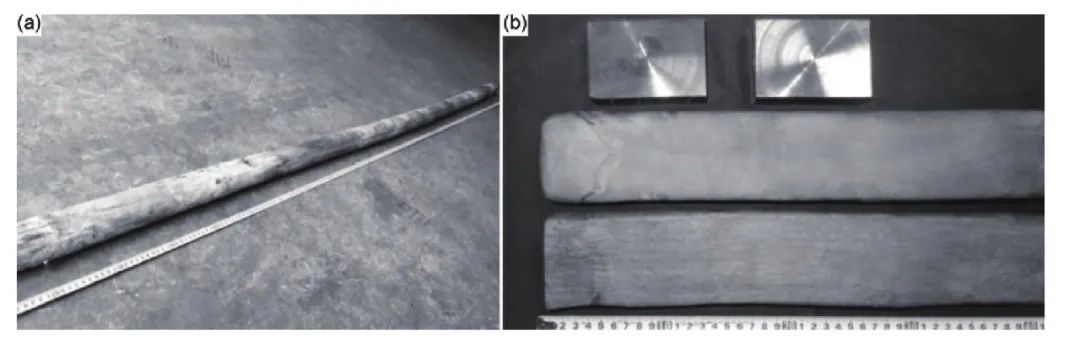

Ti-6Al-4V, also written TC4, is the workhorse. It is an alpha-beta alloy with a service ceiling around 400 °C. It machines predictably, welds with care, and is available in bar, plate and forging stock. Most aero engine brackets, housings and intermediate compressor parts in titanium are Ti-6Al-4V.

Near-alpha alloys such as Ti-6242 and IMI 834 push the ceiling toward 550-600 °C. They trade some room-temperature ductility for creep resistance, which matters on a disc that spins for thousands of hours at temperature. They are also harder to forge and harder to machine. Expect more tool wear and tighter process windows.

Beta alloys like Ti-10V-2Fe-3Al go the other way. They offer high strength and deep hardenability at lower temperatures, which suits landing gear and large structural forgings rather than hot section parts.

Creep comes before melting, and it comes quietly. A disc held at 500 °C under centrifugal load keeps stretching by fractions of a percent per thousand hours. The part does not crack; it grows until tip clearance opens and efficiency drops. Near-alpha alloys exist mainly to slow that growth.

Oxidation is the second limit. The alpha case that forms above 600 °C is hard enough to initiate cracks at the surface, and it is not visible after machining unless you etch. On a part that sees thermal cycling, that surface layer is where fatigue cracks start.

Thermal fatigue is the third. Thin walls and sharp internal corners see the largest temperature gradients during a takeoff cycle. A generous fillet and a uniform wall do more for life than a small alloy upgrade does.

Fretting at dovetail and bolted joints is often overlooked. Titanium has poor galling resistance against itself, and a joint that moves a few micrometres per cycle at temperature will wear through a coating in service.

Titanium conducts heat about a third as well as steel, so cutting heat stays in the edge. That single fact drives most of the rules: lower surface speed, higher feed per tooth, plenty of coolant delivered under pressure, and no dwelling in the cut. Rubbing work-hardens the surface and the next pass cuts through a harder skin.

Rigidity matters more than spindle speed. A thin-walled compressor housing will deflect under clamping force and spring back after unclamping, so we plan support before the first cut. On a 5-axis machine with a Ø400 mm rotary table, we can hold position on the part rather than reset it four times.

Tool selection is straightforward in principle. Uncoated or AlTiN carbide, sharp edges, positive rake. Replace on flank wear rather than on chipping. A worn edge raises cutting temperature and can push the surface above the alpha case threshold in a bad case.

We hold ±0.005 mm on titanium parts and keep 100 percent inspection before shipment, with raw material certificates checked on receipt. Surface finish for sealing faces runs Ra 0.8-1.6 μm, and Ra 0.2-0.8 μm when a seal or bearing fit calls for it.

Keep walls uniform. A 1.5 mm wall next to a 4 mm boss creates a thermal gradient every cycle, and the thin side goes into compression first. If the load path does not need the boss, remove it.

Put radius where the stress is. Internal corners in titanium are notch-sensitive, and a 0.5 mm corner radius is a crack starter on a part that cycles. Specify the largest fillet the assembly allows and state it on the drawing.

Do not over-specify finish. A polished surface on a hot compressor part can be worse than an as-machined one because it hides the alpha case that should be removed. Call out Ra 1.6-3.2 μm where it is enough, and reserve fine finishes for sealing faces.

Think about inspection access when you dimension. A CMM cannot reach a bore that a 5-axis tool reached with a long reach holder. If the drawing needs a true position callout, make sure the feature is reachable from a probe direction.
