A Blade Slotting Machine and Automated Process Management

• 1
  What a blade slotting machine actually does
• 2
  What automated management really controls
• 3
  When automated slotting pays off and when it does not
• 4
  Tolerances, inspection and the limits of the process
• 5
  The slot is only the start: heat treat, grind and finish
• 6
  Manual vs semi-automatic vs fully automated slotting

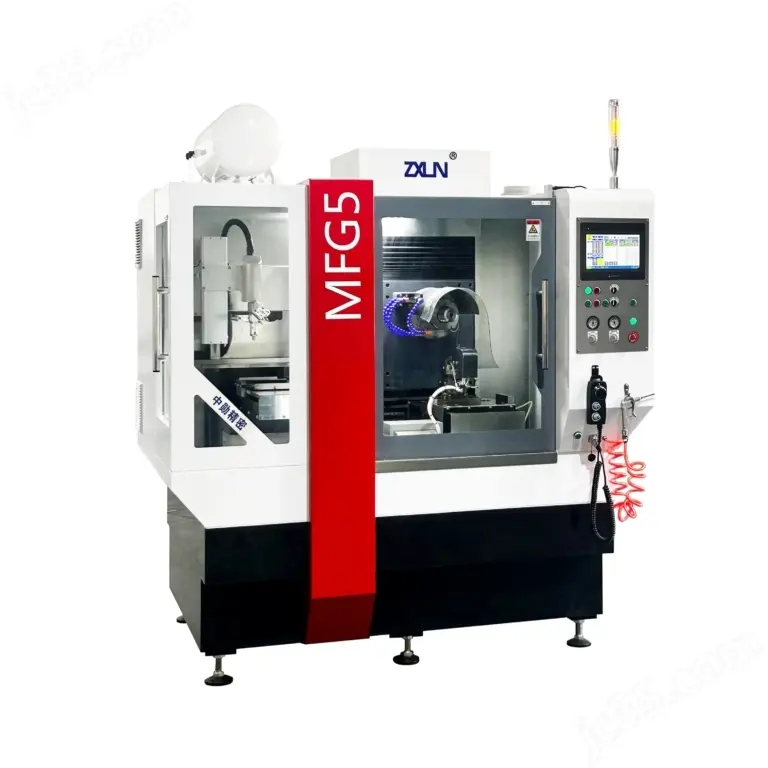

A blade slotting machine cuts narrow slots along a blade body: gullet pockets on saw blades, chip-breaker grooves on slitting knives, or relief slots on grooving tools. The cutting head indexes from slot to slot, and the slot pitch, depth and width are set by program rather than by a hand-wheel. That is the whole point of the machine. It turns a hand-fitted operation into a repeatable one.

The cutting action itself is simple. A rotating or reciprocating tool removes material along one axis, then the work indexes. On a saw blade, the gullet must clear chips and hold coolant. On a slitting knife, the slot relieves stress and sets the tooth geometry. On a grooving insert, the slot controls chip flow. Different jobs, same kinematic idea: a defined path, a defined depth, a defined number of repeats.

The machine does not decide any of those values. It executes them. Slot count, pitch, depth and entry angle all come from the drawing. If the drawing is wrong, the machine will happily produce 240 wrong slots. This is why the first engineering conversation is always about the slot geometry, not the machine model.

• 1
  Slot pitchSpacing between adjacent slots; drives tooth count and balance.
• 2
  Slot depthControls chip clearance and blade stiffness. Too deep, and the body weakens.
• 3
  Slot widthSet by tool diameter or grinding wheel thickness.
• 4
  Indexing accuracyAccumulated error across a full blade circumference.

Automated management on a blade slotting machine covers four loops: part loading, slot indexing, tool wear compensation, and data logging. Loading can be a robot, a pallet changer or a magazine feeder. Indexing is a servo-driven rotary table or a linear axis with a position encoder. Wear compensation adjusts depth as the tool wears. Logging records the actual parameters used on each part.

The value is not speed. It is traceability. If a batch of 500 slitting knives ships and one fails, the log tells you which tool cut it, at what depth, on which date. Without logging, you are guessing. With logging, you can narrow the cause in minutes. For aerospace and medical tooling, that traceability is often the main reason to automate at all.

There is a real cost to this. Automated loading needs consistent blank geometry. If incoming blanks vary by 0.3 mm in thickness or have a burr on the locating edge, the gripper will fault, or worse, load the part at a slight tilt and cut a slot off-center. Automation is unforgiving about input variation. Manual loading hides that variation; automated loading exposes it.

• 1
  Loading loopRobot, pallet changer or magazine. Needs consistent blanks.
• 2
  Indexing loopServo table or linear axis with encoder feedback.
• 3
  Wear loopDepth offset applied as tool diameter drops.
• 4
  Data loopPer-part parameter log for traceability.

Automated loading earns its keep when you run the same blade geometry in runs of a few hundred or more, and when the blank is stable. A 300 mm circular saw blade with 120 gullets is a good candidate. The setup is long, the cycle is short, and the repeat count is high. The machine pays back the setup in the first hour of unattended running.

It does not fit when geometry changes every few parts. If your shop cuts ten different gullet profiles per shift, the changeover eats the automation gain. A manual or semi-automatic machine with quick-change fixturing will outrun a fully automated cell on that kind of work. Automation rewards repetition. It punishes variety.

There is also a size boundary. Long slitting blades or band-saw bodies can exceed the work envelope. On our own equipment, the largest travel is 4,000 × 400 × 150 mm, which covers long blade bodies, but a dedicated blade slotting machine has its own envelope. Check the actual travel against your longest part before quoting a machine.

Material matters too. Aluminum and mild steel slot cleanly. 17-4PH, Inconel and hardened tool steel above 45 HRC push tool wear hard, and the wear compensation loop has to work harder. On those materials, expect shorter tool life and more frequent depth offsets.

• 1
  Good fitHigh repeat count, stable blank, one or two profiles per batch.
• 2
  Poor fitConstant profile changes, loose blank tolerances, short runs.
• 3
  Hard materials17-4PH, Inconel, tool steel above 45 HRC wear tools faster.

Slot position is the tightest call on most blade drawings. Pitch error accumulates around the circumference, so a 0.02 mm error per slot becomes 2.4 mm over 120 slots. That is why the index table, not the cutting tool, usually sets the achievable tolerance. On a well-maintained machine with encoder feedback, per-slot position can hold within ±0.005 mm on a 300 mm blade.

Depth and width tolerances are looser in most cases. Depth typically holds within ±0.02 mm, width within ±0.01 mm, because width is set by the tool and only drifts with wear. Surface finish inside the slot usually lands between Ra 0.8 and 1.6 μm after a finishing pass. A rougher slot is fine for chip clearance but not for a sliding fit.

Inspection is where a lot of shops get lazy. Slot depth can be checked with a depth micrometer, but pitch is best checked on a CMM or an optical comparator across a full pitch circle. Checking three slots and assuming the rest are good is how a bad blade ships. On our blade and tooling work, inspection is 100% before shipment, with reports available on request.

There are hard limits. Slot width below about 1 mm needs a very small tool, and small tools deflect. Deep, narrow slots are the hardest combination. If your slot is 1.5 mm wide and 25 mm deep, expect to rough, semi-finish and finish in separate passes, and expect the tool to break if the chip cannot clear.

• 1
  Position±0.005 mm per slot on a 300 mm blade, with encoder feedback.
• 2
  DepthTypically ±0.02 mm, adjusted for tool wear.
• 3
  WidthTypically ±0.01 mm, set by tool geometry.
• 4
  FinishRa 0.8–1.6 μm inside the slot after finishing.

A slotted blade is a semi-finished part. Most blades then go to heat treatment, which moves the slot geometry. A 300 mm steel blade can grow or warp by 0.1 mm or more through hardening. If the slots are cut to final size before heat treat, they will not be to final size afterward. The usual fix is to leave grinding stock and finish the slot after hardening.

For hardened blades above 45 HRC, grinding or EDM replaces milling for the finishing pass. That changes the automation picture. A slotting machine that cuts soft steel cannot finish a hardened blade. The workflow becomes cut, harden, then finish on a grinder or wire EDM. Plan the sequence before you buy capacity.

Surface treatment comes last. Anodizing on aluminum blades adds a few micrometers and can round the slot edge. Black oxide on steel is thinner but still changes the fit slightly. If the slot is a locating feature, mask it. If it is a chip clearance feature, do not bother.

Deburring is the step most often skipped and most often complained about later. A slot leaves a burr on both edges. On a saw blade, that burr throws off balance. On a slitting knife, it scores the material being cut. Deburr before heat treat if the burr is heavy, and after hardening if the burr is light.

• 1
  Heat treatExpect 0.1 mm or more of movement on a 300 mm steel blade.
• 2
  Hardened finishingAbove 45 HRC, grinding or wire EDM replaces milling.
• 3
  CoatingAnodizing adds micrometers; mask locating slots.
• 4
  DeburringHeavy burrs before heat treat, light burrs after.
