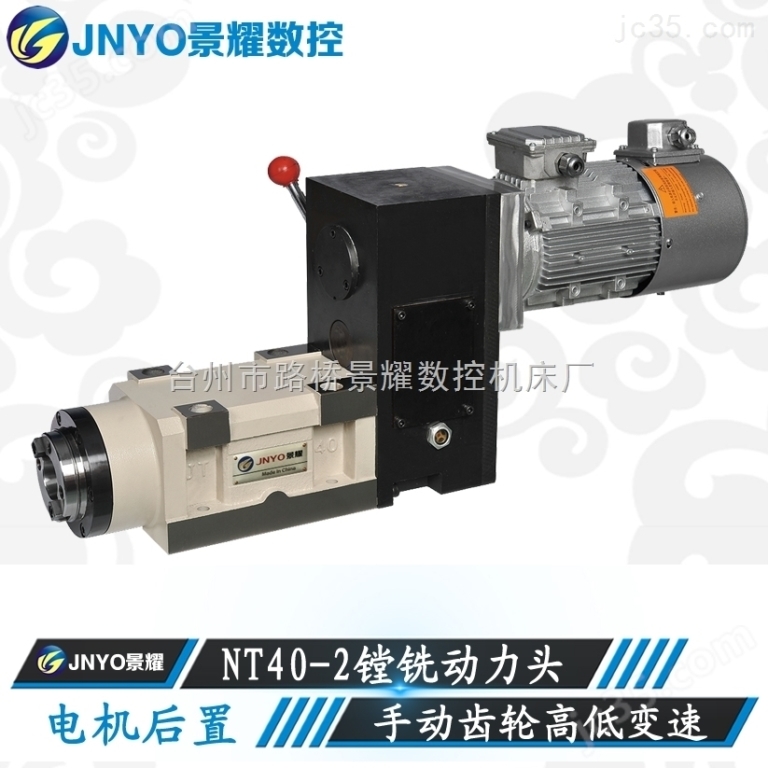

The power head of the machine tool sits between the spindle motor and the cutting tool. Its job sounds simple: take high-speed rotation, hold it on a fixed axis, and deliver it to the cutting edge without losing position. In practice that chain is where most machine error is born.

Power flows in a fixed order. The motor produces torque. A coupling or belt carries it to the spindle shaft. Bearings hold the shaft. The tool holder clamps the cutter. Any weak link in that chain shows up as runout, heat or chatter at the tool tip.

A power head is not just a spinning shaft. On a machining center it may also index, tilt or turn the tool. That adds a gear set, a worm drive or a direct-drive torque motor. Each added stage costs stiffness and adds a heat source.

For a process engineer, the power head sets the ceiling on what the machine can cut. Spindle taper, bearing type and drive layout decide whether you can take a 6 mm depth of cut in 4140 steel or only a light finishing pass in aluminium.

The spindle shaft is usually alloy steel, hardened and ground. Its front end carries the taper. Common tapers are BT30, BT40, HSK-A63 and Capto. The taper must mate with the holder at high contact ratio, or the tool will move under load.

Bearings do the real work. Angular contact pairs handle combined radial and axial load. Ceramic hybrid bearings run cooler at high speed. Preload matters more than brand. Too little preload and the shaft floats; too much and the bearings overheat in minutes.

Drive layout splits into three families. Belt drive isolates motor heat and is cheap, but it stretches and slips. Direct drive couples the motor to the shaft with near-zero backlash. Built-in motor spindles put the rotor on the shaft itself for the highest speed and the least vibration.

Lubrication is a design decision, not an afterthought. Grease-for-life suits moderate speed and low maintenance. Oil-air lubrication feeds a measured mist to each bearing and is standard above roughly 12,000 rpm. Oil mist carries heat away and keeps the preload stable.

Radial runout at the taper is the number that matters. A 0.005 mm runout becomes a 0.005 mm error on every feature cut with that tool. On a Ø10 mm end mill, that same runout makes one flute do most of the cutting, so tool life drops fast.

Thermal growth is the quiet error. A spindle running at 15,000 rpm can grow 20–40 μm along Z within the first 30 minutes. Warm-up cycles and thermal compensation exist for this reason. Skip them and the first part of the shift runs different from the rest.

Stiffness decides chatter. A long, thin power head with a belt drive has low dynamic stiffness at the tool tip. It will sing in deep pockets. A short, direct-drive head with a rigid taper cuts quietly at the same parameters.

Surface finish follows the same logic. For a target of Ra 0.8–1.6 μm on aluminium, a balanced head and a clean taper usually get you there. For Ra 0.2–0.8 μm, you also need a low-runout holder and a stable thermal state.

Speed has a hard limit set by bearing DN value and lubrication. Above roughly 15,000 rpm, grease is usually out and oil-air is in. Above 40,000 rpm, you are in built-in motor territory with active cooling.

Torque has the opposite limit. A small high-speed head cannot drive a Ø50 mm face mill in steel. If the part needs high torque at low speed, a geared head or a mill-turn center with a larger taper is the better fit.

Multi-axis motion adds a third limit. A tilting head with a worm drive loses accuracy as the worm wears. Direct-drive rotary tables avoid that wear but cost more and need careful cooling.

The honest answer is that no single power head covers all work. Shops running both fine finishing and heavy roughing usually keep two machine types rather than compromise one head.

Check taper runout on a schedule. A dial indicator on a clean test bar tells you more than any vibration sensor. Record the number each month. A slow upward trend means bearings are moving.

Keep the taper clean and dry. Chips and coolant film cause more runout than bearing wear in most shops. Wipe the taper before every tool change and inspect holders for fretting.

Watch lubrication. Oil-air systems need a steady feed and a clear nozzle. A blocked line cooks a bearing in one shift. Grease-packed heads should be serviced at the interval the builder sets, not when they start to whine.

Finally, control thermal state. Run the warm-up cycle the builder specifies. If the machine sits idle for hours, run it again before critical work. A stable head holds tolerance; a cold one does not.
