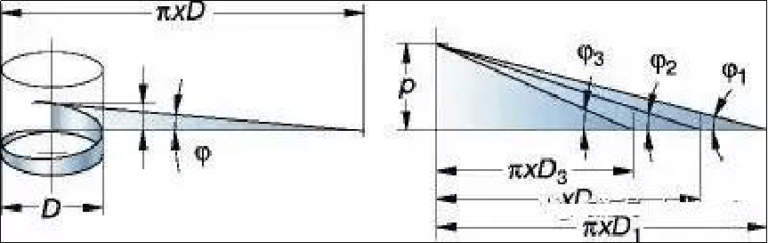

A thread is a helix with a defined profile. Three numbers describe almost everything about it: pitch, pitch diameter, and minor diameter. The thread calculation formula is simply the set of relationships between those numbers, the flank angle, and the material you are cutting.

For a 60° thread, the basic height H of the sharp triangle is 0.866025 × P, where P is the pitch in millimeters. The basic depth of the external thread is 0.61343 × P, and the basic depth of the internal thread is 0.54127 × P. Those two constants are the ones most people write down wrong.

The pitch diameter sits halfway between the major and minor diameters on a symmetric thread. For an external thread, the basic pitch diameter is D − 0.64952 × P. For an internal thread it is D − 0.64952 × P as well, using the nominal major diameter D.

None of these numbers include tolerances. They are the theoretical sharp values. A real thread is always cut slightly off the basic size, and that is why class and grade designations exist.

On a lathe, you cut the outside diameter first, then feed the tool to depth. The outside diameter is usually turned slightly under nominal. For a 60° external thread, the major diameter can run 0.05–0.13 mm under nominal and still pass a ring gage in most classes.

The single-point tool creates the pitch diameter and the minor diameter in the same pass. The formula gives you the infeed depth: radial infeed of 0.61343 × P for a full external thread. Most machinists use a compound at 29–30° instead of straight radial infeed, which reduces the chip load on one flank.

The minor diameter of an external thread is D − 1.22687 × P. That number matters when you are threading close to a shoulder, because the tool nose relief has to fit inside it. If the relief is larger than the minor diameter, the thread will tear at the root.

For an internal thread, the minor diameter is D − 1.08253 × P. That is the hole the boring bar has to open up to before the thread tool enters. It is also the number that controls how much material remains at the crest.

The common shop formula for a 60° thread is tap drill = major diameter − pitch. It is fast and it works for most metric and unified threads in ductile materials. A M8 × 1.25 thread gets a 6.75 mm drill, and the nearest standard size is 6.8 mm.

That shortcut is a 75% thread. If you need more thread engagement, go to 70% or 65% and the drill gets smaller. The trade-off is tap torque. Harder materials, deeper holes or small taps will break if you push the engagement too high.

The exact 100% thread minor diameter is D − 1.08253 × P. For M8 × 1.25 that is 6.647 mm. Nobody drills that size because the tap would need excessive torque. The practical band runs from about 65% to 80% of full thread depth.

Form taps are different. They displace material instead of cutting it, so the starting hole is larger than the cut-tap drill. A good starting point for a form tap is the pitch diameter minus half the pitch, then adjust by trial on the first part.

The formula assumes a symmetric 60° thread with a sharp root. Real threads have a root radius, a truncated crest, and a defined tolerance band. On a 2A external thread the pitch diameter allowance is negative, so the basic number is not the number you measure.

Tapered threads are the clearest failure case. NPT and BSPT threads are cut on a 1:16 taper, so the pitch diameter changes along the length. A single pitch diameter value only applies at one plane on the gage. You need the gage plane and the hand-tight engagement to check them.

Multi-start threads break the formula differently. Two starts at 2 mm lead and 1 mm pitch have the same pitch diameter as a single-start 1 mm thread, but the lead is double. Feed rate and thread depth both change, and the formula for lead angle is different.

Plastic and soft materials also shift the numbers. Threads in POM, PEEK or ABS deform under the cutting tool, so the measured pitch diameter comes out larger than the formula predicts. Add a spring pass or use a forming tool.

Class 1A/1B is a loose fit for fast assembly and dirty environments. Class 2A/2B is the general-purpose band and covers most machined parts. Class 3A/3B is a close fit for high-strength fasteners and precision assemblies. The higher the class, the tighter the pitch diameter band.

Thread engagement length matters more than most drawings suggest. A steel bolt in an aluminum part needs roughly 2 × D of engagement. A steel bolt in a steel part needs about 1 × D. Going beyond 1.5 × D adds little strength and increases tap breakage risk.

For thin-wall parts, check the minor diameter against the wall thickness. If the remaining wall is under 0.8 mm, the thread will distort during cutting and the pitch diameter will drift out of tolerance.

On parts with a thread-to-shoulder callout, leave at least 1.5 × P of unthreaded relief. The tool needs that space, and the formula does not account for it.
