Vertical CNC Machining Services: What to Check Before You Order

• 1
  Key takeaways
• 2
  Which machine class fits your part
• 3
  What vertical CNC machining services can and cannot hold
• 4
  3-axis or 4-axis: the choice that moves your price most
• 5
  How to read tolerance and surface finish claims
• 6
  Buyer checks before you place a vertical CNC order
• 7
  Step by step: from RFQ to first article

A vertical machining center puts the spindle above the table. The tool spins on a vertical axis and feeds down in Z, while the table moves in X and Y. Gravity helps here: chips drop away from the cut instead of piling on it, and the operator can watch the tool engage. That single fact drives most of the cost and quality differences you will see between quotes.

The trade-off is reach. A vertical spindle has to clear the part to cut its side walls, so tall parts and deep side pockets need long tools. Long tools deflect. On a 3-axis machine, a tool with 6:1 length-to-diameter ratio will push walls out of tolerance before the spindle runs out of power. If your part has walls taller than 100 mm with a ±0.02 mm flatness callout, expect the shop to slow down or add a setup.

Fixturing is the other half of the decision. VMC tables accept modular vises, vacuum chucks and custom plates, and most shops build those in-house. A part that clamps flat on one face and machines in one setup is the cheapest thing you can send to a vertical machine. A part that needs four sides machined usually is not.

• 1

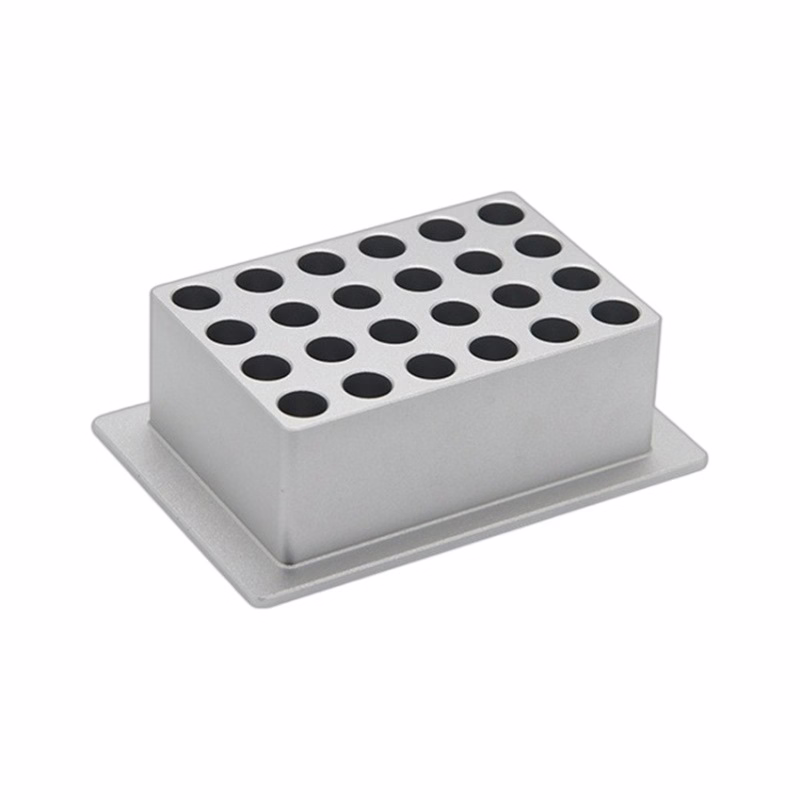

  Good fitPlates, housings, brackets, manifolds, covers, mold inserts
• 2
  Workable with careTall thin walls, deep pockets, thin floors
• 3
  Usually wrong machineLong shafts, large-diameter rings, parts with features on five sides

Every extra axis adds setup time, programming time and machine hourly rate. Go up only when the geometry forces it. The test is simple: list the faces that carry toleranced features and count how many times the part must be re-clamped to reach them.

One to three faces, all reachable from the top: 3-axis is enough. Round or near-round parts with holes on a pitch circle: a 4-axis rotary table lets the machine index while the part stays clamped, which removes the position error you get from re-fixturing. Parts with angled ports, compound angles or blended surfaces: that is where simultaneous 5-axis earns its rate, because the tool stays normal to the surface and you can use a short, stiff cutter.

A common mistake is quoting a simple bracket on a 5-axis machine because the shop has one free. You pay for capability you do not use. The reverse mistake costs more: forcing a contoured impeller onto a 3-axis machine leads to ball-nose tools with long overhang, chatter, and a surface finish that needs hand polishing.

• 1
  Count setups firstEach extra setup adds roughly one setup error to your stack
• 2
  Rotary table for indexingØ400 mm table covers most round parts up to that diameter
• 3
  5-axis for surface contactUse it when the tool must stay normal to a curved face

A tolerance figure on a website is a machine capability, not a promise about your part. ±0.005 mm is achievable on a well-maintained VMC with temperature control, a probing cycle and a short tool. It is not achievable on a 300 mm long bore with a 12 mm cutter hanging out of the holder, no matter what the brochure says.

Before you accept a tolerance, ask which features are covered and how they are measured. A CMM report on the critical dimensions is worth more than a general statement. If your drawing has a datum scheme, the shop should be able to tell you how the part is located for inspection, because a dimension measured from the wrong datum is a rejection waiting to happen.

Surface finish works the same way. Ra 0.8–1.6 μm is a normal as-machined finish on aluminum with a sharp cutter and correct feed. Ra 0.2–0.8 μm usually means a finishing pass with a smaller stepover, a different tool, or a secondary operation. If your callout is on a deep pocket floor, expect the shop to quote extra time or propose a different process.

• 1
  Name the critical featuresTen toleranced dimensions cost less to control than forty
• 2
  Ask for the gaugeCMM, micrometer or bore gauge, and who signs the report
• 3
  Finish follows the toolpathStepover and feed set Ra more than spindle RPM alone

Start with the envelope. Send the bounding box of your part and the largest single feature, not just the file. A shop with 4,000 mm travel and a shop with 500 mm travel both call themselves vertical CNC machining services, and only one of them can hold your part without a second operation.

Then check the certification list against your industry. ISO 9001:2015 covers general quality management. IATF 16949:2016 matters for automotive and EV work. ISO 13485:2016 is the one medical device buyers look for. ISO 27001:2022 covers information security, which matters if your drawings are sensitive. A supplier who cannot show the certificate scope is asking you to take a risk.

Finally, test the quoting process. Send one part with a real drawing and see what comes back: a number, or a number plus a DFM note about a wall thickness, an undercut or a tolerance that will be hard to hold. The second kind of reply is the one you want. It means someone read the drawing before pricing it.

• 1
  Ask for the envelopeTravel figures in writing, plus the largest part run last year
• 2
  Match certificates to industryAutomotive, medical and general industrial have different needs
• 3
  Request a DFM replyFree DFM analysis within 12 hours is a normal ask
