A vertical machining center holds the spindle on a vertical axis and moves the table in X and Y. The part sits on a horizontal worktable, so the tool comes down onto the top face. That single fact drives most of the process code: Z depth is easy to control, side access is not.

The work envelope is the first number to check. Our medium-frame machines travel 750 × 1,150 × 550 mm and 600 × 600 × 600 mm. Compact frames run 500 × 500 × 450 mm and 500 × 310 × 200 mm. Parts longer than 4,000 mm sit outside what we quote as a single setup.

On a 3-axis VMC the part must be repositioned for every new face. Each reposition adds a datuming step and a small stack of error. Two faces usually hold tolerance well. Four or five faces turn into a fixturing project.

Chip evacuation is the quiet constraint. Vertical machines drop chips onto the part and into pockets. Deep cavities need through-spindle coolant and a peck cycle, or the recut chips will wreck the finish.

A vertical machining center processing program is not one long block of moves. It is a stack of operations, each with its own tool, offset and inspection point. The order matters more than the individual feed rates.

Rough first, then semi-finish, then finish. Leave 0.3–0.5 mm of radial stock after roughing on aluminum, 0.2–0.3 mm on stainless and tool steel. Skip the semi-finish pass on a deep pocket and the finishing tool will flex into the wall.

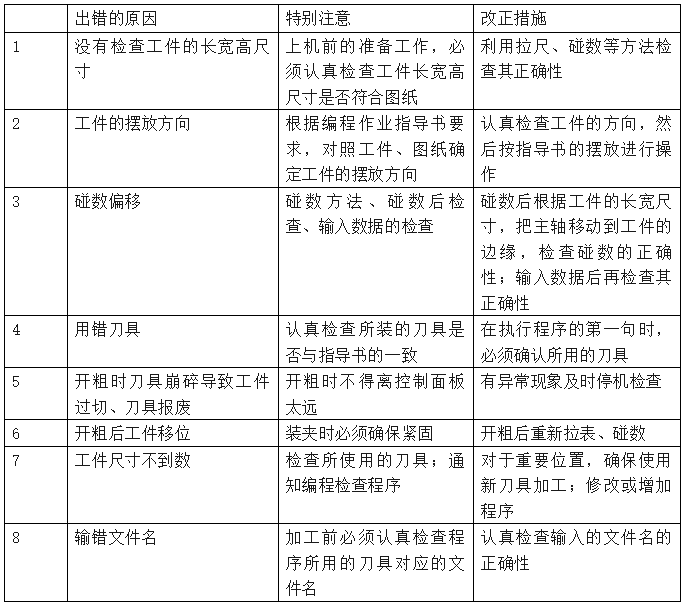

Datum the part before the first cut, not after. Set Z from a known face or from the top of a gauge block, then write that value into the setup sheet. A 0.02 mm error in the Z datum shows up as a 0.02 mm error on every floor in the program.

Keep tool changes grouped. Every tool change costs cycle time and adds a chance for a chip to land on the taper. On a 40-tool magazine, grouping roughing tools together can pull several minutes out of a medium run.

A vise is the default for prismatic parts. Keep the part as low in the jaws as the geometry allows, and support the underside across the full footprint. A part clamped on 8 mm of stock will move when a 16 mm end mill loads it sideways.

For plates, use a fixture plate with dowel pins and a toe clamp pattern. Pins take the cutting load; clamps hold the part against the pins. This is how we hold thin walls down to 1.5 mm without bowing them.

Soft jaws machined in place beat generic jaws every time on a second operation. Bore the jaw pocket with the actual part or a gauge, then the runout carries over to the part instead of fighting it.

Rotary tables change the math. A Ø400 mm rotary table with a tailstock lets a 4-axis setup cut three or four faces without re-datuming, which is often cheaper than a second 3-axis operation.

Cutting data follows the material, not the machine. Aluminum 6061 runs fast with high rake tools; 17-4PH stainless wants lower surface speed and a rigid setup. A program copied from aluminum onto stainless will break tools.

For finishing to Ra 0.8–1.6 μm, keep the radial engagement light and the feed per tooth constant. On a 10 mm carbide end mill in 6061, a 0.15 mm radial stepdown with a 0.05 mm feed per tooth gives a predictable finish. Push the stepdown to 1 mm and the wall will chatter.

Tolerance is a system number, not a code number. We hold ±0.005 mm on qualified features, and that depends on the fixture, the tool holder and the thermal state of the machine as much as on the G-code.

Warm up the spindle before a tight-tolerance run. A cold spindle grows several micrometres in the first twenty minutes. On a ±0.005 mm feature, that is the whole budget.

Aluminum 6061, 6082 and 7075 cut clean and hold a sharp edge. They also move under heat. A finishing pass that removes 0.1 mm from a hot 7075 pocket can spring back after cooling and miss the tolerance.

Stainless 303 and 304 work-harden the moment the tool rubs instead of cuts. Keep the feed per tooth up and never dwell in the cut. 17-4PH in the H900 condition machines closer to steel than to 304.

Titanium TC4 (Ti-6Al-4V) needs low surface speed, high coolant pressure and sharp tools. Heat goes into the tool, not the chip, so tool life is short and the program should plan for a mid-run tool change.

Plastics like POM and PEEK cut fast but hold chips and burrs. Use air blast rather than flood coolant, and leave a finishing allowance because plastic relaxes after the vise is released.

If the part has features on all six faces and a tight angular relationship between them, a 5-axis setup is usually cheaper than four 3-axis operations. Each 3-axis reposition adds a datum and a tolerance stack.

If the part is a long shaft with a diameter under 80 mm, a mill-turn center does the turning and milling in one cycle. Moving it to a VMC means a lathe operation plus a separate milling setup.

If the part is a large housing with bores on four sides, a horizontal machining center reaches those faces with the spindle and a tombstone. A vertical machine would need the part rotated four times.

If the batch is one part and the geometry is simple, the VMC is still the fastest route. Fixturing a single part on a 5-axis table can cost more than the cutting time saved.
