Everything above the bed inherits the bed's stiffness. On a turn-mill, the bed carries two load paths at once: the rotating spindle load from turning and the interrupted cutting load from milling. Cast iron with a ribbed box section is still the common choice because it damps vibration. Polymer concrete appears on smaller high-speed frames where thermal stability matters more than mass.

The column or slant bed decides how the milling head reaches the part. A 45° slant bed lets chips fall clear and keeps the operator's reach short. A vertical column gives a wider Y travel but collects chips unless the coolant strategy is planned from the start.

Thermal growth is the hidden variable. A spindle running at 12,000 rpm for two hours will move a few micrometres relative to the bed. Machines that hold ±0.005 mm over a long run usually have temperature sensors on the spindle housing and the ballscrew, and the control compensates in real time.

This is why two machines with identical spindle tapers can behave differently on the same part. The structure, not the spindle spec sheet, sets the floor on what the machine can hold.

The main spindle is the part of a cnc turning and milling machine tool that most directly decides surface finish. Its bearings, preload and drawbar force control how much the workpiece deflects under cut. A spindle with ceramic hybrid bearings and oil-air lubrication will hold speed and thermal stability better than a grease-packed unit at the same price point.

The sub-spindle faces the main spindle and picks up the part after the first operation. On a good turn-mill, the sub-spindle is synchronised with the main spindle so the part can be transferred without stopping. That single feature removes a second op and the re-fixturing error that comes with it.

The milling spindle is mounted on the turret or on an independent B-axis. A belt-driven milling spindle is cheaper and fine for light face work. A built-in motor spindle reaches higher rpm and holds better runout, which matters as soon as you are milling a slot with a 3 mm end mill.

Spindle runout and drawbar force are measured at the factory and can be rechecked on site. If a shop cannot tell you the runout figure for its spindle, ask for a test cut on your material instead.

The turret indexes tools into position. On a turning-only lathe it holds static holders. On a turn-mill it holds live tooling, which needs its own drive motor and gear train inside the turret body. That drive is where most turret failures start, because the gearbox sits in a hot, chip-filled space.

A tool changer with a chain or disc magazine serves the milling spindle. Tool-to-tool time matters on parts with many features. Tool-to-tool time does not matter at all on a two-feature part, so do not pay for a 40-tool magazine if you will never load more than eight.

The B-axis head is the defining part of a true turn-mill. It tilts the milling spindle around the Y axis, usually from -30° to +120°, and can interpolate with the C-axis of the main spindle. That combination is what lets the machine drill an angled hole or mill a pocket on the side of a shaft without re-fixturing.

A B-axis head adds cost, mass and a calibration routine. If your part is prismatic or shaft-like with only radial holes, a turret with live tooling will do the job for less money and less setup time.

Linear guideways carry the slides. Roller-type guides take higher load and damp better; ball-type guides run faster and need less preload. On a turn-mill, the X and Z axes usually ride roller guides because the cutting load is heavy and the feed rates are moderate. The Y and B axes ride on whatever the builder can fit without losing stiffness.

Box ways appear on heavy lathes where the table mass is large. They resist deflection better but need more lubrication and lose accuracy faster if the oil film breaks down. For parts under Ø400 mm, roller linear guides are usually the better trade.

The ballscrew converts motor rotation into slide movement. Its pitch, preload and thermal behaviour set the positioning repeatability. A C3-ground screw with double-nut preload will hold position better than a rolled screw, and the difference shows up as soon as you interpolate a circle.

Laser interferometer compensation is standard practice on new machines. Over time the screw stretches and the compensation table goes stale. Re-compensation every 12 to 18 months is cheap insurance for shops that quote ±0.005 mm work.

The control needs to know where the slide actually is, not where it was told to go. A rotary encoder on the motor counts motor turns; a linear scale reads the slide directly. For work at ±0.005 mm, a linear scale on X and Z removes the ballscrew from the accuracy chain and is worth the added cost.

The servo loop closes at a set gain and feed-forward. Too low and the axis lags behind the commanded path, leaving corner rounding. Too high and the machine hums and marks the surface. This is why a machine that cuts well on one material can chatter on another at the same feed.

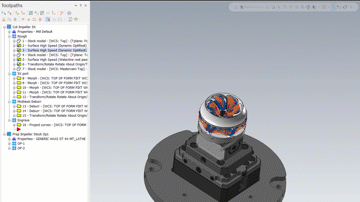

Look-ahead blocks in the control smooth the toolpath before it reaches the servo. On a turn-mill running simultaneous B and C axis motion, look-ahead is what keeps the tool from overshooting a corner. It also limits how fast you can feed without the control dropping points.

The control is also where the thermal compensation, tool offsets and spindle orientation live. A well-tuned control on a modest frame often beats a high-spec frame that was never set up properly.

Through-spindle coolant reaches the cutting edge on a boring bar or a deep pocket. High-pressure coolant at 70 bar and above breaks chips that would otherwise wrap around the tool and stall a turret. On deep holes, it is the difference between a stable process and a scrap bin.

Chip conveyors and augers do not affect tolerance directly, but they do affect whether the machine can run unattended. A turn-mill that drops chips into the work zone will lose the part after a few hours of lights-out running.

Workholding inside a turn-mill envelope is usually a chuck, collet or a bar feeder. A three-jaw power chuck grips fast but distorts thin-wall parts. A collet chuck holds better concentricity at lower clamping force, which is what you want on a thin aluminium housing.

Steady rests support long shafts. On a turn-mill doing a 4,000 mm part, the steady rest and the counter-spindle must be aligned to the main spindle axis, or the part will bend and the milling features will be off-centre.
