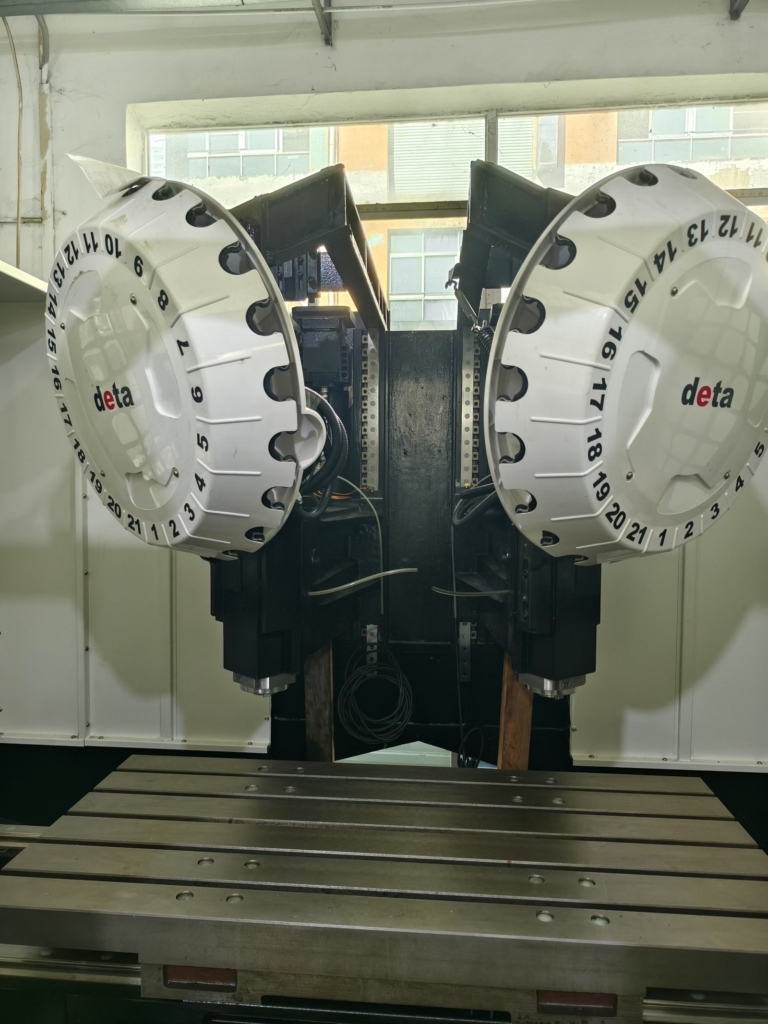

A twin spindle machine is not a faster version of a single spindle mill. It is a different process layout. Two independent spindles, usually mounted opposed on one base, machine two faces or two parts at once. The saving comes from removing a second setup, a second fixture and a second operator from the route.

That saving is real only when the part repeats. On a one-off bracket, you pay for the extra axis, the extra tool magazine and the extra spindle maintenance and get nothing back. The machine sits idle half the cycle because you still only have one part in the fixture.

So the question is not which machine is better. It is whether your part mix, annual volume and tolerance stack match what two spindles can deliver. Get that wrong and the machine becomes the most expensive way to make a part you could have milled on a 3-axis.

Start with the numbers you already have. Take the current cycle time per part on your single spindle route, then add the non-cutting time: load, unload, fixture change, in-process check. On a typical housing that is 4 minutes of cut and 3 minutes of handling, so 7 minutes per part.

A twin spindle layout machines both faces in the same 4 minutes and still needs roughly the same 3 minutes of handling, but for two parts. Effective time per part drops toward 3.5 minutes. That is a 2× gain on paper, near 1.6× in the shop once tool changes and probing are counted.

Now compare that gain against the price gap. If you run 200 parts a year, the hours saved never cover the delta. If you run 5,000 parts a year on a stable design, the payback is short and the case is easy. Write both numbers down before you talk to any machine builder.

• 1
  Rule of thumbBelow 500 parts per year, a single spindle with a pallet changer is usually the cheaper route.
• 2
  Handling dominatesIf load and unload time exceeds cutting time, fix the fixture before you buy a second spindle.
• 3
  Design freezeA twin spindle layout punishes revision changes; only commit when the drawing is stable.

Two spindles are at their best on parts with features on opposite faces that must stay in relation to each other. A pump body with a bored bore on one side and a mounting face on the other is the classic case. Machining both in one clamping removes the flip error entirely, which is where most of your scrap comes from today.

Tolerance is where the machine earns or loses its money. Opposed spindles on a common base can hold ±0.005 mm between the two faces if the base is stable and the shop is temperature controlled. If the base twists with spindle heat, that number drifts through the shift and you will chase it at final inspection.

Not every part fits. A long shaft that needs support at both ends, or a thin plate that deflects under two cutting forces, will fight you. In those cases a mill-turn center or a single spindle with a rotary table is the safer choice.

The biggest hidden cost on a two-face part is not cutting. It is the second op: second fixture, second zero point, second operator, second inspection sheet. Count those hours over a year and they often exceed the machine payment.

A twin spindle layout collapses that into one load. One operator loads two parts, presses cycle start and unloads. On a 60-second cut that typically moves a cell from two operators to one, or from one machine per operator to two machines per operator.

Watch the tool count. Two spindles share one magazine on many designs, so tool slots get tight. If your part needs 30 tools per side, you will spend the day swapping and the cycle time advantage evaporates. Count tools per side before you commit to a model.

Two spindles mean two sets of bearings, two drawbars and two sets of thermal drift to manage. Maintenance intervals do not halve when you add a second spindle; they roughly double in parts cost while staying similar in labor hours.

Alignment is the item people forget. If the two spindles lose their relative position after a crash or a bearing change, every two-face part drifts out of tolerance at once. Budget for a laser alignment check on a fixed schedule, not only after a problem.

Power and floor space are the other two line items. A twin spindle machine draws more current and needs more floor area than a comparable single spindle, so confirm your service and your layout before the PO, not after delivery.

Do not buy on a demo part that the builder designed. Send your own hardest part: the one with the tightest cross-face tolerance and the longest tool list. Ask for the cycle time, the tool list and the inspection report from that run.

Ask for the first article report with the cross-face tolerance measured on at least 30 consecutive parts. A single good part proves nothing. Thirty parts show whether the base holds its position through a warm-up cycle.

If the builder cannot run your part, ask a contract shop that already owns the model. GreatLight runs 16 simultaneous 5-axis machining centers and 16 mill-turn centers in Dongguan, so we can quote both routes and tell you which one fits your volume. Send a drawing and we will run a free DFM analysis within 12 hours.

• 1
  Send your part, not theirsThe builder's demo part is chosen to look good.
• 2
  Ask for 30 partsOne good part does not show thermal drift.
• 3
  Compare both routesPrice the same part on a single spindle route before you decide.
