The question of who discovered the CNC machine assumes a single inventor and a single date. Neither exists. Numerical control grew out of three separate problems that arrived within five years of each other: how to cut complex aircraft contours, how to hold position under load, and how to hand a machine a set of instructions it could follow without a machinist turning dials.

It helps to separate two words that get used interchangeably. NC means numerical control: the machine reads a fixed set of coordinates, usually from a punched tape or a stored program, and moves to them. CNC means computer numerical control: a computer inside the control reads the program, runs the toolpath math, and compensates for tool wear, backlash and thermal drift in real time. The hardware looks similar. The difference sits in the control.

So the honest answer to who discovered the CNC machine is a list of contributors rather than a name. John Parsons framed the problem for the US Air Force in 1949. The Servomechanisms Laboratory at MIT solved the control problem and ran the first NC cuts in 1952. John T. Parsons and Frank Stulen refined the punched-card method that fed the controller. Ralph Kwoh wrote the part-programming language APT at MIT in 1956, which made toolpaths writable by engineers instead of by hand.

Every one of those steps mattered, and none of them alone produced the machine on your shop floor. Treat the history as a chain of engineering decisions, not a discovery. That framing also explains why the term CNC only became correct after computers were cheap enough to sit inside the control cabinet.

Parsons had a contract to make inspection templates for helicopter rotor blades, then a subcontract to machine the blades themselves. The contour was a set of points. Checking and adjusting hundreds of coordinates by hand was slow and inaccurate, so Parsons used a punched-card calculator to compute the point table. The Air Force saw the idea and funded a machine that could follow the same table.

His insight was modest but decisive: if the coordinates are already numbers, the machine should read the numbers directly. Send a human to turn handwheels from a coordinate sheet and you get transcription errors, fatigue and inconsistent feed. Send the numbers to a controller and the error budget stops depending on the operator.

MIT's Servomechanisms Laboratory took the contract in 1949. The team chose a Cincinnati Hydro-Tel vertical mill and built the control around it. The first public demonstration came in September 1952. The machine cut a part from a program, not from a template.

Two details from that work still show up in modern shops. First, the program had to be written before the cut, so errors moved upstream into planning. Second, the controller needed a feedback signal, not just a command. Both ideas survive in every CAM post-processor and every closed-loop axis drive we use.

Early NC hardware was hard-wired. Changing a feed rate meant changing the logic. The program told the machine where to go, but the control could not adapt. If the cutter wore, the part drifted. If a servo lagged, corners got rounded.

The war years pushed servomechanism research forward for anti-aircraft gun aiming, and that work produced the position feedback hardware machine tools needed. A synchro or resolver reported the actual axis position; the control compared it with the commanded position and corrected the difference. That closed loop is the ancestor of every axis drive we run.

Direct computer control arrived in the 1960s. A minicomputer replaced the hard-wired logic, so the controller could store programs, run interpolation math and apply cutter compensation. By the late 1960s and early 1970s, control builders were selling compact CNC units with the computer inside the cabinet.

This is the point where the phrase computer numerical control becomes accurate. It also changes what the machinist does. On an NC machine the operator feeds the tape and watches the cut. On a CNC machine the operator sets the work offset, loads the tool data and decides what the controller should do when a deviation appears.

Ralph Kwoh and the MIT team released APT (Automatically Programmed Tools) in 1956. It let an engineer describe a part with geometry statements and cutter motions, then the computer produced the coordinate output. Before APT, a complex contoured part meant months of hand-computed points.

CAD/CAM grew from the same root. Once the geometry lived in a computer, the toolpath could be generated from it rather than typed alongside it. That connection is what makes a today's job feasible: we receive a 3D model, generate a toolpath against the nominal surface, and post it for a specific machine and control.

Multi-axis interpolation came next. Two axes working together produce a straight line in one plane. Three produce a ruled surface. Four or five simultaneously produce freeform surfaces and allow the tool to stay normal to the surface. For a part like a turbine blade or a medical implant, that is the difference between a polished blend and a visible facet line.

GreatLight runs 16 simultaneous 5-axis machining centers, 12 four-axis mills, 27 three-axis machines and 16 mill-turn centers across three plants. The lineage is direct: the same closed-loop position control demonstrated in 1952 is what lets us hold ±0.005 mm on a 4,000 mm part today.

The 1952 machine was rigid and slow, but it proved a principle that still drives quoting decisions. Any error you can move out of the cut and into the program is an error you stop paying for on every part. That is why we ask for a 3D model and tolerances instead of a drawing alone.

Closed-loop control has limits too. The controller corrects position error, not thermal growth, not fixture deflection and not tool wear beyond what the offset table knows. A machine holding ±0.005 mm on a 100 mm aluminum bracket will not hold the same number on a 900 mm steel weldment without a warm-up cycle, a stable fixture and in-process checks.

Multi-axis capability changed design, not just machining. Once five axes could interpolate, engineers began drawing monolithic parts that used to be assemblies of six or eight pieces. Fewer joints means fewer leak paths and less stack-up, but it also means one bad toolpath scraps more value.

That trade shows up in lead time. Simple 3-axis work can start within 24 hours of a released model. A 5-axis part with thin walls or deep pockets needs a strategy review first, because the access angle and the tool length decide whether the tolerance is achievable at all.

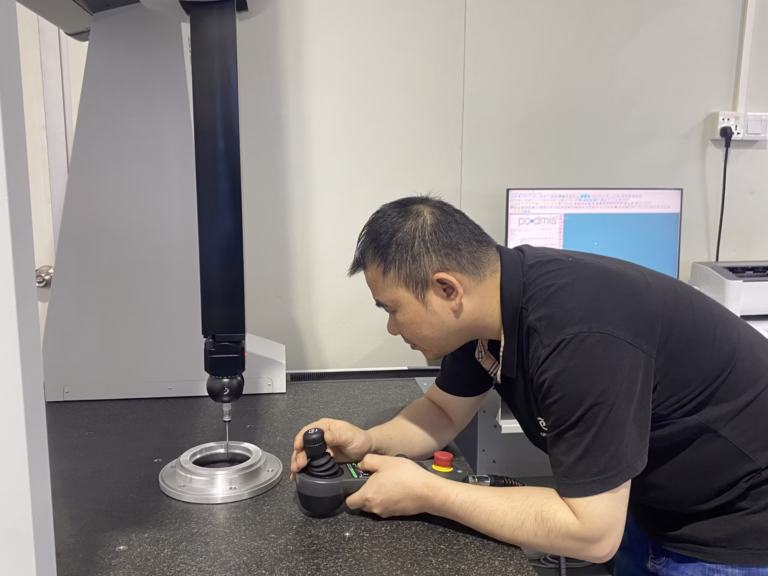

Tolerance is a system property, not a machine property. The controller, the spindle, the toolholder, the fixture and the material all contribute. Our published capability is ±0.005 mm (±0.0002 in), and that number is realistic on features with good access, a rigid setup and stable material.

Surface finish follows the same logic. As-machined surfaces land at Ra 1.6–3.2 μm. A careful finishing pass with the right stepover reaches Ra 0.8–1.6 μm. Fine finishes at Ra 0.2–0.8 μm usually need a dedicated finishing operation or a secondary process such as lapping or polishing.

Material choice moves the achievable window. Aluminum 6061 and 7075 cut cleanly and hold tight tolerances well. Stainless 316L and 17-4PH work-harden, so light passes and sharp tooling matter more than raw spindle speed. Titanium TC4 and Inconel push heat into the cutting edge, which shortens tool life and widens the scatter between parts.

The practical answer for an engineer is to send the model with a tolerance callout per feature, not one global number. That lets the process planner choose between a 3-axis setup, a 4-axis tombstone, a 5-axis simultaneous pass or a mill-turn cycle, and it keeps the cost on the features that actually need it. We return a free DFM analysis with the quotation within 12 hours.
