Why Does Baoji Machine Tool Hold the Industry Lead? 7 Fault Checks
The old question, why does Baoji machine tool realize the owner of the national tour industry, is usually asked by people who have never run one. We run 127 CNC machines in Dongguan and Singapore, so we judge machine tools by what shows up on the table. This page lists seven symptoms that decide whether a machining center keeps its accuracy, and what to do when one of them drifts.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
- 7
Symptom, Likely Cause, Immediate Action
Read the left column first. If two rows match at once, fix the thermal row before touching anything else.
| Symptom | Likely cause | Action |
|---|---|---|
| Bore drifts 0.02 mm over a shift | Thermal growth, no warm-up cycle | Run 20 min spindle warm-up, log room temp |
| Squareness error grows with table load | Bed and column settling, bad leveling | Re-level, torque anchor bolts, re-check in 48 h |
| Surface chatter at one spindle speed | Resonance, tool overhang too long | Shorten holder, change speed by 10% |
| Pitch error repeats every screw turn | Ballscrew wear or preload loss | Laser check, re-preload or replace nut |
| Taper runout over 0.005 mm | Spindle taper damage or dirt | Blue-check taper, clean, regrind if scored |
| Position loss after rapid moves | Servo gain mismatch, loose coupling | Re-tune gain, check coupling torque |
| Roundness out on interpolated holes | Backlash in X and Y | Measure backlash, adjust parameter or gib |
Why Does Baoji Machine Tool Accuracy Fail First at the Structure
Most accuracy complaints on any machining center do not start at the controller. They start at the bed, the column and the floor under them. Cast iron moves with temperature and with load, and a machine that was leveled in January is not necessarily level in July. When a shop asks why does Baoji machine tool hold its name for decades, the honest answer is boring: the frame was scraped and settled properly, and the owner re-checked it on a schedule.
A quick way to separate structure from control is a warm-up test. Face a 200 mm aluminum plate at 08:00 and again at 14:00 with the same tool and the same speed. If flatness changes by more than 0.01 mm, thermal or structural drift is in play. If it does not change, the fault is downstream: spindle, screw, servo or fixture.
Leveling is not a one-time job. We re-check anchor bolts after the first 48 hours of running a new machine, then every six months. On a machine sitting near a loading door, temperature swing across the day can reach 8 °C, which is enough to move a 1,000 mm column by tens of microns.
One more structural item: the foundation. A 4,000 mm machine on a thin floor slab will twist under its own moving mass. If the floor is under 200 mm of reinforced concrete, expect squareness to wander no matter how good the control is.
- 1Warm-up first20 minutes at 2,000–6,000 rpm before any tight-tolerance cut.
- 2Log the roomRecord shop temperature at the start and end of each shift.
- 3Re-level twice a yearEspecially for machines near doors or heat sources.
- 4Check the floorThick reinforced slab, isolated from forklift traffic.
Spindle and Tool Holder: Where Microns Disappear
The spindle is the part that touches the part. Taper contact under 80% on a blue-check is a red flag. Dirt, chips and dried coolant on the taper will show up as runout long before the bearings fail. Clean the taper with a lint-free wipe and check again before you order a spindle rebuild.
Bearing preload changes with temperature. A spindle that has run for six hours at 12,000 rpm will sit at a different preload than a cold one. This is why we cut tight bores after a warm-up cycle, not on the first part of the morning. On our 16 simultaneous 5-axis centers, spindle growth is one of the two largest contributors to a drifting Z zero.
Tool holders matter as much as the spindle. A worn holder with 0.01 mm runout at the gauge line will cut a hole 0.01 mm off nominal before any machine error enters the picture. Keep a dedicated set of holders for finishing work and never let them run in a heavy roughing cell.
If runout is fine but surface finish still fails, look at pull stud torque and drawbar force. A weak drawbar lets the holder move under load, and the chatter that follows is often misread as a spindle problem.
- 1Blue-check the taperContact should exceed 80% around the full circumference.
- 2Separate finishing holdersReserve them for tight-tolerance work only.
- 3Check drawbar forceWeak clamping shows up as chatter, not runout.
- 4Warm up before finishingCold spindle equals drifting Z zero.
Ballscrew, Guideway and Backlash Errors
Backlash is the quiet killer of interpolated features. A circle that comes out oval, or a slot that is wider at one end, usually points to lost motion in one axis. Measure it before you blame the program. A dial indicator against the table, jog 0.05 mm forward and back, and read the difference. Anything over 0.005 mm needs attention.
Ballscrew preload can be restored on some designs and not on others. On a worn nut, re-preloading buys time but changes the friction curve, so the servo may need retuning. When pitch error repeats every screw revolution, plan for a screw or nut replacement rather than chasing parameters.

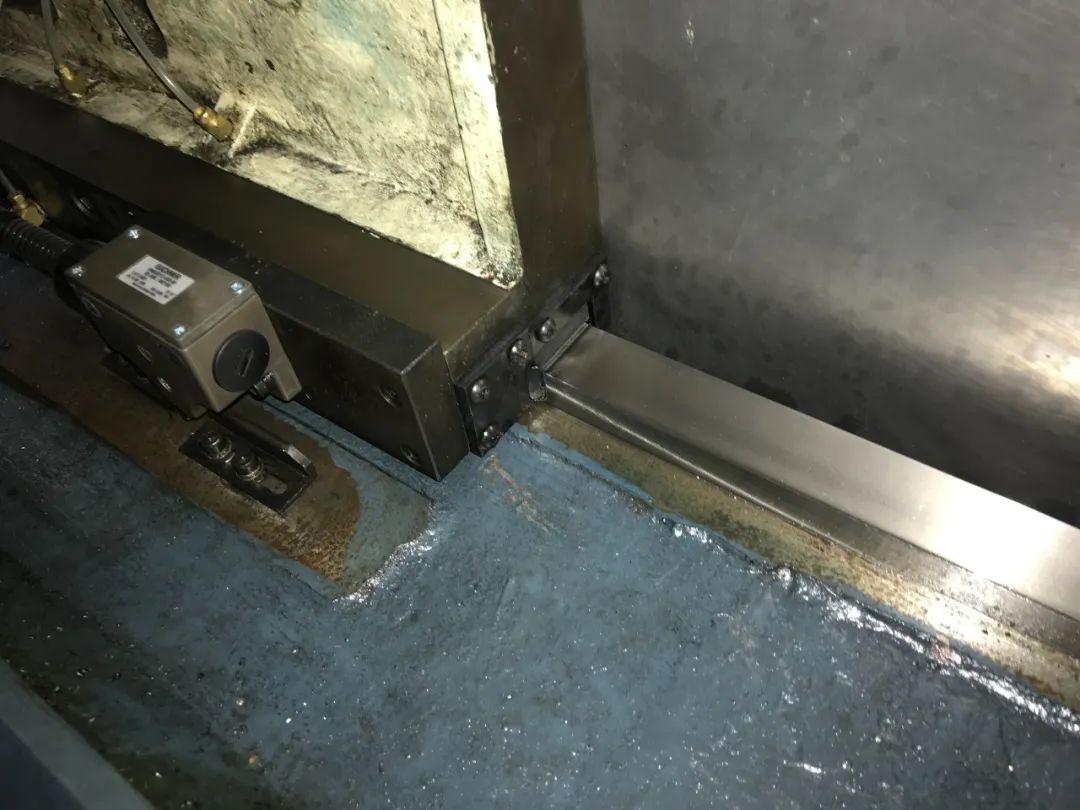

Linear guideways tell you their condition through the sound and the current draw. Rising servo current on one axis during a slow feed move is an early sign of a dry or pitted block. Grease on schedule, and replace blocks in pairs, not one at a time.
On a mill-turn center, the C-axis adds another backlash source. If the same feature is accurate on a mill but out on a turn-mill, check the C-axis brake and the coupling first. We keep a Ø400 mm rotary table in the inspection loop for exactly this check.
- 1Measure, do not guessJog 0.05 mm and read the indicator difference.
- 2Replace blocks in pairsOne new block beside a worn one loads unevenly.
- 3Watch servo currentRising current equals rising friction.
- 4Check C-axis separatelyTurn-mill errors often hide in the brake.
Thermal Drift and Coolant Strategy
Thermal drift is not a defect you can fix with a parameter. It is a process you manage. A machine that runs a heavy roughing cycle for two hours and then cuts a finishing bore will move. The fix is sequencing: rough in the morning, let the machine stabilize, finish after the warm-up has already happened.
Coolant temperature matters more than coolant volume. A 500 L tank that heats from 21 °C to 30 °C over a shift is a heat source sitting next to your part. If your shop has no chiller, at least keep the tank out of direct sun and away from the spindle motor.
On aluminum work, high spindle speed and low load is a different thermal profile from steel work at low speed and high load. Do not assume the drift direction stays the same when you switch materials. Log the drift per material and per spindle speed range, and you will see the pattern within a week.
For parts with a ±0.005 mm tolerance or a Ra 0.2–0.8 μm finish, we cut the tight features in a single uninterrupted window after a controlled warm-up. Splitting a tight bore across a lunch break is a reliable way to lose a part.
- 1Sequence the dayRough first, finish after thermal stabilization.
- 2Chill the coolantTank temperature swings of 9 °C move the part.
- 3Log per materialAluminum and steel drift differently.
- 4Finish in one windowDo not split a tight bore across a break.
Fixture and Setup Errors That Look Like Machine Faults
A surprising share of accuracy complaints trace back to the fixture. A vise clamped on one side only, a soft jaw not cut in place, or a part sitting on a chip will all produce errors that look like machine drift. Before you call the machine, re-clamp the part and cut a test feature.
Workholding stiffness sets the chatter threshold. A tall, thin wall held in a standard vise will sing no matter how good the spindle is. Add support, reduce overhang, or change the cutter geometry before you touch the machine parameters.
Clamping force also deforms the part. A thin aluminum housing clamped at 3,000 N can spring back after unclamping and lose 0.03 mm on a bore. Use torque-controlled clamps or a spreader inside the bore for thin-wall work.
Setup repeatability is a process metric. If two operators load the same part and get different results, the fixture needs a positive stop or a locating pin. This is not a machine problem, and no amount of servo tuning will fix it.
- 1Re-clamp before blamingClean the seat, cut a test feature.
- 2Support thin wallsChatter threshold is set by workholding stiffness.
- 3Control clamping forceThin parts spring back after unclamping.
- 4Add positive stopsRepeatable loading beats operator skill.
Seven Steps to Isolate a Machine Tool Accuracy Fault
Run these in order. Stop at the first step that fails and fix that item before continuing.
- 11. Record the room and machine temperatureWrite down shop temperature and spindle running hours before any cut. Take the same reading at the end of the test. A swing over 5 °C invalidates the rest of the data.
- 22. Run a 20-minute warm-up cycle2,000 rpm for 5 minutes, then step to 6,000 rpm for 10 minutes, then back to 2,000 for the remainder. Cut nothing during warm-up.
- 33. Cut a geometry test partFace a 200 mm plate and interpolate a 50 mm circle. Measure flatness, roundness and diameter. Compare against the last known good part, not against the drawing alone.
- 44. Check spindle taper and runoutBlue-check the taper for 80% contact. Indicate a test bar at 50 mm and 300 mm from the gauge line. Runout over 0.005 mm needs spindle attention.
- 55. Measure backlash on X and YJog 0.05 mm forward and back with a dial indicator on the table. Record the lost motion. Repeat three times and average.
- 66. Run a laser or ballbar checkUse the ballbar to separate squareness, straightness and servo mismatch. Do this with the machine warm, at the same temperature as step 1.
- 77. Re-clamp and repeat the test partIf the geometry test improves after re-clamping, the fault was in the fixture. If it does not, the machine needs service, and you now have data to justify it.
Frequently Asked Questions
Why does Baoji machine tool keep its reputation while some brands lose it?
The short answer is service discipline, not a secret design. Long-lived machine tool brands tend to publish clear maintenance intervals and keep spare parts available for a decade or more.
We do not own a Baoji machine, so we cannot speak to their internal process. What we can say is that any machine tool holds accuracy only if the owner re-levels it, checks taper contact and measures backlash on a schedule.
How often should a machining center be re-leveled?
Re-check the anchor bolts and level 48 hours after installation or after any move. After that, twice a year is a reasonable baseline for a shop with stable temperature.
If the machine sits near a loading door or a heat source, check quarterly. A temperature swing of 8 °C across the day is enough to twist a 1,000 mm column.
What backlash value means the ballscrew needs work?
Measure it with a dial indicator against the table, jogging 0.05 mm in each direction. Under 0.005 mm is acceptable for general milling.
Over 0.01 mm, interpolated holes will go oval and you should plan a preload adjustment or a nut replacement. Do not try to hide it in the control compensation for tight work.
Can thermal drift be compensated in the control?
Partly. Control compensation works when drift is repeatable, which means the same warm-up, the same spindle speed and the same material.
It fails when the shop temperature changes or the operator skips the warm-up. For a ±0.005 mm tolerance, process sequencing is more reliable than compensation.
Why does surface finish fail even when the dimensions are good?
Dimensions come from the servo loop. Finish comes from the whole chain: holder runout, drawbar force, tool geometry and workholding stiffness.
Check holder runout at the gauge line first. A worn holder at 0.01 mm runout will leave a mark no parameter change can remove.
When should a shop stop fixing and replace the machine?
When two or more independent systems are out at once: pitch error plus taper damage plus guideway wear. The cost of rebuilding rarely beats a newer machine at that point.
Before that decision, run the seven-step check above so the comparison is based on measured data. We ask for the same data from any machine we bring into our own plants.
