What a CNC Machine Tool Refers To: Machine, Spindle, or Cutting Tool

• 1
  A CNC machine tool is the machine, not the cutter
• 2
  How the machine sets the limits on your part
• 3
  How the cutting tool changes the result
• 4
  Where machine and cutting tool meet: spindle taper, holder, pull stud
• 5
  Reading a quote or drawing when it says machine tool
• 6
  Machine, cutting tool and tool assembly compared

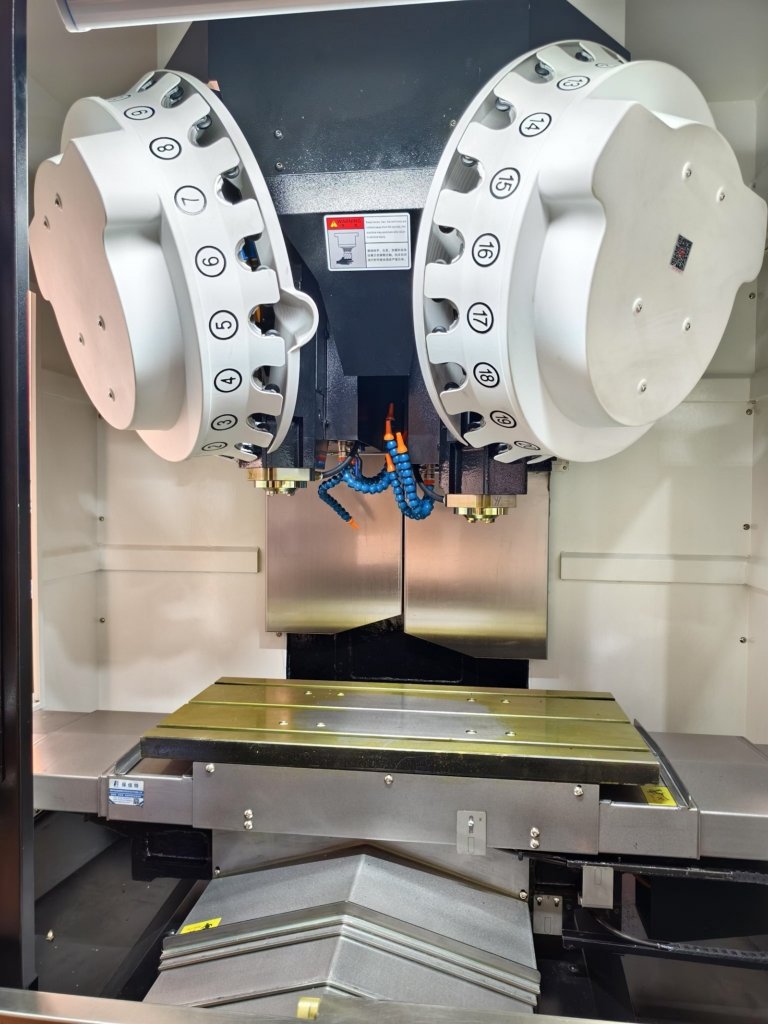

In machine-tool literature, a CNC machine tool is the whole powered machine: the bed, the spindle, the axes, the control, the enclosure. In a machine shop, the same phrase often means the cutter in the spindle. Both readings are common in English, and the mix-up causes real problems. A buyer asks for a tighter machine tool and the shop hears a request for a new spindle, not a new end mill.

The safest habit is to name the object. Say CNC machine when you mean the equipment. Say cutting tool, end mill, insert or drill when you mean what touches the material. Say toolholder or tool assembly when you mean the cutter plus its holder plus the pull stud. Three different things, three different inspection records.

The definition matters commercially because the two objects have different cost drivers. A machine is capital: floor space, power, spindle hours, operator skill. A cutting tool is consumable: it wears, it gets replaced, and its grade decides the surface finish you can hold on a given material. When a quote comes back higher than expected, it is usually one of these two, not both.

There is also a standards angle. ISO 3002 and the ISO 5608 turning insert codes describe the cutting tool itself: shape, clearance, tolerance class, chipbreaker. Machine specifications come from a different set of documents entirely. If a drawing cites a tool standard, it is talking about the cutter. If a capacity sheet cites travel, it is talking about the machine.

• 1
  CNC machineThe equipment: axes, spindle, control, enclosure.
• 2
  Cutting toolThe edge that removes material: end mill, insert, drill.
• 3
  Tool assemblyCutter plus holder plus pull stud, measured as one stack.

Three numbers on a machine decide whether your geometry is even possible: axis count, work envelope, and spindle speed. Axis count sets which faces can be reached in one setup. A three-axis vertical mill cuts the top face and needs a re-fixture for the sides. A simultaneous five-axis center tilts the tool and the table together, so undercuts and compound angles come off in a single pass.

The work envelope is a hard wall. A part that fits the travel on paper can still fail because the fixture, the toolholder and the retract path all eat space. On a machine with 4,000 × 400 × 150 mm travel, a 3,900 mm shaft leaves almost nothing for clamping. The practical rule is to keep the part under about 80% of travel in the longest direction.

Spindle speed and torque decide the material, not the shape. Aluminium 6061 and 7075 run happily at 12,000 rpm and above with small cutters. Titanium Ti-6Al-4V and Inconel want lower surface speed and more torque, so high-speed spindles are the wrong tool there. A machine that is fast in aluminium may be slow and chattery in 17-4PH stainless.

Rigidity is the number nobody publishes. Thermal growth, ball-screw preload and the stiffness of the toolholder taper all show up as position error long before the control reports anything. This is why a machine that holds ±0.005 mm on a 50 mm aluminium bracket may drift on a 400 mm steel plate. Size and material change the achievable tolerance, even on the same machine.

• 1
  Axis countSets how many faces come off in one setup.
• 2
  TravelKeep part length under roughly 80% of the longest axis.
• 3
  SpindleSpeed suits aluminium; torque suits titanium and Inconel.

The cutting tool is where the actual cut happens, and its geometry leaves fingerprints on the part. A two-flute end mill clears chips well in aluminium but deflects more than a four-flute in steel. A corner-radius tool spreads load and lasts longer, but it cannot cut a sharp internal corner. If the drawing calls a true 90° internal corner, the answer is a square-shouldered cutter or an EDM pass, not a smaller ball nose.

Coating and substrate decide tool life more than the shape does. Uncoated carbide suits aluminium because coatings can gall and build up on the edge. TiAlN and AlTiN coatings handle steel and stainless at higher temperatures. Diamond-like coatings help in abrasive composites. Using a coated steel tool on aluminium often produces a rough finish and a built-up edge within a few parts.

Tool runout is the quiet one. A holder with 0.02 mm runout effectively cuts with two teeth on a four-flute cutter, which halves feed per tooth and shortens life. Checking runout with a dial indicator before a finishing pass takes a minute and saves a scrapped part. For finishing to Ra 0.8–1.6 μm, a balanced, low-runout holder matters more than an extra pass.

Tool length is a design constraint, not just a setup detail. A long, thin tool in a deep pocket has to be reduced in feed and depth of cut, or it will chatter. When a pocket is deeper than about four times the cutter diameter, expect either a larger tool with a smaller corner radius or a slower operation. Neither is free. The cutter sets the cycle time.

• 1
  Flute countTwo flutes clear chips in aluminium; four suits steel.
• 2
  CoatingUncoated for aluminium, TiAlN for steel and stainless.
• 3
  Runout0.02 mm runout can halve effective feed per tooth.

The interface between machine and cutting tool is its own system, and it is where a lot of tolerance is lost. The common tapers are BT30, BT40, BT50, HSK and CAT. Each has a stiffness and a speed ceiling. BT40 is the workhorse for general milling. HSK holds better at high rpm and is common on five-axis centers. A small machine with a BT30 spindle cannot make up for its taper by running faster.

The toolholder adds length and multiplies error. A long extension for a deep feature increases overhang, and overhang increases deflection roughly with the cube of length. Doubling overhang can multiply tip deflection by around eight. That is why deep-cavity work is often done with a shorter stack on a larger machine or with a different process.

Pull studs and retention knobs look trivial until a tool pulls out of the spindle mid-cut. Torque values are specified by the machine builder and by the holder maker, and they are not interchangeable. A mismatched knob can crack or fail to seat. Shops that run mixed brands often standardize on one interface family for this reason.

Thermal symmetry matters here too. As the spindle warms, the tool tip moves. A machine that finishes a pass cold and a pass hot will not repeat. Warm-up cycles of 15 to 30 minutes before tight-tolerance finishing are standard practice, not superstition. On a 400 mm steel part, that warm-up can be the difference between holding ±0.005 mm and drifting out of it.

• 1
  BT40 / HSKBT40 for general milling; HSK holds better at high rpm.
• 2
  OverhangDeflection rises with roughly the cube of tool length.
• 3
  Warm-up15–30 minutes before finishing keeps the tip repeatable.

When a customer sends a drawing with a note like finish to Ra 0.8 or hold Ø 20 H7, the shop is reading a requirement about the cutting tool path and the machine's positioning, not about a single component. The reply should say which machine will run it and which tool family will finish it. If a quote only states a machine name, ask for the tool and the setup count. Those two numbers explain most of the price.

Setup count is the hidden variable. One setup on a five-axis center can replace three setups on a three-axis mill, plus the fixtures. Fewer setups usually means better concentricity, because every re-clamp adds a new error stack. On parts with tight bore-to-bore alignment, this is often the deciding factor between processes, not the machine brand.

Material and stock form drive the cutter choice. Bar stock on a mill-turn center may need one tool to face and another to turn. Plate stock on a three-axis mill may need a face mill, a rougher and a finisher. Castings add a skin that can be abrasive or hard, and that changes insert grade. None of this is visible in a part number alone.

Finally, inspection closes the loop. A 100% inspection before shipment, with raw material check and in-process monitoring, is how the shop proves the machine and the tool did what the quote promised. Reports are available on request. If your drawing has a critical feature, say so early, because the inspection plan is built around it.

• 1
  Ask for setup countIt explains more of the price than the machine name.
• 2
  Fewer setupsBetter concentricity, less error stacking.
• 3
  Stock formBar, plate and castings need different insert grades.
