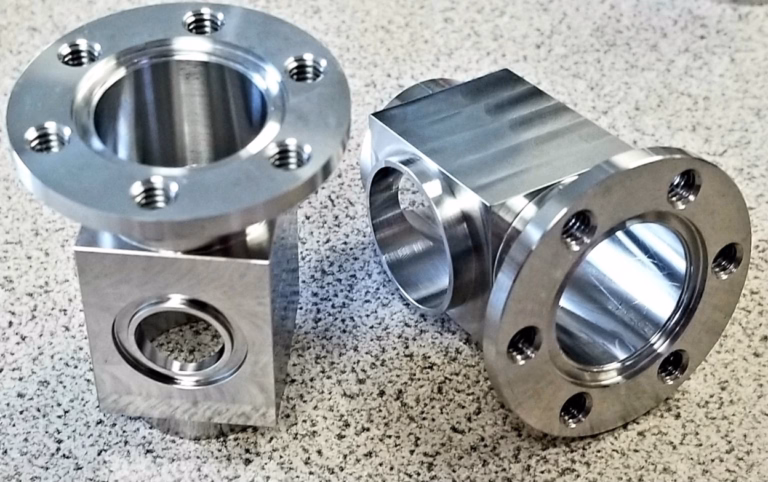

10 Foot CNC Machine Services for Large Precision Parts

A 10 foot part is roughly 3,048 mm. That number matters less than the travel envelope behind it. A machine can only cut what its spindle can reach in X, Y and Z without repositioning the work. Our largest travel is 4,000 × 400 × 150 mm, which covers a 3 m part in X but only 400 mm in Y and 150 mm in Z. A part that is 3 m long and 900 mm wide does not fit that envelope, no matter how long the table is.

This is the first thing to check before you send a model. Long and narrow parts — rails, beams, extrusion profiles, base rails, long brackets — fit the long-travel machines well. Wide plates and deep housings usually need a different setup, either on a machine with a squarer envelope or as two parts joined after machining.

Standard jobs run on 750 × 1,150 × 550 mm or 600 × 600 × 600 mm travels. Compact work sits on 500 × 500 × 450 mm and 500 × 310 × 200 mm machines. We also run a Ø400 mm rotary table when the part needs rotation instead of extra linear travel.

• 1
  Long and slimBest fit for the 4,000 mm X travel.
• 2
  Wide or deepCheck Y and Z first; they run out before X.
• 3
  Rotational featuresA Ø400 mm rotary table may beat a longer bed.

Tolerance on a 3 m part is not the same problem as tolerance on a 100 mm part. Thermal growth, fixture deflection and machine geometry all scale with length. A 2 °C shop swing over a 3 m aluminum beam moves the material more than the cutting tolerance you asked for. That is why long parts get rough machined, rested, then finished.

We work to ±0.005 mm (±0.0002 in) on features we can control, which in practice means critical bores, pockets and mating faces rather than the full length of a beam. A datum-to-datum dimension over 3 m is a different class of measurement. If your drawing calls a tight tolerance across the whole part, say so early — we will tell you what is realistic and where to move the datum.

Surface finish is specified per face, not per part. As-machined is Ra 1.6–3.2 μm, a good general finish is Ra 0.8–1.6 μm, and fine finishing reaches Ra 0.2–0.8 μm. Polishing a 3 m face is possible but slow; usually only sealing surfaces and slideways need it.

On a large part, the fixture is often the hardest design job. A 3 m aluminum beam will sag under its own weight if it is supported at two points, and every cut then measures against a bent part. We support long work at multiple points and indicate it in before cutting. For thin-wall or welded assemblies, we sometimes machine soft jaws or a dedicated tombstone first.

Single-setup machining is the main reason to choose a large-frame machine. Every repositioning adds a datum shift and a re-indication step. If a part has bores at both ends that must stay coaxial, cutting them from one setup on one machine removes a stacking error you would otherwise fight in assembly.

The trade-off is access. On a long bed, the spindle reaches the middle more easily than the ends, and deep Z features at the far end may need the part rotated or the setup split. We flag that during DFM rather than after the first article.

Materials behave differently at this scale. Aluminum 6061 and 7075 cut fast but move with heat. Stainless 304 and 17-4PH hold shape better but load the tool. Titanium TC4 and Inconel need slow passes and rigid setups. Engineering plastics such as PEEK and HDPE are stable in dimension but easy to clamp out of shape.

• 1
  Support mattersLong parts need more than two contact points.
• 2
  Indicate before cuttingConfirm the part is straight, not just clamped.
• 3
  Plan accessFar-end deep features may force a split setup.

One-piece machining is worth it when the part carries a functional relationship along its length: a linear rail mounting face, a coaxial bore pair, a sealing groove that must run unbroken. Assembling those from shorter sections adds joints, fasteners and alignment work, and each joint is a place where the geometry can drift.

Splitting is the better answer when the long dimension is not functional. If a 3 m frame is really three identical modules bolted together, machining three parts and joining them is cheaper and easier to inspect. The same applies when one end is a simple plate and the other end carries the tight features.

A third option is machining a long part in two setups with a shared datum. It keeps the tight features on one machine and avoids a fixture that costs more than the part. We use it when the part is wider than 400 mm but the critical features sit within a shorter window.

Send the model and we will tell you which of the three fits. DFM feedback and a quotation come back within 12 hours, and production can start within 24 hours once the drawing is settled. Parts ship in 3–5 days for most jobs.

A 3 m part does not fit a standard CMM, so inspection is planned around the feature, not the part. Critical dimensions get checked in place with portable metrology or on a surface plate with a height gauge, and we record the reading against the datum called on the drawing. Reports are available on request.

Every job gets raw material verification, in-process checks and a final inspection before shipment. We inspect 100% of parts before they leave, not a sample. For long parts, the final check includes straightness and the relationship between the first and last machined feature, because that is where a setup error shows up.

Our qualification rate is 99.99%, and the historical late-delivery probability is below 2%. Those numbers come from running this kind of work repeatedly, not from one good month.
