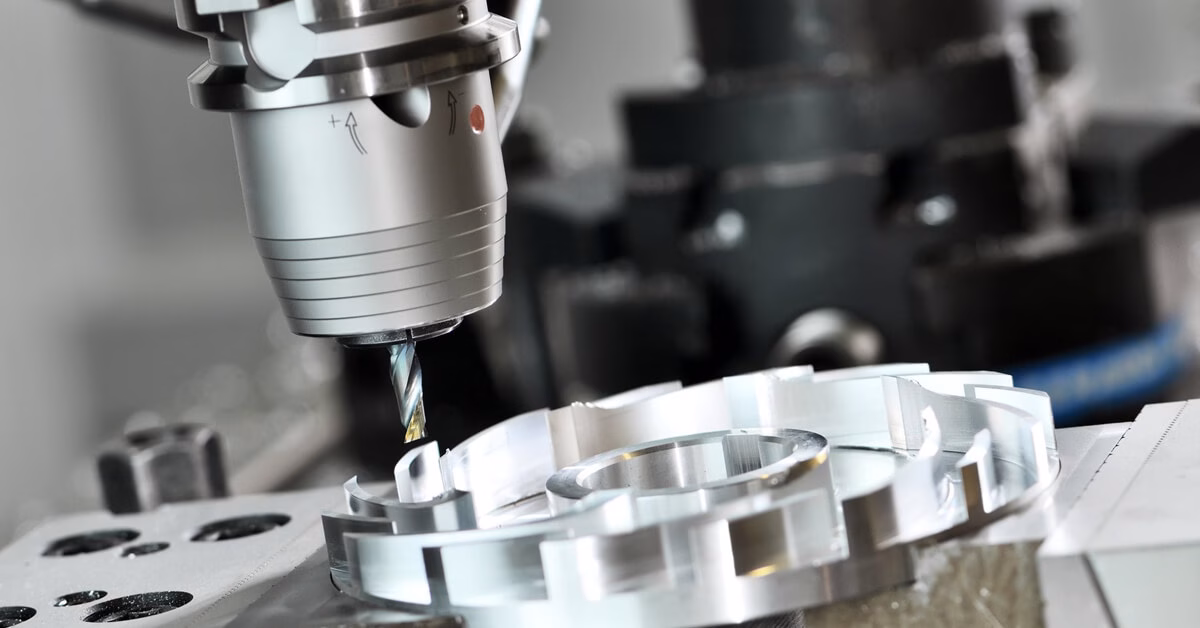

The first place the Puma GT 2600 cuts machining costs is the operation list. A live-tooling turret lets you mill, drill, tap and cross-drill while the part is still clamped in the main spindle. Features that used to need a second machine and a second work order now sit in the same program. For a hydraulic valve body with turned diameters plus a ring of cross holes at defined angles, that is the difference between one setup and three.

Every re-chuck adds error. Soft jaws wear, chip sits on a locating face, and the part shifts by a few microns. On a 60 mm bore with a 0.005 mm concentricity callout, that shift is enough to scrap the part. Single-setup work removes the transfer error entirely, so the tolerance stacks from the spindle and the turret only, not from three separate fixtures.

There is a practical limit. If the secondary features sit on a face you cannot reach without a long, thin tool, or if the part needs a deep cavity that only a 3-axis mill can clear, keep the second operation. Chasing one-setup purity on a part that does not fit costs more in broken tools than it saves in handling. Check reach and tool rigidity before you delete the second op.

Cost follows setup count directly. Each extra setup carries a fixture build, a first-article check and a queue. On a 200-piece run, removing one setup typically saves more than a 20 percent cycle-time cut would, and it removes a whole class of rework.

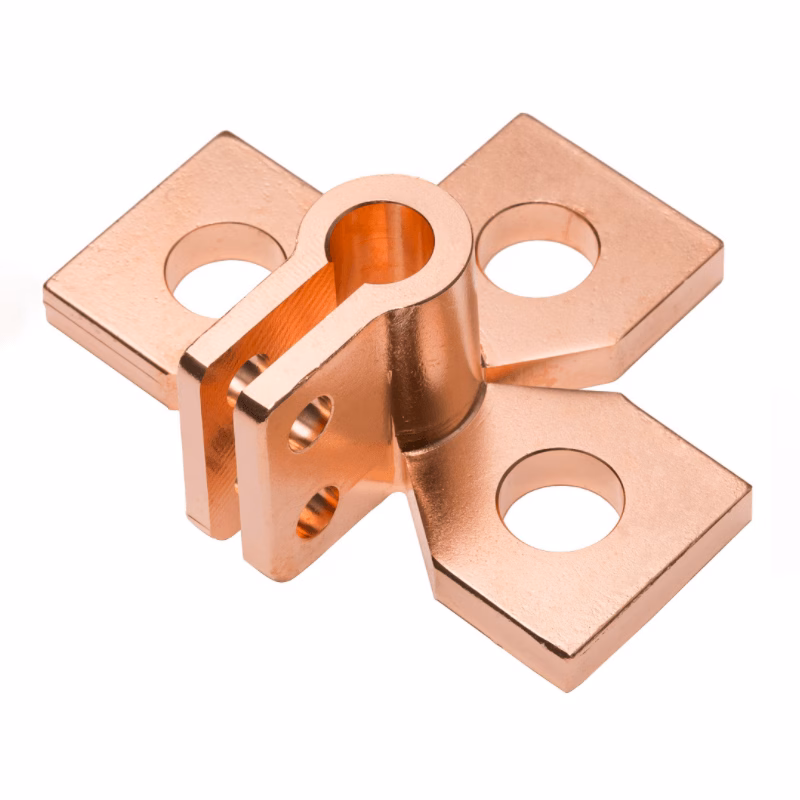

• 1
  Good fitPrismatic features within 3× tool diameter of the turret face, cross holes, flats, slots.
• 2
  Poor fitDeep pockets beyond 4× diameter, features needing a 90° head at odd compound angles.

Precision is not just static positioning accuracy. As a machine runs, the spindle, axis motors and cutting action generate heat, and structural parts grow. On a 400 mm steel shaft, a 20 °C rise moves length by roughly 0.009 mm. If your tolerance band is ±0.005 mm, that growth alone pushes the tail of the run out.

Bed and headstock design that spreads heat evenly is what limits the drift. When the temperature gradient across the structure is small, the growth is mostly uniform and can be compensated. When one end runs 8 °C hotter than the other, the machine bends and the part tapers. That taper is the classic cause of a slow tolerance creep over a long run.

The fix at the process level is boring but effective. Warm the machine for 20 to 30 minutes at a mid-range spindle speed before the first cut. Then measure the first part, log the reading, and re-measure every 50 to 100 parts. If the trend moves in one direction, correct the offset before the parts drift out, not after.

For tight work, keep the coolant at a set temperature. A chiller holding coolant within ±1 °C removes one variable from the loop. It will not fix a machine that has a bad gradient, but it stops the day-to-day swings that make a process look unstable when it is not.

• 1
  Warm-up20–30 min at 3,000–4,000 rpm before the first article.
• 2
  Trend checkLog one dimension every 50–100 parts; correct on trend, not on scrap.
• 3
  CoolantHold within ±1 °C on jobs with a 0.005 mm band.

A stiffer machine platform changes what you can do with the same insert. When the tool holder and turret deflect less, you can keep depth of cut and feed while reducing vibration. In practice that means fewer passes, longer insert life and a better surface finish without a separate finishing operation.

The measurable effect is chatter margin. If a boring bar starts to sing at a certain depth, you either reduce depth, reduce speed, or shorten the tool. On a rigid machine, the same bar can go deeper before the limit. That single change often removes one roughing pass on a 100 mm bore, which is real cycle time.

Do not read rigidity as permission to run everything hard. Thin-walled parts and long slender shafts still deflect under cutting force, and that deflection is the part's problem, not the machine's. For those jobs, use a steady rest, reduce radial engagement, or move to a climb-milling strategy with a smaller stepover.

Tool selection matters as much as the platform. Keep the tool overhang under 4× diameter where the geometry allows. A 16 mm bar hanging 100 mm out will flex no matter how heavy the turret is. Shorten the stack first, then raise the parameters.

• 1
  Raise depth firstIncrease axial depth in 0.5 mm steps until vibration appears.
• 2
  Then feedRaise feed per tooth in 10 percent steps; watch chip color and edge wear.
• 3
  Keep overhang lowTarget under 4× tool diameter for boring and end milling.

Lights-out turning only pays off when the machine can run unattended without making a bin of scrap. The enabling features are not exotic: bar feeder interface, tool-life monitoring, spindle load monitoring, and a program that can restart after a broken tool. Get those right and an operator can run two or three machines instead of one.

Chip control is the most common reason a lights-out run fails. A long stringy chip wraps the tool, the load spikes, and the run stops. Use a chipbreaker geometry matched to the material, keep the feed above the minimum chip thickness, and add a high-pressure coolant line aimed at the cutting edge for deep holes and grooving.

Set conservative alarms. A spindle load alarm at 85 percent of the normal peak catches a broken tool before the next 20 parts are scrap. Tool-life counters should trip at 80 percent of the expected life, not at the point of failure. The extra tool changes cost less than one scrapped batch.

Start with a short unattended window. Run the job attended for the first two hours, then run it unattended for one shift and compare the Cpk. Only extend the window when the process shows no drift and no alarm trips. That sequence has kept lights-out programs from turning into scrap generators.

• 1
  Bar feederSet remnant length and check the push force on the first bar.
• 2
  Tool monitoringAlarm at 85 percent spindle load, tool-life trip at 80 percent.
• 3
  Restart logicProgram must resume at the last completed operation after a break.

The last cost driver is rework. A part that comes off the machine on size, round, and concentric does not go to the deburr bench twice or the CMM queue three times. On a stiffer, more accurate platform, the as-machined finish can sit at Ra 0.8–1.6 μm, which is often good enough to skip a secondary polishing step.

Roundness and concentricity are where a turning center earns its keep. A part turned in one setup with a rigid spindle holds roundness better than the same part turned in two operations. For a bearing seat or a seal journal, that is the difference between a press fit that works and one that leaks.

The cost of rework is easy to underestimate. It is not just the scrapped part. It is the inspection time, the re-setup, the expedited replacement, and the schedule slip. A process that holds ±0.005 mm on the first pass avoids all of those, even if the cycle time is not the fastest on paper.

Measure the right things. Check the diameter, the roundness, and the position of the milled features against the turned datum. If the datum is wrong, every downstream dimension is wrong, and no amount of finish improvement will fix it. Verify the datum first, then the features.

• 1
  Datum firstConfirm the turned datum before checking milled features.
• 2
  Skip the polishIf as-machined finish is Ra 0.8–1.6 μm, a polish step may be unnecessary.
• 3
  Watch roundnessA two-operation part often loses roundness at the re-chuck.
