Puma 2600 CNC Lathe: 7 Essential Tips to Maximize Precision and Cut Costs

The Puma 2600 CNC lathe is a box-way horizontal turning center built for heavy, stable cuts and tight roundness. These seven tips cover the decisions that move cost per part: toolpath strategy, insert choice, workholding, coolant, probing and maintenance. Each one lists the parameter ranges we run and the mistakes that quietly eat tolerance.

±0.005 mm toleranceRa 0.8–1.6 μm finish12-hour DFM replyNo MOQ
puma 2600 cnc lathe 7 essential tips to maximize precision and cut costs
Short version

Key takeaways

Rough and finish are different jobsLeave 0.3–0.5 mm radial stock for finishing instead of chasing size on the roughing pass.
Insert geometry follows the materialSteel wants a positive rake with a controlled chipbreaker; aluminium wants sharp, polished edges.
Workholding decides roundnessA 3-jaw chuck at 25–35 bar clamping turns a good part into a triangle. Bore soft jaws to the grip diameter.
Coolant pressure beats coolant volumeHigh-pressure through-tool coolant at 70–100 bar breaks chips in 316 and 17-4PH where flood coolant cannot.
Probe first, cut secondIn-process probing at 0.002 mm resolution catches thermal drift before the finishing pass, not after.
Tip 1

Toolpath strategy on the Puma 2600 CNC lathe

The Puma 2600 has enough spindle torque and turret rigidity to take heavy roughing cuts, and that is exactly the trap. On a box-way lathe, the fastest cost reduction usually comes from constant chip load, not from maximum depth of cut. Program a constant engagement roughing pass at 1.5–3.0 mm radial depth with feed per revolution held steady, and let the control vary the stepover. Tool load stays predictable, insert life spreads out, and the spindle does not see the spikes that cause chatter marks.

For finishing, split the last cut into two passes when the finish callout is Ra 0.8–1.6 μm. The first pass removes 0.2 mm, the second 0.1 mm. A single heavy finish pass on a long shaft will deflect the part and produce a barrel shape that no amount of spindle speed will fix. If the part is longer than 3× its diameter, plan a tailstock or steady rest in the setup sheet before you touch the program.

Watch the rapid moves as well. On parts with short features, the non-cutting time can exceed the cutting time. Group tools by turret station and keep the rapid plane 2–3 mm above the stock, not 20 mm. On a 40-second cycle that change alone often returns 3–5 seconds.

One more habit: never rough a part to final size and then measure. Rough with a deliberate 0.3–0.5 mm radial allowance, measure, compensate, then finish. Thermal growth in the first hour of a shift is real, and a roughing pass that hits nominal size will be out of tolerance by the time the part cools.

Tip 2

Cutting tools and inserts that match the material

Insert selection is where most of the cost per part is decided. For 1045 and 4140 steel, use a CVD-coated carbide with a positive rake and an intermediate chipbreaker, cutting at 180–260 m/min. Run too slow and you build a built-up edge that tears the surface. Run too fast and the coating fails in minutes. The window is narrower than the insert catalog suggests.

Stainless 304 and 316 behave differently. They work-harden at the surface, so the tool must stay engaged. Feed rates below 0.1 mm/rev rub instead of cut and harden the next pass. Use a sharp, uncoated or PVD-coated grade at 120–180 m/min with a feed of 0.15–0.25 mm/rev, and never dwell in the cut.

Aluminium 6061 and 7075 want polished, high-rake inserts and 300–600 m/min. The failure mode here is built-up edge and chip welding, not wear. Titanium Ti-6Al-4V sits at the other end: 40–70 m/min, high-pressure coolant, sharp edge, and a strict rule not to recut chips.

Keep a tool life log per insert grade and material. When a grade starts failing 20% early, the problem is usually the coolant or the workholding, not the insert.

Tip 3

Workholding and setup choices that hold roundness

A three-jaw chuck is convenient and often wrong for thin-wall parts. Clamping pressure of 25–35 bar on a 2 mm wall will deform the bore into a triangle before the tool ever touches it. Bore soft jaws to the exact grip diameter, drop clamping to 12–18 bar, and check roundness on the machine with a probe or a bore gauge.

For parts held on a mandrel, expansion is safer than compression. An expanding collet spreads load around the bore instead of concentrating it at three points. On the Puma 2600, keep the work as close to the chuck as the part allows; every 25 mm of overhang roughly doubles the deflection under a given cutting force.

Balance the turret too. An unbalanced or mis-set boring bar at 2,000 rpm will show up as a taper on the first 30 mm of the bore. We check tool offsets with a presetter and re-verify the first article, not the tenth.

If the part has features on both ends, plan the flip in the setup sheet. A soft-jaw pocket cut to the finished diameter gives repeatable axial location, typically within 0.02 mm, which is far cheaper than a second op on a mill.

Tip 4

Coolant, probing and maintenance in one loop

Coolant does three jobs: cools the edge, breaks the chip, and flushes it out of the cut. Flood coolant handles the first and fails at the other two. For 316, 17-4PH and titanium, run through-tool high-pressure coolant at 70–100 bar. The jet lifts the chip off the rake face, which stops recutting and the sudden edge failure that follows.

Probing closes the loop on thermal drift. On a lathe running all day, spindle growth of 0.01–0.02 mm over a shift is normal. A probe check after roughing, with the offset written back automatically, keeps the finishing pass inside ±0.005 mm without an operator babysitting the machine. Skip this step and the last parts of a batch drift out of tolerance.

Maintenance is the cheapest precision tool you have. Check way lube level and turret clamp force weekly, measure backlash on the X and Z axes monthly, and log spindle runout quarterly. A turret that indexes 0.01 mm off will produce a step between tools that no offset can hide.

Do not ignore the chuck. Jaw wear and lost grip force show up as slip marks and size scatter long before the chuck fails outright. Replace top jaws on a schedule tied to part count.

When to outsource

When the Puma 2600 is not the right machine

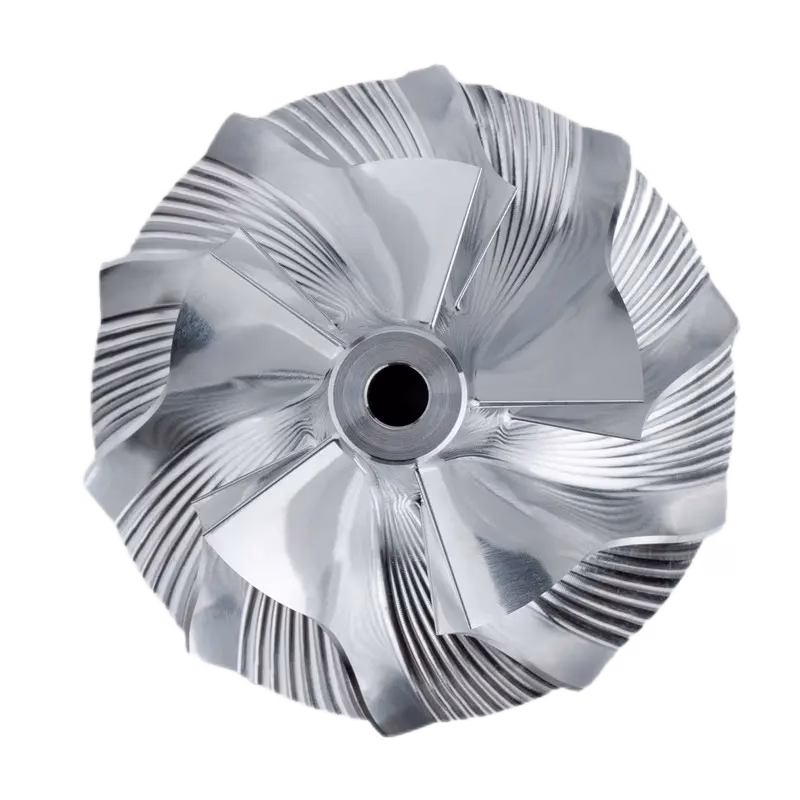

A box-way lathe with a 12-station turret is excellent at round parts with moderate feature count. It is the wrong choice when the part needs five faces machined in one setup, when the tolerance stack demands a single datum across milling and turning, or when the geometry is a thin-wall housing that will move after every clamp.

It is also the wrong choice for prototype quantities where setup time dominates. Cutting soft jaws, presetting tools and proving a program can take a full shift. For runs under roughly 20 pieces with complex geometry, a mill-turn center or a 5-axis machine usually delivers the first article faster, even at a higher hourly rate.

The practical rule: keep the Puma 2600 loaded with parts that repeat. High-volume shafts, bushings, fittings, valve bodies and threaded connectors belong there. One-off brackets and covers do not.

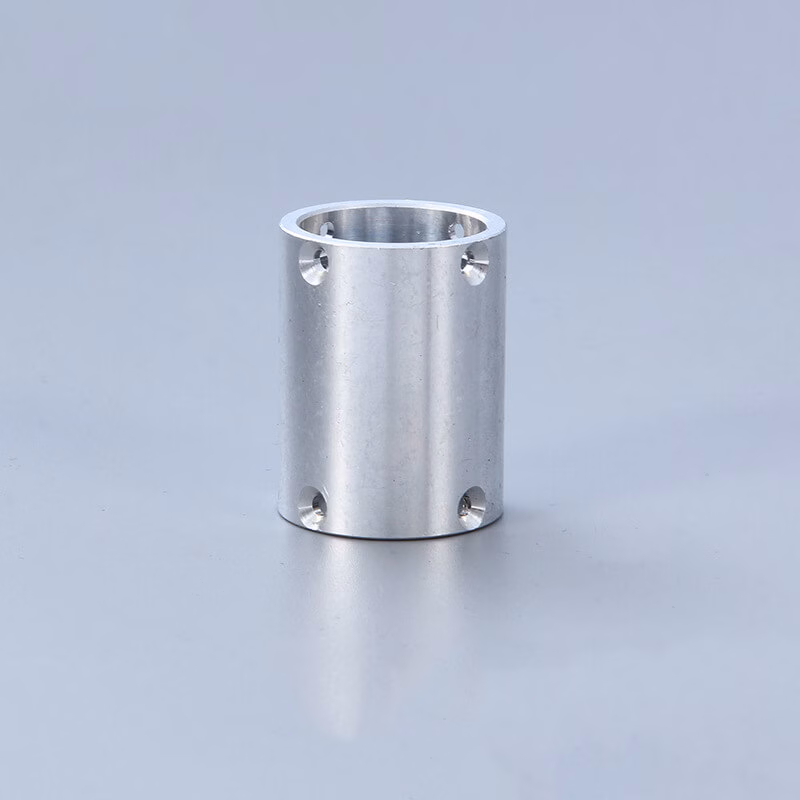

When a job does need both turning and milling, split it deliberately. Turn the round features on the lathe, then move to a 4-axis or 5-axis mill with a soft-jaw fixture that repeats location from the turned datum. Trying to force every feature onto the lathe costs more in fixture time than the second setup ever would.

Do this in order

Step by step: setting up a job on the Puma 2600

Follow the sequence; skipping step 3 is the most common cause of scrap on the first article.

  • 1
    Review the drawing for turning featuresSeparate turned diameters, bores, threads and any milled features. Anything off-axis belongs on a mill-turn or a second op, not on a forced lathe setup.
  • 2
    Choose the workholding before the toolingUnder 3× diameter overhang: 3-jaw or collet. Thin wall or long shaft: soft jaws bored to grip diameter, or an expanding mandrel plus tailstock. Record clamping pressure.
  • 3
    Cut the soft jaws and verify gripBore jaws to the actual stock diameter plus 0.05 mm. Clamp a test piece and check runout at the jaw face and 50 mm out. Target under 0.02 mm TIR before programming.
  • 4
    Set tool offsets with a presetterMeasure every tool offline. On-machine touch-off is fine for the first article, but a presetter removes 15–30 minutes of trial cutting per setup.
  • 5
    Rough with a fixed radial allowance1.5–3.0 mm radial depth, 0.25–0.35 mm/rev feed, constant surface speed per material. Leave 0.3–0.5 mm radial and 0.1 mm axial for finishing.
  • 6
    Verify with an in-process probeMeasure one or two critical diameters after roughing. Write the offset back and confirm the finishing pass has enough stock without cutting air.
  • 7
    Finish in two light passes0.2 mm then 0.1 mm radial, high surface speed, fresh edge. Check Ra on the first part rather than assuming the program value holds.
  • 8
    Log the first article and the driftRecord measured size at part 1, 10 and 50. If drift exceeds 0.005 mm, check coolant temperature and spindle warm-up before changing the program.
Quick reference

Material, speed, feed and coolant at a glance

Starting points for carbide turning on a rigid box-way lathe. Adjust for insert grade and depth of cut.

MaterialCutting speedFeed per revCoolant and note
1045 / 4140 steel180–260 m/min0.25–0.35 mmFlood; avoid speeds under 150 m/min
304 / 316 stainless120–180 m/min0.15–0.25 mmHigh pressure 70–100 bar; never dwell
6061 / 7075 aluminium300–600 m/min0.20–0.40 mmFlood; polished high-rake insert
Ti-6Al-4V titanium40–70 m/min0.10–0.20 mmThrough-tool 70–100 bar; sharp edge
17-4PH stainless100–150 m/min0.15–0.20 mmHigh pressure; light finishing passes
Inconel30–50 m/min0.10–0.15 mmHigh pressure; expect short edge life

The cost is in the setup, not the spindle

Get the workholding, the radial allowance and the probe loop right and the Puma 2600 will hold ±0.005 mm all shift. Fix it in the program afterward and you will chase drift forever.

FAQs

Questions we get about Puma 2600 turning

What tolerance can a Puma 2600 hold in production?

On a well-maintained machine with a controlled setup, ±0.005 mm on a turned diameter is realistic across a batch, provided the thermal drift is managed.

The limit is usually the workholding and the material, not the machine. Thin walls and long overhangs move more than the slide error does.

Why does my surface finish degrade in the last hour of a shift?

Spindle and coolant temperature rise, so the tool tip grows and the effective depth of cut changes slightly. Edge wear adds to it.

Check coolant temperature, re-verify one diameter with a probe, and compare the insert edge under magnification. In most cases the edge has reached end of life and the drift just makes it visible.

Do I need high-pressure coolant to turn stainless?

Not for every job, but for 316, 17-4PH and titanium it changes chip control more than any insert change will. Flood coolant tends to leave chips in the cut on deep bores and grooving.

If the machine has through-tool capability, run 70–100 bar and match the chipbreaker to the feed rate. If not, reduce feed and increase the number of passes rather than pushing a flooded cut.

How much stock should I leave for finishing?

0.3–0.5 mm radial for roughing, then a 0.2 mm and a 0.1 mm finish pass. That is enough to remove the deformed layer without loading the insert.

Leaving less than 0.1 mm risks rubbing, which work-hardens stainless and ruins the finish. Leaving more than 0.6 mm means the finish pass becomes a roughing pass again.

When should a turned part move to a 5-axis machine instead?

When more than two faces need machining, when the tolerance stack spans milled and turned features, or when the part is a thin-wall housing that deforms under chuck pressure.

For low quantities with mixed features, one 5-axis setup with a soft-jaw fixture is usually faster and more repeatable than turning plus a second operation.

Can I run a prototype on the Puma 2600 without a dedicated fixture?

Yes, for simple round parts held in a collet or standard jaws. Measure the first article carefully and expect to adjust offsets once.

For anything with a thin wall, an interrupted cut, or a tight roundness callout, the fixture cost pays for itself even at one piece, because it removes the trial-and-error cycles.
