7 CAM CNC Techniques to Drastically Boost Your Machining Efficiency

Traditional offset roughing keeps the cutter buried at full radial width. Heat builds in the corner, the flute loads up, and the tool dies young. Dynamic milling changes the engagement pattern instead of the machine. Radial engagement drops to 5–15% of the cutter diameter while axial depth goes deep, often one to two times the diameter. The cutter sweeps in smooth arcs and never sits in a full-width cut.

The payoff shows up in three places. Cutting forces stay even, so the spindle and the part see less vibration. Chip thinning at low radial engagement lets you raise feed per tooth well above the catalog value. Heat leaves with the chip rather than soaking into the edge. On 17-4PH or Ti-6Al-4V, a trochoidal path frequently doubles tool life against a conventional offset path on the same machine.

Trochoidal paths are not free. They produce more code, so look-ahead and block processing speed matter. If the control cannot keep up, the machine stutters and the arcs turn into facets. Check the actual feed rate on the screen against the programmed one before you trust the cycle time.

Where it does not fit: shallow pockets, thin-walled parts, and any setup with weak workholding. Low radial engagement still pushes the cutter sideways. If the vise or fixture flexes, you trade tool life for a scrapped part.

Point-to-point finishing is the wrong model for a curved surface. Sharp direction changes force the machine to accelerate and decelerate at every corner, and the servo lag shows up as marks on the wall. High-speed machining toolpaths keep the tool moving at a near-constant feed with wide, sweeping arcs and a controlled corner radius.

The gain is not just surface finish. Constant feed means constant chip load, which means predictable tool wear. On a mold cavity in 1.2343 tool steel, an HSM finishing path at Ra 0.8–1.6 μm often removes the need for a separate semi-finish pass. That is one less setup and one less tool change.

Two settings decide whether HSM works. The corner radius must be larger than the tool radius divided by the control's look-ahead capability, or the machine will overshoot. And the tolerance you program is not the tolerance you get. Program 0.005 mm for a finish that measures ±0.005 mm, not 0.05 mm and hope.

This technique suits contoured pockets, mold cores, and any part with blended radii. It suits flat floors less well. On a flat face, a face mill with a large stepover is still faster and leaves a better finish than a small ball cutter tracing arcs.

Programmed feed is a single number for a path that cuts very different amounts of material. In a corner, the same feed that works on a straight wall can triple the chip load and snap the cutter. Adaptive feed optimization reads the actual material removal rate along the path and adjusts the feed to hold it constant.

The control can do this from its own load monitor, or the CAM system can do it from the stock model. The CAM route is more accurate because it knows what the tool is about to hit. The control route is faster to set up and works on older machines. Either one beats a flat feed rate.

Measure before you believe. Run the path with the optimizer off, log spindle load, then run it on. On a deep cavity in 6061-T6 we typically see 15–25% cycle time reduction with no change in tool life. On a short, uniform path the gain is near zero and the extra code is not worth it.

Set the feed limits before you enable it. An optimizer with no upper bound will push a small cutter until it breaks. Cap the feed at the tool supplier's maximum, and cap the load at 80% of spindle continuous rating.

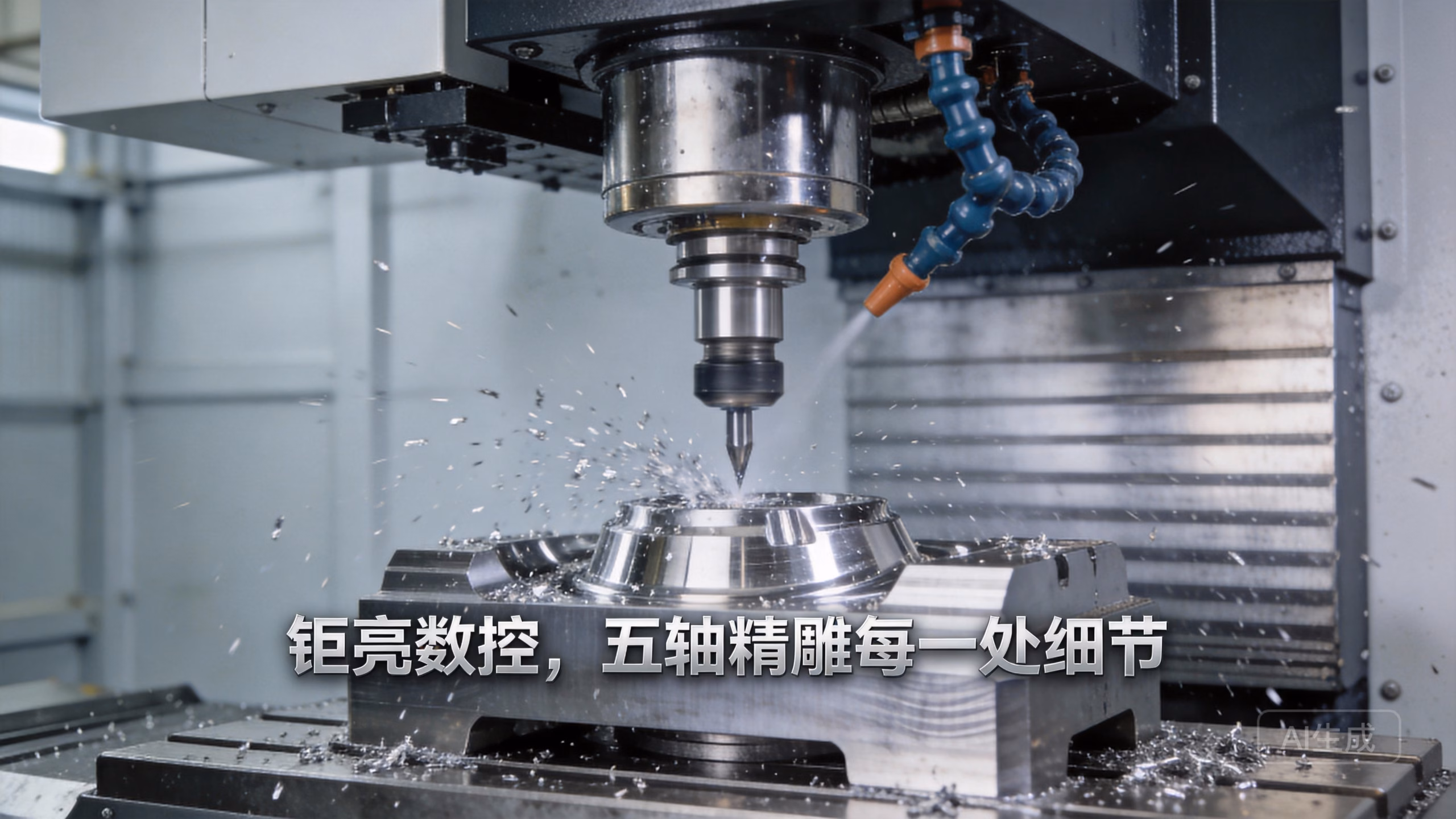

Simultaneous 5-axis is not about reaching five sides. It is about keeping the cutter in its best orientation while it moves. A ball nose cutter cuts at its tip, where surface speed is near zero. Tilt the tool 10–20° and the contact point moves up the flute, the effective cutting speed rises, and the finish improves.

On an impeller or a port with a compound curve, the alternative is a long 3-axis cutter with a large stickout. That is a chatter generator. Tilting the part or the head shortens the effective tool length and stiffens the cut. On a 16-machine 5-axis cell, we run these parts in one setup instead of three.

The cost is in the kinematics. Every rotary move adds a dynamic error to the tool tip. On a machine with a Ø400 mm rotary table, a 0.01° error at the table becomes a much larger error at the part edge. Check the machine's rotary accuracy before you program a tight tolerance on a tall part.

Where it does not fit: prismatic parts and any feature a 3-axis machine can reach. A 5-axis move on a part that does not need it adds cycle time and risk. Use 3+2 positioning instead when you only need access, not continuous motion.

A part with 40 small pockets spends a lot of time in the air. Retract height, rapid moves, and plunge points add up. On a job like that, linking strategy can cut more time than the cutting parameters. Keep the retract height just above the highest stock, not at machine home. Use horizontal arcs and ramps instead of vertical plunges.

Lead-in and lead-out matter for finish. A straight plunge into a wall leaves a mark. A tangential arc entry spreads the load and hides the entry point. On a sealing face or a bearing bore, that mark can be the difference between a pass and a rework.

The same applies to the exit. A cutter that leaves the cut at full feed leaves a witness mark. A short arc-out with a feed reduction at the last 2 mm removes it. It costs a few seconds per feature and saves a polishing step.

Do not over-tune linking on a proven job. If the path works and the parts pass inspection, leave it. Change one variable at a time and measure the cycle time before you keep the change.

A generic post-processor is a guess. It assumes the machine's pivot distance, tool gauge length, and rotary offsets match the CAM model. When they do not, the tool tip lands somewhere other than the programmed point. The error is small on a 3-axis machine and large on a 5-axis one.

Tune the post to the actual machine. Measure the pivot distance, enter the real tool holder geometry, and set the rotary axis offsets from a probe cycle, not from the spec sheet. On a mill-turn center with a Ø400 mm rotary table, that step alone can move the tool tip by tenths of a millimeter.

Kinematic tuning also covers feed limits on rotary axes. A rotary axis has a maximum speed in degrees per minute. If the CAM output asks for more, the control clamps it and the surface finish suffers. Post-processor settings should respect that limit and slow the linear axes to match.

This is the least visible of the seven techniques and often the one with the largest return. It costs a day of setup and pays back on every job that runs on that machine.

A crash costs more than a slow cycle. Simulation is how you avoid the crash without proving the program on the machine. A full material-removal simulation catches gouges, holder collisions, and travel-limit overruns before the first tool ever touches stock.

The value is highest on new setups and on parts near the machine's travel limits. On a 4,000 mm part, a single over-travel move can scrap the workpiece and damage the machine. Simulating the full setup, including the fixture and the clamps, takes an hour and removes that risk.

Simulation is not a substitute for a dry run. The model does not know that a chip is packed in a pocket or that a clamp moved. Use simulation to verify the path, then use a dry run at reduced feed to verify the setup.

On repeat jobs that have run for years, simulation adds little. Skip it there and spend the time on the next new setup.
