7 Fabrication CNC Machine Techniques That Lift Production Efficiency

This guide covers seven fabrication CNC machine techniques we use on production parts, plus the part geometry and lot sizes where each one actually pays off. It is written for manufacturing engineers and sourcing staff who have to judge a quoted process, not just read about it.

±0.005 mm tolerance16 five-axis centersNo MOQ12-hour quote

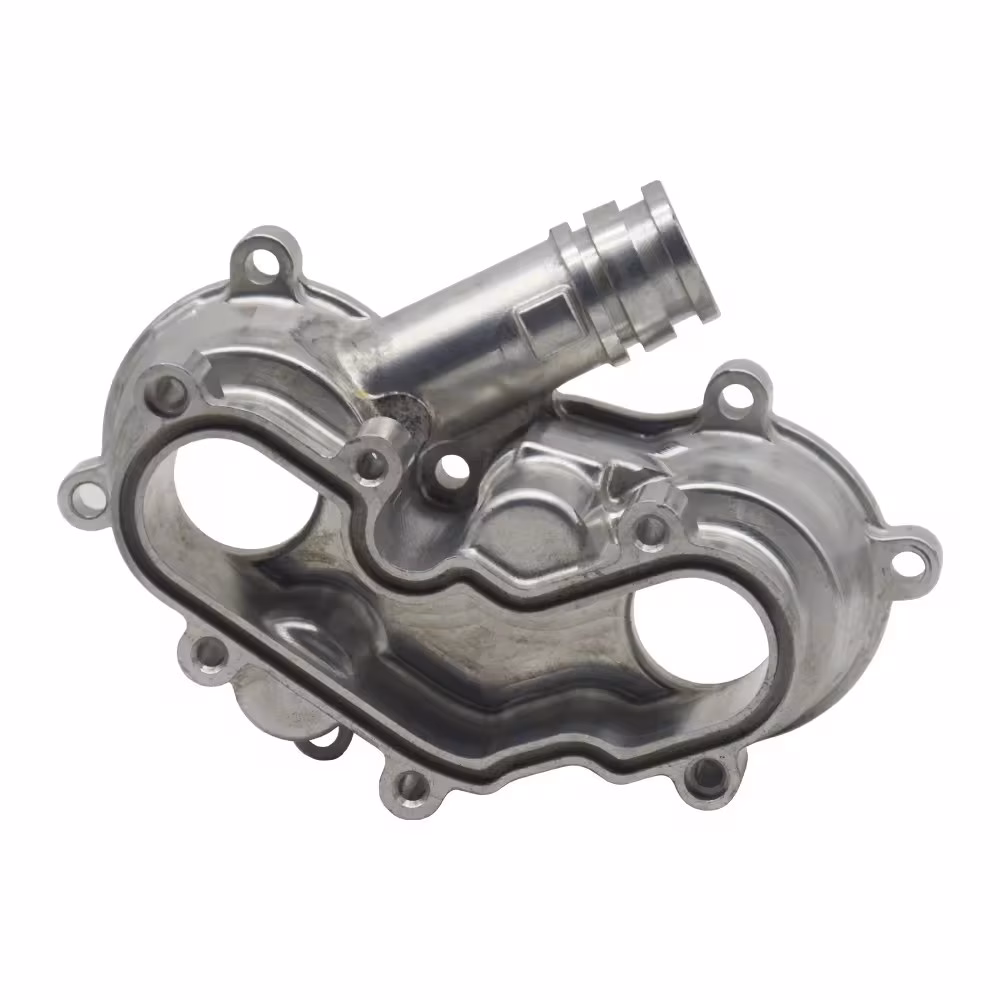

Custom Auto Spare Parts 5 Axis CNC Machining Engine Parts
Overview

How to Read These Seven Techniques

Each section states what the technique changes, which parts suit it, and when it is the wrong choice.

Technique 1

Trochoidal Toolpaths for High-Speed Roughing

High-speed machining is not a spindle speed setting. It is a cutting strategy built on light radial engagement and high feed per tooth. A trochoidal or peel path keeps the cutter in an arc of constant radial depth instead of burying it in a full-width slot. Chip load stays even, so heat leaves with the chip instead of soaking into the tool and the workpiece.

The comparison that matters is against conventional slotting. A full-width pass loads the flute along its whole length, which spikes cutting force and pushes the tool off line. Trochoidal roughing trades depth of cut for speed. Radial engagement of 5 to 10 percent of the cutter diameter with a higher feed rate removes more metal per minute in aluminium and mild steel, and the tool lasts longer because the heat is carried away.

Where it works best: pockets deeper than two times the cutter diameter, long slots, and thin-walled parts where deflection would ruin the finish. Where it does not: very small features that need a tool under 3 mm, and hardened tool steel above 45 HRC, where the chip load per tooth gets too small to cut cleanly.

The gain is real but it is not free. Trochoidal paths generate far more code and longer cycle times on the CAM side, so they pay off on batch work rather than one-off parts. For a run of 50 aluminium brackets, the roughing time drop is worth the programming hours.

Technique 2

Five-Axis Simultaneous Machining for Complex Geometry

Three linear axes plus two rotary axes moving at the same time let the tool reach undercuts, draft angles and freeform surfaces without re-fixturing. The real saving is not the axis count. It is the setups you do not have to do.

Every repositioning of a part adds error. Each new fixture has its own location tolerance, and each clamp-down can shift the workpiece. When a part has features on five sides, doing it in one five-axis cycle removes those stacked errors. A part that used to take four setups can be finished in one.

Our five-axis centers handle work up to 4,000 mm, with a Ø400 mm rotary table for smaller, denser parts. That covers engine housings, robot joints, impellers and long aerospace brackets. For tighter work, we hold ±0.005 mm with in-process probing on the first article.

Simultaneous five-axis is the wrong pick when the geometry is prismatic and three axes can reach it. Programming time, machine hour rate and setup complexity all rise. A 2.5-axis part on a five-axis machine is an expensive way to make a simple part.

Technique 3

Mill-Turn Centers and Swiss-Type Lathes

Turning and milling on one platform removes the handoff between two machines. A mill-turn center takes a bar or blank, turns the outside diameter, mills flats and slots, drills cross-holes, and drops a finished part. For parts with a turned body and milled features, that is one setup and one datum.

Swiss-type lathes go further for small, long parts. The guide bushing supports the work right at the cutting zone, so a shaft with a 5:1 length-to-diameter ratio does not whip. Medical pins, connector bodies and small valve spools are the classic fits. The trade-off is bar diameter: most Swiss machines top out well below the mill-turn range.

We run 16 mill-turn centers alongside dedicated three, four and five-axis mills. That mix lets us route a part to the machine that fits its shape rather than forcing every job onto one platform.

Skip multi-tasking when the part is a simple round with one turned feature. The setup and programming overhead on a mill-turn cell is higher than on a plain lathe, and the cycle time does not recover it.

Technique 4

Pallet Systems, Robot Tending and Unattended Hours

Spindle uptime is the single biggest lever on unit cost. A machine that stops for a load and unload every 20 minutes spends a large share of the shift not cutting. Pallet pools and robot tending break that cycle by keeping the next workpiece queued.

Automation changes what you can quote, not just how fast. Lights-out or lightly attended running spreads the setup cost over more parts, so a 200-piece run can be priced closer to a 2,000-piece run than a manual shop would manage.

It also changes the failure mode. A tool that breaks at 2 a.m. with nobody watching can scrap a whole pallet. We pair automated cells with tool-life monitoring and in-process probing, and we keep the first article on a manual check before the cell runs unattended.

Automation does not suit every job. Short one-off runs, parts with tight hand-finish steps, and geometries that need an operator to feel the cut are better left on a manned machine. We do not push a pallet system onto a five-piece prototype order.

Technique 5

In-Process Probing and Adaptive Control

A probe in the spindle measures the part while it is still clamped. That single ability catches drift before the run is finished, not after the parts reach inspection. We use it to set work offsets, verify a first article, and check critical features mid-run.

Adaptive control goes a step further. The controller reads spindle load and feed force, then adjusts feed rate in real time. In a casting with variable stock, that prevents the tool from burying itself in a thick section. Cycle time drops because the machine can push harder in the light areas.

These two techniques are what makes ±0.005 mm repeatable across a batch rather than just on the first part. Thermal growth, tool wear and material variation all move the cut over a long run. Probing and adaptive control pull it back.

The limits are practical. Probing adds cycle time, so it is worth it on critical features and not on every dimension. Adaptive control needs a stable baseline program. It corrects variation, it does not fix a bad toolpath.

Technique 6

Workholding That Holds the Part Still

Most dimensional problems trace back to the fixture, not the machine. A part that moves 0.02 mm under cutting force will not hold tolerance no matter how good the spindle is. Workholding is where a job is won or lost.

For thin-walled parts, vacuum chucks and custom soft jaws spread the clamping force over a wide area so the wall does not bow. For five-axis work, we use zero-point systems so a pallet can move between machines without losing its datum. For high-volume runs, dedicated fixtures cut load time and lock the part in the same place every cycle.

The choice depends on three things: how thin the part is, how many sides need machining, and how many pieces are coming. A single prototype might run on a vise and a set of soft jaws. A 5,000-piece order justifies a built fixture, because the load-time saving pays for it.

One caution: a fixture that grips hard enough to stop chatter can also distort a finished bore. We check clamping force against wall thickness and, where needed, finish the critical bore after the heavy cuts are done.

Technique 7

Simulation and Digital Twin Before the First Cut

A digital twin is a simulation of the machine, the tool, the holder and the part that runs the program before metal is cut. It catches collisions, over-travel and gouges that would otherwise show up on the machine.

The value is highest on five-axis work. Tool holder to fixture collisions are hard to see in a CAM viewport, and a crash on a five-axis center costs far more than a scrapped part. Simulation also verifies the post-processed code, not just the CAM path, so machine-specific limits are checked.

For our shop, simulation shortens the prove-out. A new five-axis program can be validated offline, then run with a proven setup sheet. That is part of how we quote a 12-hour turnaround on quotation and DFM feedback, and how production can start within 24 hours on a released order.

Simulation does not replace the first-article check. The model assumes nominal stock and a rigid setup. Real castings and real fixtures have variation, so we still probe the first part and inspect before the run continues.

Selection

Technique vs. Part Type and Lot Size

Use this as a first filter when you are deciding what to ask for in a quote.

TechniqueBest-fit part typeTypical lot sizeWatch out for
Trochoidal roughingDeep pockets, long slots10–10,000Extra CAM time on one-offs
Five-axis simultaneousImpellers, housings, joints1–5,000Overkill on prismatic parts
Mill-turn / SwissShafts, pins, connector bodies50–10,000+Bar diameter limits on Swiss
Pallet and robot tendingStable, repeatable parts200+Unattended tool breakage
Probing and adaptive controlCritical tolerances in a batch25+Added cycle time per check
Advanced workholdingThin walls, multi-side parts1–10,000Clamp distortion on bores
Simulation / digital twinComplex five-axis geometry1–1,000Still needs first-article check
FAQs

Questions Engineers Ask About These Techniques

Which technique gives the biggest cycle-time gain on aluminium parts?

Trochoidal roughing combined with adaptive control usually gives the largest drop. Radial engagement stays light, feed per tooth rises, and the controller pushes the feed in light sections instead of holding a conservative rate for the whole path.

The gain shrinks on small features. Once the cutter is under 3 mm, chip load per tooth gets too small for the strategy to help, and a conventional path is faster to program and run.

When is five-axis simultaneous machining not worth the cost?

When the part is prismatic and three axes can reach every feature without a second setup. Five-axis programming and machine hour rates are higher, and the setup complexity is not recovered on simple geometry.

A part with features on several faces, or with undercuts and freeform surfaces, is the case where the extra axes pay for themselves. The saving comes from removing setups, not from the axis count itself.

How do you hold ±0.005 mm across a production batch?

We combine in-process probing with a controlled first-article check. The probe sets work offsets and verifies critical features while the part is clamped, so thermal drift and tool wear are corrected inside the run.

It also depends on the fixture and the material. A stable setup and consistent stock remove most of the variation before the probe has to correct anything.

Can you run small prototype orders on the same techniques as production?

Yes, but selectively. Five-axis and mill-turn work well on single parts because they remove setups. Pallet automation and dedicated fixtures do not, because the setup cost is spread over too few pieces.

We route each order to the technique that fits its quantity. There is no minimum order quantity, so a one-off prototype and a 10,000-piece run go through different setups on purpose.

What tolerances and finishes can these techniques reach?

We hold ±0.005 mm ( ±0.0002 in ) on critical features and reach Ra 0.2–0.8 μm with fine finishing, with Ra 0.8–1.6 μm as a standard machined finish.

The technique matters as much as the machine. Probing and adaptive control protect tolerance over a long run, while simulation and good workholding protect it on the first part.

How do you handle tool breakage in an unattended cell?

We pair automated cells with tool-life monitoring and in-process probing, and we keep the first article on a manual check before the cell runs without an operator.

For materials that break tools easily, such as titanium and Inconel, we often run attended until the process is proven, then move to lightly attended running.

Send Drawings, Get a Process Route and a Quote

We review your files, flag the features that drive cost, and return a quotation with DFM feedback within 12 hours. Uploads stay confidential, and an NDA is available on request.

12-hour quote±0.005 mm toleranceNo MOQ100% inspection

Trusted by engineers and manufacturers worldwide

Tesla Ford Motor Company BYD Auto Denso Magna International Boeing Airbus Medtronic KUKA FANUC
