7 Reasons Why the CNC 2500x1300 Is Essential for Your Factorys Efficiency

A 2500 × 1300 mm worktable solves a specific class of problem: parts too big for a 750 mm machine and too few to justify a gantry. This page covers the seven reasons that size class pays off, and the symptoms engineers hit when a large machine is set up badly. The CNC 2500x1300 is not a bigger version of a small mill. It changes how you fixture, nest and inspect. Read it if you quote oversized plates, long housings or multi-part nests.

Get Instant Quote Talk to an Engineer

2500 × 1300 mm table±0.005 mmNesting 4-8 parts4-axis / 5-axis ready

7 reasons why the cnc 2500x1300 is essential for your factorys efficiency

On this page

CNC 2500x1300 symptoms, likely causes and fixes

Use this table before you tear down a setup. The left column is what the operator reports, the middle is the usual root cause on a CNC 2500x1300, the right is the first action.

Symptom	Likely cause	What to do
Face flatness drifts past 0.05 mm	Table sag or worn leveling pads	Re-level the bed, check pads, cut a test face
Chatter on tall thin walls	Workpiece overhang beyond support	Add mid-span jacks or reduce axial depth to 0.3 mm
Taper in deep pockets	Tool deflection, not machine error	Shorten gauge length, use a 12 mm carbide end mill
Chips pile in one corner	Coolant nozzles aimed at the wrong zone	Re-aim nozzles, raise flow to 40-70 bar
Nest parts drift out of position	Clamps loosened by thermal growth	Re-torque to spec after the first 30 minutes
Surface finish varies across the plate	Uneven clamping pressure	Switch to a vacuum plate or a uniform vise array
Cycle time climbs on long runs	Tool changes outweigh cutting time	Group parts by tool, not by part number
Small holes come out oval	Spindle pushed past its sweet spot	Cut finish passes at 6,000-8,000 rpm

Reason 1-2

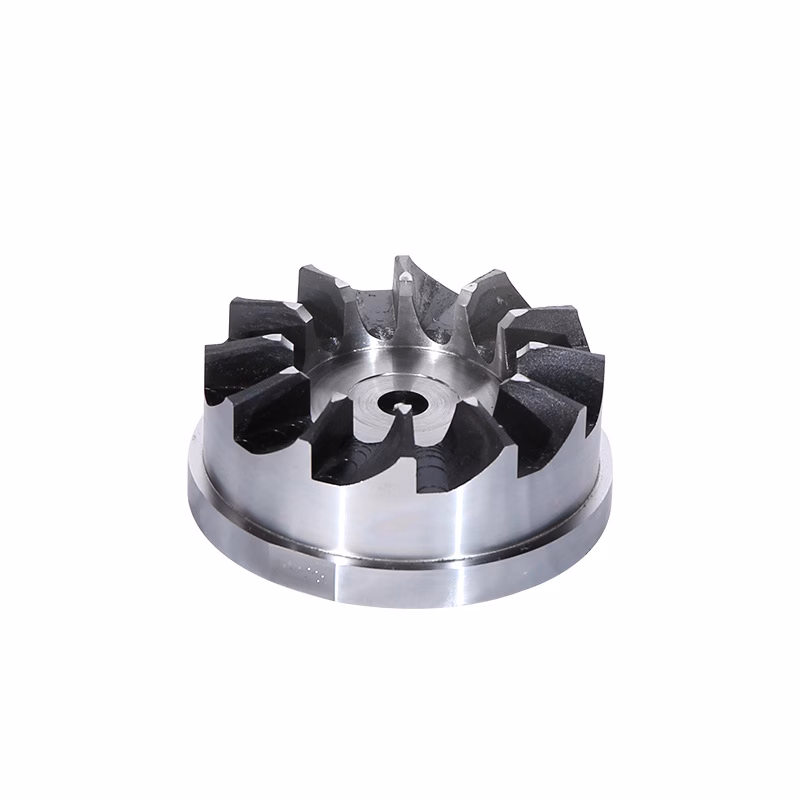

Why the CNC 2500x1300 handles oversized work in one setup

The first reason is simple geometry. A 2500 × 1300 mm table lets you clamp a 2,400 mm plate, a long weldment or a housing that would need two operations on a 750 mm machine. Every time a part moves to a second setup, you add a re-datum step, a re-clamp step and a chance for error. On a CNC 2500x1300, most of that disappears.

The second reason is nesting. On a table this size you can lay out four to eight smaller parts in one program and cut them in a single cycle. Setup time is charged once, not once per part. On high-mix work, setup often costs more than cutting. Nesting attacks that directly.

Neither reason is about raw speed. A smaller machine may cut a single small part faster because the axes travel less. The CNC 2500x1300 wins when the job mix includes large plates and families of similar parts that share a fixture.

In our Dongguan plant we run this size class on aluminium 6061, 7075 and 17-4PH, plus tool steel and Inconel when a job needs it. The table takes the load without a gantry frame, which keeps the footprint reasonable for a 7,600 m² floor.

1
Parts over 1,200 mmOne setup instead of two or three
2
Part familiesFour to eight pieces nested per cycle
3
Not forTiny high-volume parts with tight cycle targets

Reason 3-4

CNC 2500x1300 rigidity, damping and fixture costs

Rigidity comes from mass and from how the casting is ribbed. A 2500 × 1300 mm bed is heavy, and that weight damps vibration. On tall walls and deep pockets you can hear the difference. Chatter that forces a 0.2 mm axial depth on a light machine may allow 0.5 mm here.

Damping also protects finish. Tool tip vibration shows up as a Ra value. On aluminium, a stable setup holds Ra 0.8-1.6 μm without a separate finishing pass. On harder steels, it keeps Ra 1.6-3.2 μm predictable across the whole plate.

Fixture cost is the fourth reason. A big table does not need a clever custom fixture. A vacuum plate, a magnetic chuck or a plain vise array usually works. Those are reusable across part families, so tooling spend drops over a year.

The trade-off is real. A large table needs more floor space, more coolant and a bigger chip conveyor. If your parts are all under 300 mm, this size class is the wrong tool and you will pay for it in cycle time.

1
Vibration dampingHeavier bed, deeper axial cuts
2
Reusable fixturesVacuum plate, magnetic chuck, vise array
3
Wrong fitSmall parts, high volume, tight cycle time

Reason 5-7

CNC 2500x1300 with 4-axis and 5-axis trunnions, chip flow and ramp-up

A 2500 × 1300 mm table can carry a rotary table or a trunnion without crowding the work envelope. We run Ø400 mm rotary tables on this size class and cut four faces in one setup. That removes a second op and the re-datum that comes with it.

Chip management matters more on a large table than a small one. Chips travel further and settle in corners. High-flow coolant through the spindle, up to 70 bar, clears deep cavities and keeps the thermal load steady. A conveyor sized for the chip volume keeps the cycle running.

Scalability is the seventh reason. The same fixture and the same program run one prototype or a 10,000-part order. You do not re-fixture between a sample and a production run, so the first article and the last article come off the same setup.

That is the whole case. The CNC 2500x1300 is essential when your work is oversized, when setup cost dominates, or when you need four faces in one clamping. It is not essential when your parts are small and your volume is high.

1
Multi-axisØ400 mm rotary table, four faces in one setup
2
CoolantHigh-pressure through-spindle, up to 70 bar
3
ScaleSame fixture from prototype to 10,000+ parts

Setup routine

Step by step: setting up a CNC 2500x1300 job

Follow this order. Most large-table problems trace back to a skipped step, not to the machine.

1
Check the bed before anything elsePut a 0.02 mm dial indicator on a 1,000 mm straight edge and sweep the table in both directions. Anything past 0.03 mm means leveling pads need work. Do not chase accuracy with cutter comp when the bed is out.
2
Pick the fixture by part family, not by part numberIf the job shares a footprint with other work, use a vacuum plate or a vise array. Reserve custom fixtures for one-off geometry. A reusable plate pays back after about three jobs.
3
Set clamping pressure and re-check after 30 minutesThermal growth moves clamps on a long cycle. Torque to spec, run the roughing pass, then re-torque. On aluminium plates over 2,000 mm, expect 0.02-0.05 mm of movement.
4
Nest parts with at least 15 mm between themFifteen millimetres gives the cutter room and keeps chips from bridging two parts. Add a common datum hole in the nest so every part is measured from the same origin.
5
Set coolant flow for the chip volumeDeep pockets in steel need through-spindle pressure in the 40-70 bar range. Re-aim nozzles so no corner of the table is dry. Dry corners cause thermal drift, not just poor finish.
6
Cut a test face and record the resultTake a light facing pass across the full 2,500 mm and measure flatness. Log the number against the setup. The next job on the same fixture starts from that record instead of from zero.
7
Group tools, not parts, in the programOn long runs, fewer tool changes beat shorter travel. Sort operations by tool so each tool runs once across the whole nest. Cycle time often drops without touching feeds.

FAQs

Questions engineers ask about the CNC 2500x1300

What tolerance can a CNC 2500x1300 hold across the full table?

Across a full 2,500 mm span, ±0.005 mm is achievable on critical features when the bed is level and the fixture is rigid. Flatness across the whole plate is a different number from local feature tolerance.

Ask for the measurement method. A local bore can hold ±0.005 mm while the plate face holds 0.03 mm. Both are normal. Mixing them up causes arguments at incoming inspection.

When is a 2500 × 1300 mm table the wrong choice?

When every part fits in a 500 mm envelope and volume is high. A large table means longer axis travel, more coolant and a bigger footprint. On small parts, that shows up as cycle time you cannot recover.

The other wrong case is a part that is large but very light and thin. A big table does not fix a part that deflects under its own clamping force. Sometimes a fixture plate on a smaller machine is the better answer.

How do you stop chatter on tall walls on a large table?

Support the wall first, then adjust the cut. Mid-span jacks or a paraffin fill reduce overhang. After that, drop axial depth to 0.3 mm and raise spindle speed until the sound cleans up.

Do not chase chatter with feed alone. Feed changes the chip load, not the stiffness. If the wall rings at every feed, the setup is the problem.

Does a 4-axis or 5-axis trunnion fit on this table size?

Yes, if you plan the envelope. A Ø400 mm rotary table plus a trunnion takes space, and you still need clearance for the tool and the fixture. Lay it out in CAM before you commit.

The payoff is fewer setups. Four faces in one clamping removes a re-datum step and the error that comes with it. On complex geometry, that is usually worth the envelope cost.

How much coolant pressure does a large-table job need?

For aluminium, standard flood coolant is usually enough. For deep pockets in steel, stainless or Inconel, through-spindle pressure in the 40-70 bar range clears chips and holds the thermal load steady.

Watch the corners. A large table develops dry zones when nozzles are aimed at the centre. Dry zones cause dimensional drift, which looks like a machine fault but is a plumbing problem.

Can the same fixture run a prototype and a production order?

Yes, and that is one of the practical reasons to standardise on this size class. The prototype and the 10,000-part run come off the same plate and the same program.

The saving is not just tooling cost. It is the inspection argument. First article and last article share a datum, so the comparison is meaningful.
