Finding CNC Laser Cutting: 7 Checks Before You Send a PO

Most shops that advertise laser cutting are running a fiber or CO2 machine to a general tolerance and calling it done. That is fine for brackets, guards, and weld fixtures. It is not fine when the cut edge is a functional datum, when a slot has to locate a mating part, or when the kerf has to stay predictable across a batch of 2,000 pieces.

The practical difference shows up in three places: edge quality, kerf control, and heat input. A precision shop characterizes the kerf of each material and thickness, then locks the parameters before the first part is cut. Edge taper on 6 mm stainless should stay under 0.1 mm per side on a well-tuned machine.

Ask one question on the first call: what laser source and what assist gas do you use for 3 mm 304 stainless? Nitrogen gives a clean, oxide-free edge that welds and anodizes predictably. Oxygen is faster and cheaper, but leaves an oxide layer you will have to remove before plating or welding.

Thin gauge is where the two service levels diverge most. Below 1 mm, heat distortion, dross, and micro-cracking decide whether the part is usable. Copper, brass, and reflective alloys need a source rated for back-reflection, or the optics will degrade and the cut quality will drift mid-batch.

• 1
  Good fitBrackets, panels, slots and cutouts where the edge is not a datum
• 2
  Needs precisionMating slots, sealing faces, weld-prep edges, thin gauge under 1 mm
• 3
  Ask firstLaser source, assist gas, kerf data, and how they handle reflective metals

A certificate on the wall proves an audit happened. It does not prove the shop follows its own procedure on your job. The deeper check is whether the system is alive: are inspection records tied to a lot number, can they show you a first-article report from last month, and does the operator know what to measure on your drawing?

Walk the floor if you can. Look for calipers and micrometers at the machine, not locked in a QC room. Ask how they handle a deviation found at final inspection. A working system quarantines the lot, documents the cause, and tells you before you find out yourself.

The second question is whether the shop can finish the part or only cut the blank. Laser cutting rarely ships alone. A bracket usually needs deburring, bending, tapping, anodizing, or laser marking. Every handoff to another vendor adds a week, a tolerance stack, and a person who is not accountable for the final dimension.

GreatLight runs cutting, forming, machining, and finishing under one roof across 3 wholly-owned plants. That matters when a cut blank has to become a finished assembly with a ±0.005 mm bore and a Ra 0.8–1.6 μm surface. No shipping between vendors, no re discussion of who owns the rework.

Ask for the full routing before you order. If the answer stops at the cut edge, you are buying a blank, not a part. Budget the extra steps and the extra vendors yourself, and put that cost into the comparison on check seven.

• 1
  VerifyFirst-article reports, lot traceability, in-process inspection at the machine
• 2
  Red flagNo inspection record you can see, or records with no part number
• 3
  One roofCutting, forming, machining, finishing, and marking in one routing

An order taker quotes what you send. A process partner reads the drawing and tells you what will be hard. Good feedback sounds specific: this 0.5 mm slot in 4 mm aluminum will taper, move it to 0.8 mm and we hold it. That 90-degree corner needs a relief radius or the punch will tear the edge.

We do this before quoting. A DFM note comes back with the quotation, usually within 12 hours. It flags thin webs, sharp internal corners, hole diameters below material thickness, and features that need a second operation. Cheap fixes at the drawing stage; expensive fixes after the parts are cut.

Tolerance language is the next trap. Best effort means the shop will try and you absorb the fallout. Guaranteed means they have measured the process and will stand behind the number. Ask which one applies to your critical feature, and get it in writing on the quote.

Some features cannot be laser cut to a tight tolerance at all. A ±0.005 mm bore, a ground face, or a threaded hole belongs on a mill or a lathe. A shop that tells you this up front is more useful than one that says yes to everything.

Here is how we split it: laser for profiles and cutouts, machining for functional datums and bores, finishing for the surface. The routing follows the tightest feature on the drawing, not the cheapest process.

• 1
  Good feedbackNames the feature, the risk, and the fix in one sentence
• 2
  GuaranteedMeasured process capability, stated on the quote
• 3
  Best effortAcceptable for cosmetic edges, not for datums

Machine counts impress nobody who has stood on a shop floor. What matters is whether the specific machine fits your part. A 4,000 mm bed handles long weldments and rail sections. A Ø400 mm rotary table handles tubular cuts and features on a curved surface. Neither helps a 40 mm bracket.

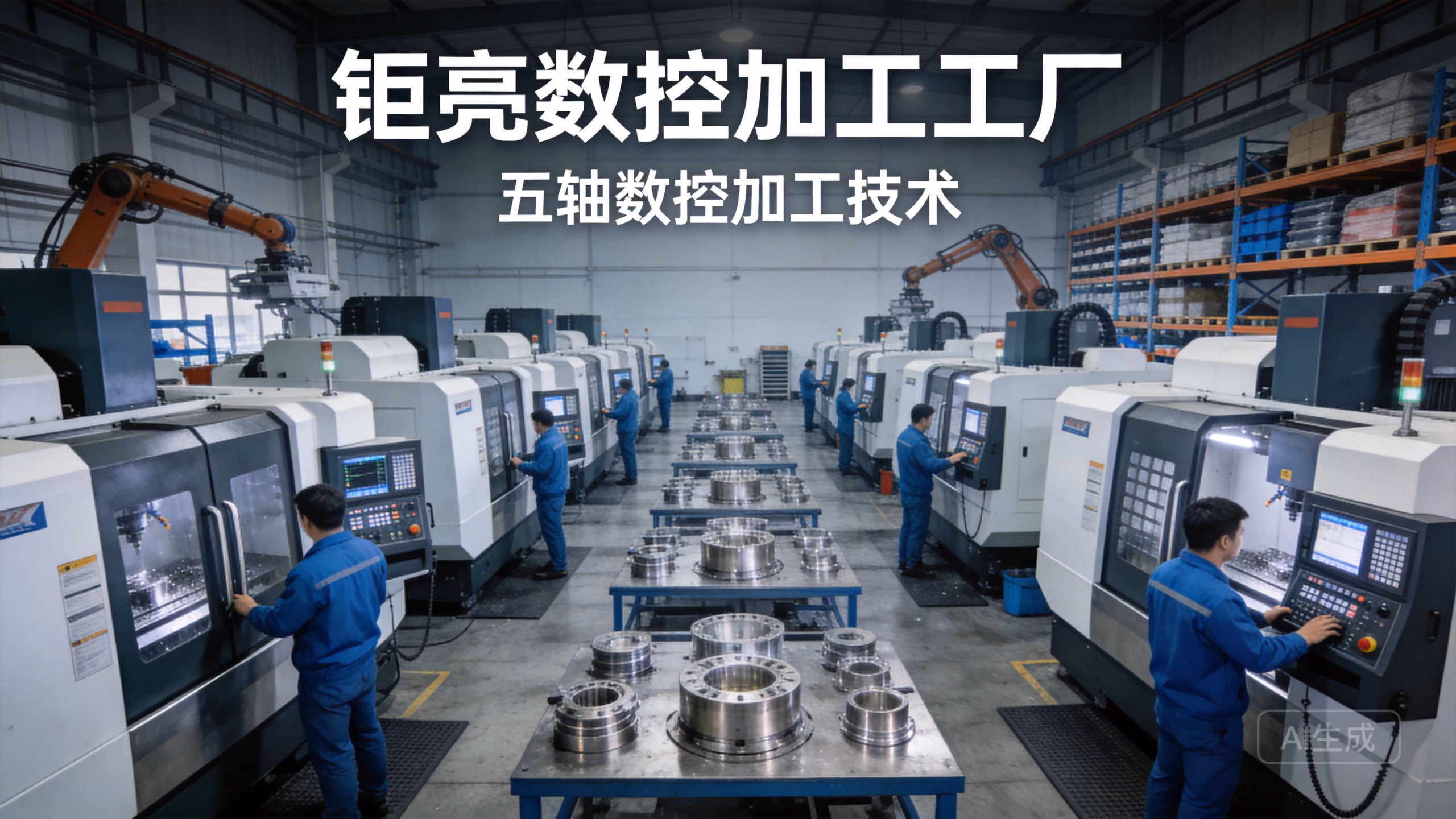

Tolerance capability follows the machine, not the brochure. A three-axis mill holds a flat face. A simultaneous five-axis center reaches an angled feature in one setup, which removes a re-fixture and the stack-up that comes with it. We keep 16 simultaneous 5-axis centers, 12 four-axis mills, 27 three-axis machines, and 16 mill-turn centers for exactly this reason.

Material range is the other half of the list. Aluminum grades, stainless, tool steel, copper alloys, titanium, Inconel, and engineering plastics all behave differently under a laser and a cutter. A shop that lists everything but stocks nothing may be brokering your job.

Ask what they cut last month in your material and thickness, and ask for the parameter set. A real answer includes assist gas, focus position, and cutting speed. A vague answer means you are the first one to try it.

• 1
  Match the bed4,000 mm parts need a 4,000 mm machine, not a promise
• 2
  Match the axisAngled features and curved surfaces need 5-axis or a rotary table
• 3
  Match the materialConfirm they cut your grade and thickness regularly

Piece price is the number on the quote. Total cost is what you pay by the time the assembly ships. Add scrap rate, rework, incoming inspection, expedited freight after a late delivery, and the engineering hours spent chasing status. Those lines often exceed the difference between two quotes.

A low quote with a 90% first-pass yield costs more than a higher quote at 99.99%. Run the arithmetic on your own volumes. If a batch of 500 needs 50 replacements at 90% yield, the second run, the second inspection, and the schedule slip land on your desk, not the supplier's.

Lead time is part of the same equation. A quote that arrives in three days delays every downstream step. We return quotations with a free DFM analysis within 12 hours, start production within 24 hours, and ship most parts in 3–5 days. That schedule is built on in-house routing, not on a broker's promise.

Prototype and volume pricing should come from the same process. A shop that cuts one part on a different machine than the 10,000-piece run will hand you a surprise at scale. Ask how the first article relates to the production process. No minimum order quantity means you can test the process before you commit to volume.

Confidentiality belongs in this check too. Your CAD files carry your product. Uploads should be protected, and an NDA should be available on request. That is a cost you avoid by choosing the right partner once.

• 1
  Add inScrap, rework, incoming inspection, expedited freight, admin time
• 2
  CompareYield-adjusted cost per good part, not the quoted piece price
• 3
  CheckSame process for prototype and production, NDA on request
