Atomstack CNC Laser: 7 Tips to Hold Engraving Precision
This guide is for engineers and shop leads who run an Atomstack CNC laser on small production and prototype work. It covers the seven setup and parameter decisions that decide whether an engraving repeats at the same depth and contrast on the next part. Read it to judge which knobs actually matter on your material and which ones you can leave alone.
What Decides Engraving Repeatability
Seven settings, ranked by how much they move the result.
Material Response and Focus Height
Every material answers laser energy differently. Thermal conductivity, surface reflectivity and vaporization temperature set the depth you get at a given power, and they also set how sharp the edge looks. Anodized aluminum absorbs the beam well and marks bright white with almost no depth, while bare aluminum throws most of the beam back and needs a marking compound or a different source entirely.
Plastics behave on the other end of the scale. ABS and PMMA melt rather than vaporize, so a fast pass at high power leaves bubbles and a raised lip. Drop to 20–30 percent power and 50–100 mm/min and the cut edge stays clean. Keep a log per substrate: power, feed, passes, focus offset. After a few jobs the log replaces guesswork.
On an Atomstack CNC laser the lens is fixed, so focus height is set by the Z gap between nozzle and part. A 0.1 mm error in that gap costs roughly 15–20 percent of power density, because the beam profile is Gaussian and the waist is narrow. Ground fixtures and a dial indicator get the gap repeatable to ±25 μm, which is the difference between a uniform field of text and one that fades across the plate.
Optics, Pulse Frequency and DPI
Contamination on the focusing lens is the quiet killer. A single fingerprint scatters a large share of the beam, so the mark blurs and the effective power drops. Open-frame Atomstack modules pull in shop dust, so wipe the lens with lint-free wipes and reagent-grade solvent before each run, and check the protective window for pitting. Replace a pitted window rather than turning power up to compensate.
Pulse frequency and DPI are linked, not independent. Frequency controls how many pulses land per second; DPI controls how far the head travels between scan lines. Set DPI too high for the spot size and consecutive lines overlap, which burns the surface and slows the job for no gain. Set it too low and you see banding on anodized surfaces.
A practical starting point is a line spacing near the measured spot diameter. For a 0.08 mm spot, 300 DPI gives about 0.085 mm spacing and reads as solid. Go to 600 DPI only when the artwork has fine halftones or small text, and expect the run time to roughly double. Vector outlines for logos and raster fills for photographs, not one strategy for both.
Starting Parameters by Substrate
Adjust from these, then log what your machine actually does.
| Substrate | Power | Line spacing | Notes |
|---|---|---|---|
| Anodized aluminum | 20–40% | 0.08–0.10 mm | Marks white, almost no depth |
| Bare aluminum | Not suitable | — | Reflects most of the beam; use marking compound |
| ABS / PMMA | 20–30% | 0.10 mm | Slow feed to avoid bubbles |
| Stainless 304 | 60–80% | 0.05 mm | Needs air assist and multiple passes |
| POM / PEEK | 25–35% | 0.10 mm | Watch for fume build-up |
| Powder coated steel | 30–50% | 0.08 mm | Removes coating, exposes base |
Ambient Control and Vector vs Raster
Air assist does two jobs: it clears vapor before it re-deposits on the lens, and it cools the cut zone so the edge stays crisp. Too much pressure on thin substrates lifts the part or blows the mark off-axis. Start near 10–15 psi for marking and raise it for cutting. Shop temperature matters too; a 10 °C swing changes focus on long beds and shifts the contrast on anodized parts between morning and afternoon runs.
Vector and raster are different processes with different failure modes. Vector outlines follow a path, so they hold a constant kerf and stay sharp at any scale, which suits logos, serial numbers and cut profiles. Raster fills scan the whole area, so they carry tone and gradient but cost time proportional to area. Mixing the two in one file is normal; mixing the parameters in one file is where scrap comes from.
For serialized parts, engrave one test coupon per batch, measure the depth with a stylus or optical comparator, and only then release the run. That single coupon catches a dirty lens, a drifted focus gap or a low-pressure air line before it costs a whole plate.
Validation and When to Hand It to CNC
Validation is not a formality, it is the control loop. Measure depth, edge width and contrast on the first part of every batch, and record the machine state alongside it. When numbers drift, you have a trace to the cause instead of a guess. A short checklist beats a long procedure nobody reads.

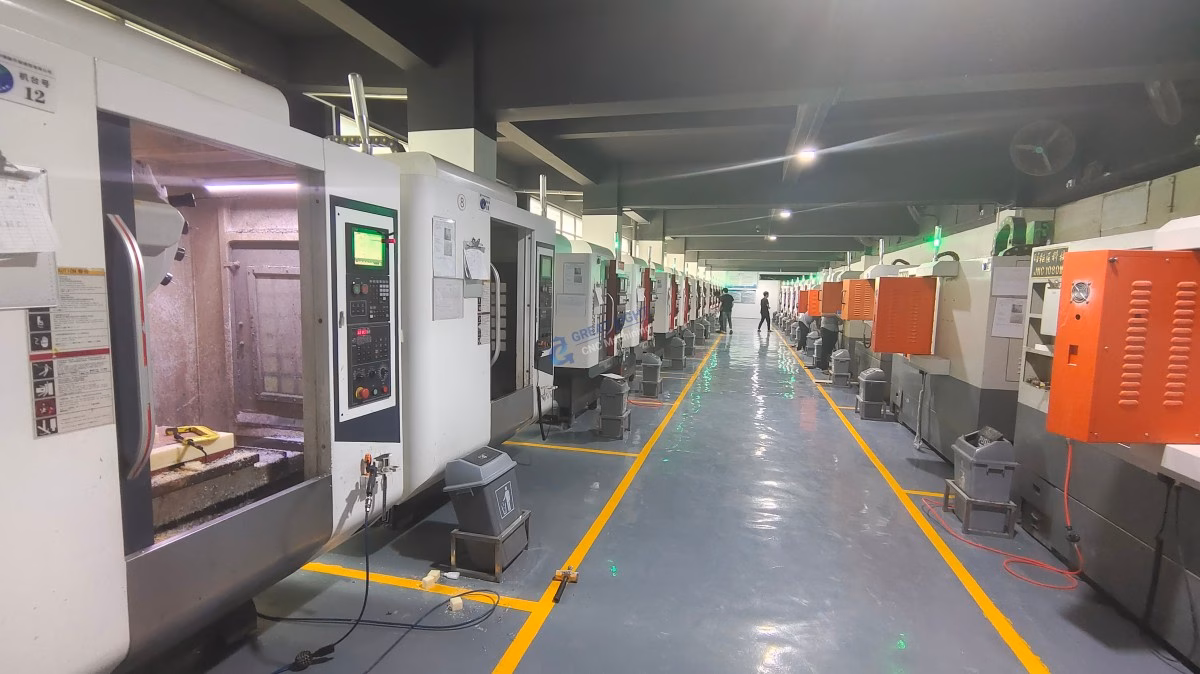

Know the limits of the process. A laser marks a surface; it does not hold a bore to ±0.005 mm, cut a thread or produce a flat sealing face. When the part needs a real tolerance, the engraving goes on after the machining, not instead of it. That is the point where desktop laser work meets a production floor.

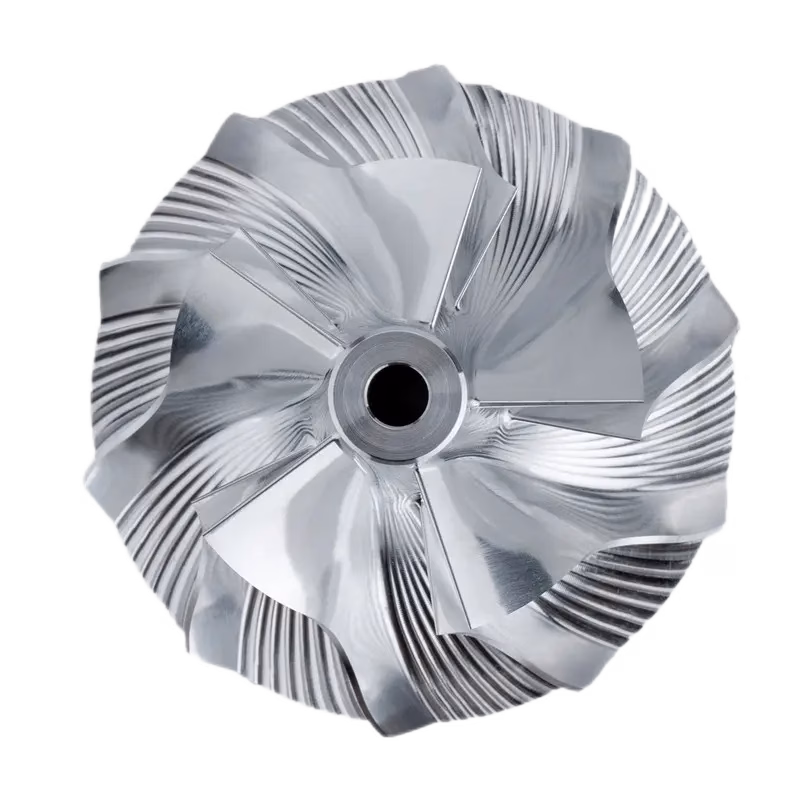

We machine the substrate to ±0.005 mm and a fine finish of Ra 0.2–0.8 μm, then apply laser marking with a minimum character height of 1.5 mm. Anodizing, plating and powder coating are available before or after marking depending on the look you want. Send the file and we will tell you whether the mark should go on before or after the finish.
Questions Engineers Ask
Why does my mark fade across the plate?
Almost always focus drift, not power. The beam waist is narrow, so a small change in the nozzle-to-part gap drops power density across the field.
Check the bed for flatness, clamp the part, and set the gap on a ground fixture. Re-measure after a warm-up run.
Can I engrave bare aluminum with an Atomstack CNC laser?
Not directly at useful contrast. Bare aluminum reflects most of the beam, so the mark comes out faint and inconsistent.
Use a marking compound, or anodize the surface first and mark the oxide layer. Anodized parts mark bright white and repeat well.
How often should the lens be cleaned?
Before each production run on open-frame modules, and more often in a dusty shop. Check the protective window at the same time.
A pitted or hazy window cannot be cleaned back to spec. Replace it instead of raising power.
Vector or raster for a serial number?
Vector. The stroke follows a path, so the line width stays constant and the characters stay legible at small sizes.
Raster is for tone and filled areas. Use it for logos with gradient or photographic detail, not for text.
Does air assist change the mark depth?
It changes the edge more than the depth. Air clears vapor before it settles back on the surface, which keeps the edge clean and the contrast even.
Too much pressure on thin stock can lift the part. Start low and raise it only if you see residue.
When should the part go to CNC instead?
When the drawing calls for a real tolerance, a thread, a bore or a flat face. A laser marks a surface; it does not remove material to size.
Machine first to ±0.005 mm, then engrave. Marking before anodizing or plating is usually the more durable order.
