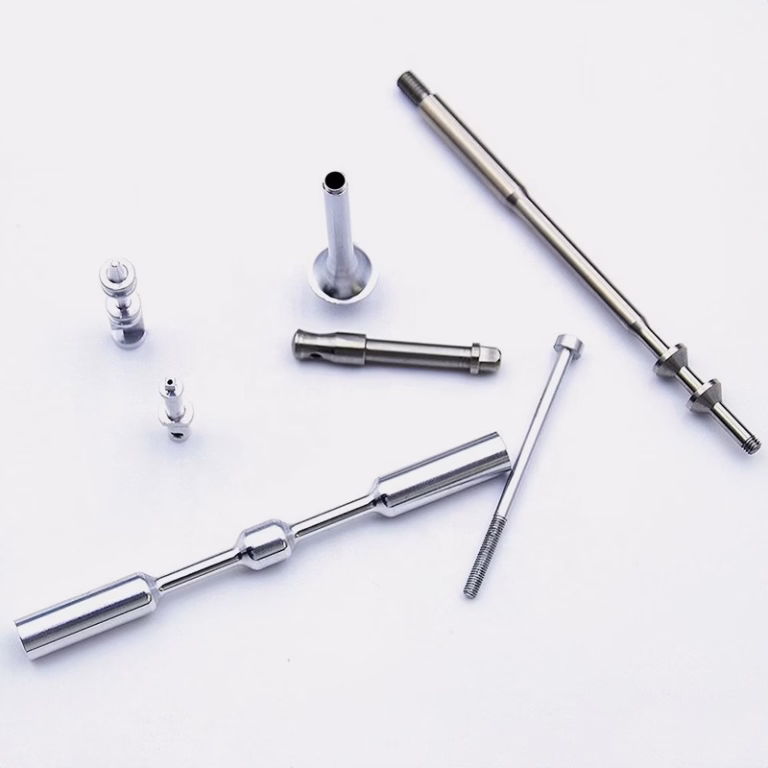

A CNC machining prototyping service turns a 3D model into a physical part by subtractive cutting, usually within days. The output is a real material sample: same alloy, same wall thickness, same threads as the intended production part. That is the difference from 3D printing. You can torque a bolt into a machined aluminum prototype and measure how the joint behaves.

The work usually starts from a STEP or IGES file. The shop reviews it for machinable geometry, then returns a quote with DFM notes. Those notes matter more than the price line. A deep pocket with a 2 mm corner radius, a 0.5 mm wall on a 60 mm tall boss, or a hole that breaks into a slanted surface will each change the process plan.

Prototypes serve different purposes. A fit-check part can run at ±0.1 mm and ship fast. A functional test part that sees load, heat, or fluid needs the tolerance and finish called out on the drawing, and often a specific heat-treat or surface treatment. Tell the shop which one you need. The process plan, and the price, will differ.

• 1
  Fit and form checksLooser tolerance, no finish, fastest turnaround.
• 2
  Functional testingReal alloy, tighter tolerance, defined surface finish.
• 3
  Pre-production validationSame process and inspection as the production run.

Tolerance is where most prototype quotes diverge. A title-block tolerance of ±0.1 mm and a feature-specific ±0.005 mm are not the same job. The second one requires a finishing pass, temperature-stable measurement, and often a 5-axis setup to reach the feature in one clamping. Ask the shop to confirm the tight features in writing before you approve the quote.

Surface finish follows the same logic. As-machined aluminum lands around Ra 1.6–3.2 μm. A sealing face or a sliding bore may need Ra 0.8–1.6 μm, and optical or bearing surfaces can go to Ra 0.2–0.8 μm. Each step adds a pass and a measurement. Specify finish on the features that need it, not across the whole part.

Material choice drives both. Aluminum 6061-T6 machines cleanly and holds ±0.005 mm well. Stainless 316L work-hardens, so heavy radial cuts and small tools need slower feeds. Titanium Ti-6Al-4V and Inconel cut hot and wear tools fast, which is fine for a prototype but shows up in the price. Plastic prototypes behave differently again: POM and PEEK hold dimensions, while ABS and PP flex and can deflect under clamping.

• 1
  Aluminum 6061-T6Good default for structural prototypes at tight tolerance.
• 2
  Stainless 303 / 316LCorrosion resistance; 303 machines easier than 316L.
• 3
  Ti-6Al-4V / InconelHigh strength and heat; slower cutting, higher cost.
• 4
  POM / PEEKDimensionally stable plastics for functional test parts.

For a single prototype, the clock starts at the quote. A useful benchmark is quotation and free DFM analysis within 12 hours, production start within 24 hours, and parts shipping in 3–5 days. If a supplier cannot commit to a quote window, the production window is usually loose as well.

Quantity is the other variable. A prototyping service should accept one piece and hold the same inspection standard it would apply to a 10,000-part run. No minimum order quantity is the norm for this work, and it is a fair question to ask directly. Some shops quote one piece but schedule it behind production orders, which stretches the lead time without changing the price.

Price is driven by setup, not by material volume. A 5-axis setup that reaches five faces in one clamping can cost less than three separate 3-axis setups, even though the machine rate is higher. That is why the cheapest quote per hour is not always the cheapest part. Ask how many setups the shop plans, and whether the part can be cut from a single block.

• 1
  Quote in 12 hoursIncludes DFM analysis, not just a price.
• 2
  Start in 24 hoursMaterial and fixtures are the usual delay points.
• 3
  Ship in 3–5 daysStandard for single-piece machined prototypes.

Certification decides which programs you can enter. ISO 9001:2015 covers general quality management and is the baseline. IATF 16949:2016 is required for automotive and EV work, and ISO 13485:2016 for medical devices. ISO 27001:2022 covers information security, which matters when your CAD files describe an unreleased product.

Ask for the scope of the certificate, not just the logo. A certificate covering machining of metal parts is different from one covering assembly or coating. If your prototype needs anodizing or laser marking, confirm whether that step is inside the certified scope or subcontracted.

Confidentiality is a practical concern for prototypes because the geometry is new. Uploads should be handled as confidential, and an NDA should be available on request before you send files. For medical and defense-adjacent work, ask how long files are retained and who can access them. A short written answer is usually enough.

• 1
  ISO 9001:2015General machining quality baseline.
• 2
  IATF 16949:2016Automotive and EV programs.
• 3
  ISO 13485:2016Medical device components.
• 4
  ISO 27001:2022Information security for your design files.

Machining is not always the fastest path. If the part is a hollow shell with 1 mm walls and no tight features, vacuum casting or 3D printing will produce it in less time and at lower cost. Machining a thin-wall shell means light passes, soft jaws, and a real risk of chatter. The result may look right and measure wrong.

Very small quantities of a complex casting geometry are another mismatch. If the final part will be die cast or injection molded, machining a prototype from solid stock proves function but not the production process. That is acceptable for a fit check. It is not acceptable if you need to validate mold flow or casting porosity.

The third case is a part with deep internal channels that no tool can reach. A 5-axis machine can approach many angles, but not around a closed bend. If the channel is essential to function, consider printing the prototype or splitting the part for machining and joining it afterward. Decide this at the design stage, not after the quote.

• 1
  Thin hollow shellsVacuum casting or printing is cheaper and faster.
• 2
  Casting or molding validationMachined stock does not prove the production process.
• 3
  Closed internal channelsNo cutter reaches around a bend; split or print.

Capacity tells you what the shop can actually cut. A supplier with 16 simultaneous 5-axis machining centers, 12 four-axis mills, 27 three-axis machines, and 16 mill-turn centers can route a prototype to the right machine instead of forcing it onto one. Maximum processing size is 4,000 mm, with common travels of 750 × 1,150 × 550 mm and 600 × 600 × 600 mm for medium parts.

For small, high-feature parts, a Ø400 mm rotary table on a 4-axis mill often beats a 5-axis setup on cost. For parts with features on five faces, one 5-axis clamping removes the stack-up error that comes from three separate setups. The choice is geometric, not a matter of which machine is newer.

Ask which machine will run your part and how many setups it needs. A shop that answers in specifics is quoting from a process plan. A shop that answers vaguely is quoting from a rate table, and the difference shows up when the first article is inspected.

• 1
  5-axisFive-face features in one clamping, less stack-up error.
• 2
  4-axis with rotary tableCost-effective for cylindrical and radial features.
• 3
  Mill-turnShafts and fittings with turning plus cross-features.
