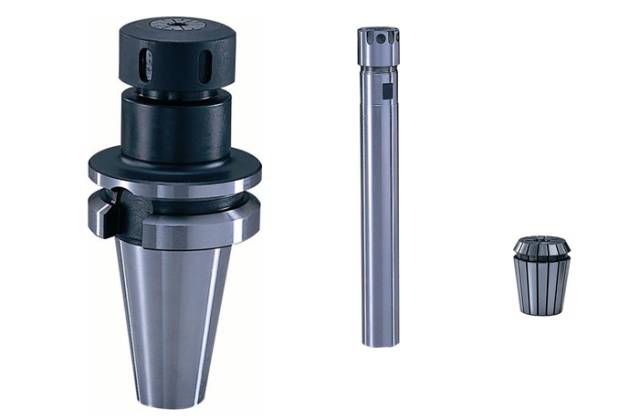

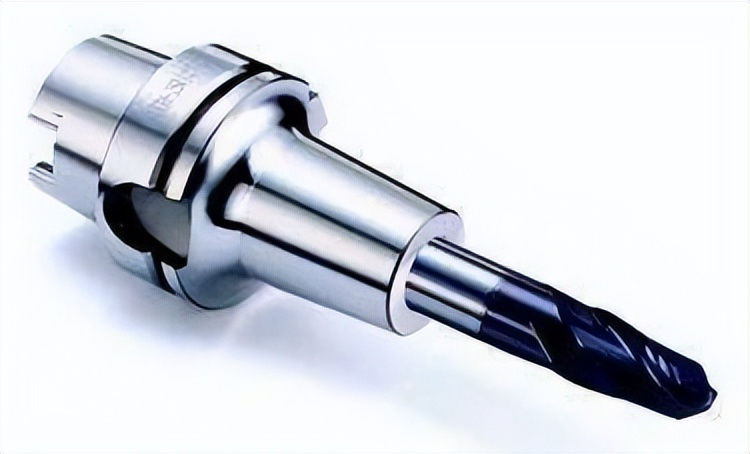

CNC stab handles, usually called tool holders in English catalogs, clamp the cutting tool and lock it into the machine spindle. Two things happen at once. The taper seats against the spindle cone and centers the tool, and a pull stud at the back is grabbed by a drawbar or gripper that pulls the taper into place.

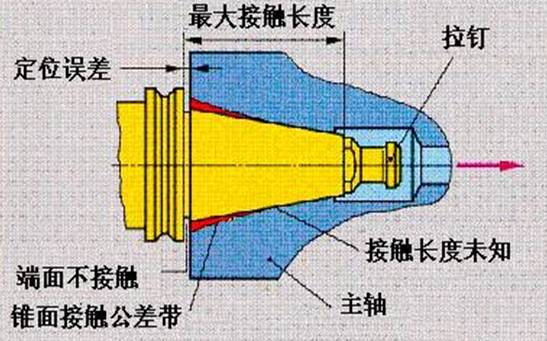

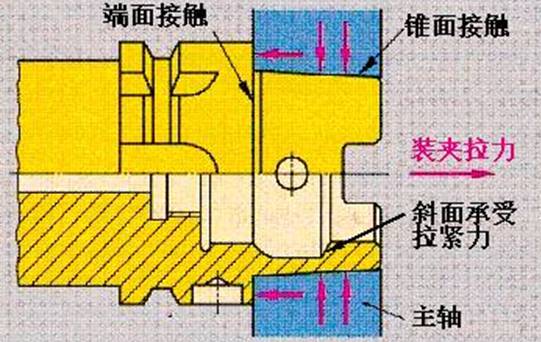

The 7:24 taper is the standard for machining centers. Seven units of diameter change for every twenty-four units of length gives a shallow cone, roughly 16.26 degrees included angle. That shallow angle turns axial pull into a very tight radial fit, so the holder resists side load without a drive key.

The pull stud does the actual holding. A retention knob is threaded into the back of the holder, and the drawbar grips it with a spring stack or a set of balls. Pull stud length and thread are not universal. A stud that is 1 mm too long will not seat, and one that is too short will not release.

Keep the contact surfaces clean. A chip or a film of coolant on the taper costs you concentricity. On a 40 taper holder, a 0.01 mm particle can push runout past 0.02 mm at the tool tip.

• 1
  Taper centers the toolShallow cone gives radial stiffness without a key.
• 2
  Pull stud holds itThread and gauge length must match the spindle.
• 3
  Cleanliness mattersDebris on the taper shows up as runout.

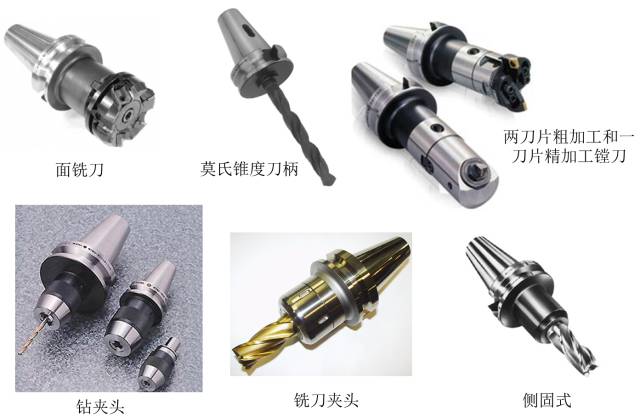

BT is the most common 7:24 holder outside North America. It uses a metric flange and a JIS-style pull stud. BT 30, BT 40 and BT 50 cover most milling work, and BT 40 is the workhorse on a typical vertical machining center with a 750 × 1,150 × 550 mm envelope.

NT is the older NMTB pattern, a 7:24 taper with a longer straight shank behind the flange. It works fine for low-speed drilling and face milling, but it is not the first choice for high-speed work because the extra mass adds spindle load.

JT is a Jacobs taper, not a 7:24 taper. It is used for drill chucks and small tooling, and the included angle is much steeper, so it self-releases. JT holders are for drilling and light reaming, not for side milling.

IT is a smaller steep-taper family used on compact machines and drill-tap centers. It holds well in axial load and poorly in radial load. CAT is the North American 7:24 pattern, dimensionally close to BT but with an imperial flange and a different pull stud.

• 1
  BTMetric flange, common on Asian and European machines.
• 2
  NTOld NMTB pattern, heavier, low-speed work.
• 3
  JT / ITSteep tapers, axial load only.
• 4
  CATImperial flange, common on US-built machines.

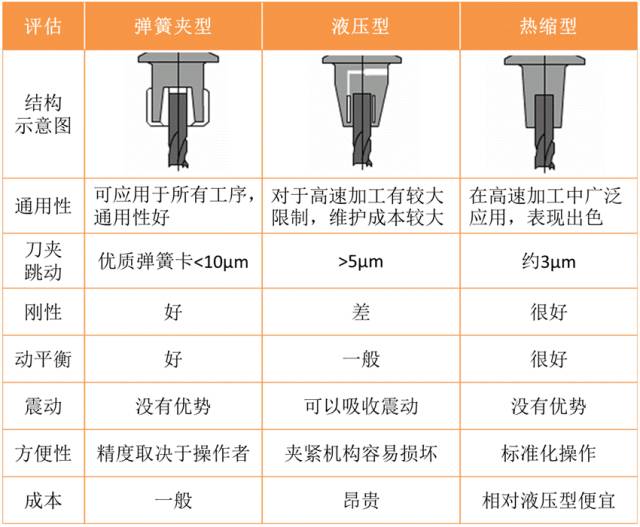

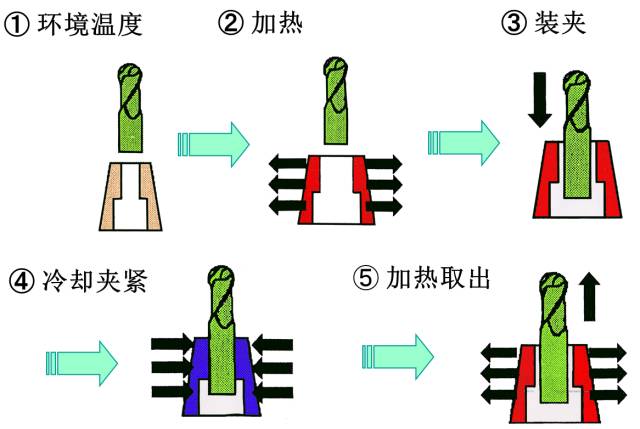

Start with the spindle taper, not the catalog photo. A BT 40 machine cannot take a CAT 40 holder unless the pull stud and flange are converted, and even then the drawbar may not match. Check the machine manual for taper size, pull stud standard and maximum tool weight.

Next, look at the operation. Face milling and boring put load along the axis, so a steeper taper like JT or IT can work. Side milling, slotting and helical interpolation put load sideways, so you want a 7:24 taper with a short gauge length and a rigid flange.

Balance class matters once spindle speed climbs. A holder balanced to G2.5 at 12,000 rpm is fine for most milling. Above 20,000 rpm, imbalance shows up as chatter and poor surface finish, and the tool life drops.

Finally, check the retention knob torque and the drawbar force. Too little force and the taper slips under load. Too much and you deform the holder back face. The machine builder gives a range, and it is worth following it.

• 1
  Match the taper firstBT, CAT, NT, JT and IT do not interchange.
• 2
  Match load directionAxial work tolerates steep tapers, radial work does not.
• 3
  Check balance classG2.5 at 12,000 rpm covers most milling.
• 4
  Follow drawbar forceThe builder's range protects the holder and the spindle.

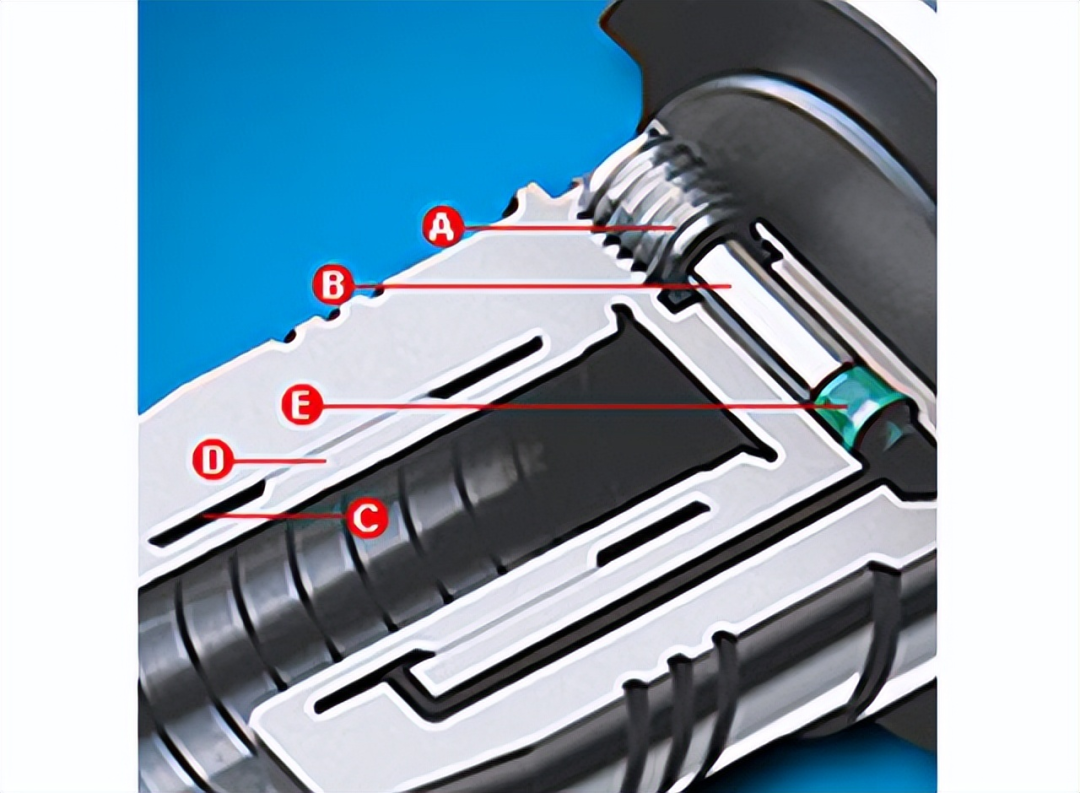

Holder choice shows up in the part. On a 16 simultaneous 5-axis machining center, a long holder with a small nose diameter reaches into pockets that a short BT 50 holder cannot. The trade-off is rigidity. Reach costs stiffness, and stiffness sets the depth of cut you can hold without chatter.

For tight tolerance work, we measure runout at the tool tip, not at the holder flange. A holder that reads 0.005 mm at the flange can read 0.03 mm at a 100 mm gauge length. That difference decides whether a bore holds ±0.005 mm or drifts out of tolerance.

Material changes the answer too. Aluminum 6061 and 7075 cut cleanly with light holders and high spindle speed. Stainless 316L and 17-4PH push back, so we move to a heavier holder and lower the speed to keep the tool from rubbing.

When a part needs deep pockets, thin walls or a tight bore, the holder is part of the process plan. It is not an accessory picked at the last minute.

• 1
  Reach vs rigidityLong holders reach deeper and deflect more.
• 2
  Measure at the tipFlange runout hides error at gauge length.
• 3
  Match the materialLight holders for aluminum, heavy for stainless.
