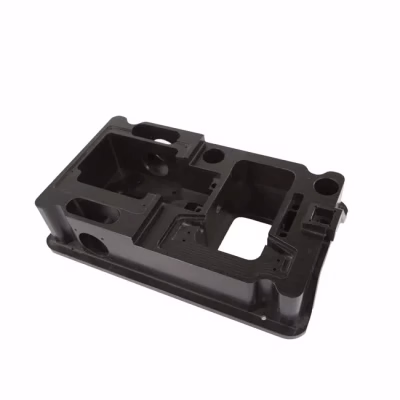

The first thing we look at on an incoming model is not the tolerance block. It is how many sides the tool needs to reach. A housing with pockets on four faces and a bore through the fifth face cannot be made in one 3-axis setup without losing the datum. Every reclamping adds a small position error that stacks against your true position callout.

A simultaneous 5-axis center approaches the part from almost any angle under one clamping. That keeps the datums intact and lets the same setup cut the bore, the pockets and the bolt circle. For complex geometry, that is often the difference between holding a callout and chasing it across three operations.

Feature access also decides tooling. Deep pockets with a small corner radius need long, thin tools that deflect. If the model allows a larger corner radius, the shop can use a stiffer tool and run faster. A two-line change in the CAD file can remove a whole roughing operation. That is what DFM feedback is for, and it should come back before the price does.

• 1
  Count the facesEach face that needs machining is a potential setup.
• 2
  Check corner radiiBigger radii allow stiffer tools and fewer passes.
• 3
  Mind depth-to-diameterBeyond 4× diameter, deflection and chip evacuation get harder.

A tolerance number means nothing without a size and a datum. Holding ±0.005 mm on a 30 mm bore is a normal day for a well-kept machine. Holding the same band across a 4,000 mm rail depends on thermal drift, fixturing and how the part is supported. Ask what the tolerance applies to, not just what the number is.

Surface finish follows the same logic. Ra 1.6–3.2 μm comes off the machine with a normal finish pass. Ra 0.8–1.6 μm needs a dedicated finishing strategy and sharp tooling. Ra 0.2–0.8 μm on a sealing face usually needs a separate operation and a clean setup, because a single chip dragged across the face will show up on the leak test.

Then ask how the feature will be measured. A CMM report on the critical dimensions is worth more than a certificate. We inspect 100% of parts before shipment and can supply reports on request, covering raw material check, in-process monitoring and final inspection. If your drawing has a GD&T callout, the report should mirror it line by line.

• 1
  Tie tolerance to sizeA band on a small feature is not a band on a long one.
• 2
  Separate the finish passFine finishes need their own tool and their own setup.
• 3
  Request the inspection planThe report should match the drawing callouts.

Titanium TC4 (Ti-6Al-4V) has low thermal conductivity, so heat goes into the cutting edge instead of the chip. Tools fail fast unless surface speed stays low and coolant reaches the tip at pressure. We run titanium with sharp, coated carbide, moderate feed per tooth and no dwell in the cut. Pausing in a titanium cut work-hardens the surface and dulls the next pass.

Inconel behaves in a similar way but punishes the tool even more. It work-hardens quickly, so a feed rate that is too light is worse than one that is slightly heavy. The tool needs to stay engaged and keep moving.

Stainless grades 316L and 17-4PH sit in the middle. They cut cleanly with the right parameters, but dwelling or a stationary tool will harden the surface and ruin the finish. For all three families, the practical questions to ask a supplier are simple: which coolant pressure, what surface speed, and how many parts per tool edge. A shop that cannot answer is guessing.

• 1
  Never dwell in the cutA stopped tool hardens the surface under it.
• 2
  Coolant at the tipThrough-tool or high-pressure delivery, not a flood from behind.
• 3
  Track tool lifeChanging an edge on schedule beats changing it after a scrapped part.

For a difficult part, the quote itself is a signal. A supplier that returns a price in two days without questions has either seen the exact part before or has not read the model. We return a quotation and a free DFM analysis within 12 hours, and production can start within 24 hours once the drawing is frozen. Standard parts ship in 3–5 days.

Minimum order quantity matters more than people expect. A shop with a high MOQ will not want to set up a five-axis fixture for one part, so the price reflects that reluctance. We run with no minimum order quantity, from a single prototype to 10,000+ part runs, because the setup cost is already in the quote either way.

Historical late-delivery probability here is below 2%, but treat any delivery promise as a planning input, not a contract. The useful question is what happens when a tool breaks at 2 a.m. A shop with 127 high-precision CNC machines across three wholly-owned plants can move the job to another spindle. A single-machine shop cannot.

• 1
  Read the DFM notesIf there are none, the model may not have been opened.
• 2
  Ask about MOQ earlyIt changes the fixture strategy and the unit price.
• 3
  Ask about overflowSpare capacity is what protects your date.

Difficult parts often sit in regulated products, so the certificate list is a filter before it is a ranking. ISO 9001:2015 covers the quality system. IATF 16949:2016 is the automotive and EV requirement. ISO 13485:2016 applies to medical devices. ISO 27001:2022 covers information security, which matters when you upload proprietary geometry.

A supplier should be able to say which certificate applies to your program and show the scope. A certificate with a scope that excludes your process is not much use. If your part is a medical implant housing, the question is not whether the shop has ISO 13485 but whether the cell that will run your job is inside that scope.

Confidentiality is the other half. Uploads should be secure, and an NDA should be available on request without a negotiation. For defense-adjacent or unreleased consumer products, that should be settled before the first STEP file leaves your network, not after the quote comes back.

• 1
  Check the scopeThe certificate must cover the machine cell doing your work.
• 2
  Match certificate to marketAutomotive, medical and general industrial differ.
• 3
  Settle the NDA firstBefore the model is uploaded, not after.

Machining is rarely the last operation. Anodizing, electroless nickel, zinc plating, powder coating and black oxide all change dimensions slightly, and hardcoat anodizing changes them more than people plan for. If a bore is already at the top of its tolerance band, a coating can push it out. Tell the shop which surfaces must stay bare.

Bead blasting, tumbling and polishing remove material too, in small amounts and unevenly on edges. On a part with a sharp sealing edge, tumbling can round it enough to matter. Laser marking is safer for identification, with a minimum character height of 1.5 mm, but it should not land on a sealing face or a bearing seat.

The practical move is to put the finish on the same drawing revision as the dimensions, with masked areas called out. When the finish is an afterthought, the part arrives looking right and measuring wrong. That is an expensive way to learn the lesson.

• 1
  Plan coating thicknessHardcoat anodizing moves dimensions more than clear anodizing.
• 2
  Mask critical surfacesSealing faces and bearing seats should stay bare.
• 3
  Keep one revisionFinish and dimensions belong on the same drawing.
