A tolerance number on a website is a capability claim, not a process plan. ±0.005 mm (±0.0002 in) is achievable on a rigid machine with the right tooling and a controlled room, but it is not free and it is not automatic. Ask which features on your part actually need it. On most parts, two or three critical dimensions carry the fit, and the rest sit comfortably at ±0.05 mm.

The question to put to a supplier is how they hold the tight feature across 500 pieces. The answer usually involves in-process probing, tool wear offsets, and a temperature-stable environment. If the answer is only 'our machines are accurate', treat the tolerance claim as a prototype claim.

Material behavior matters as much as the machine. Aluminum 6061-T6 and 7075 cut and hold differently. 17-4PH stainless moves more after heat treat. Titanium Ti-6Al-4V work-hardens and pushes tools, so the finishing pass has to be planned before the first cut.

A shop that machines only one material family sees a narrow slice of this. One that runs aluminum, stainless, tool steel, copper, titanium and engineering plastics learns which dimensions need a second look. That experience is what you are buying when you buy effective CNC machining services.

• 1
  Ask for the datum schemeHow the part is located decides whether the tolerance stacks up.
• 2
  Ask about probingIn-process measurement catches drift before the last part is scrap.
• 3
  Ask for the finish specRa 0.8–1.6 μm is a normal machined finish; Ra 0.2–0.8 μm needs extra passes.

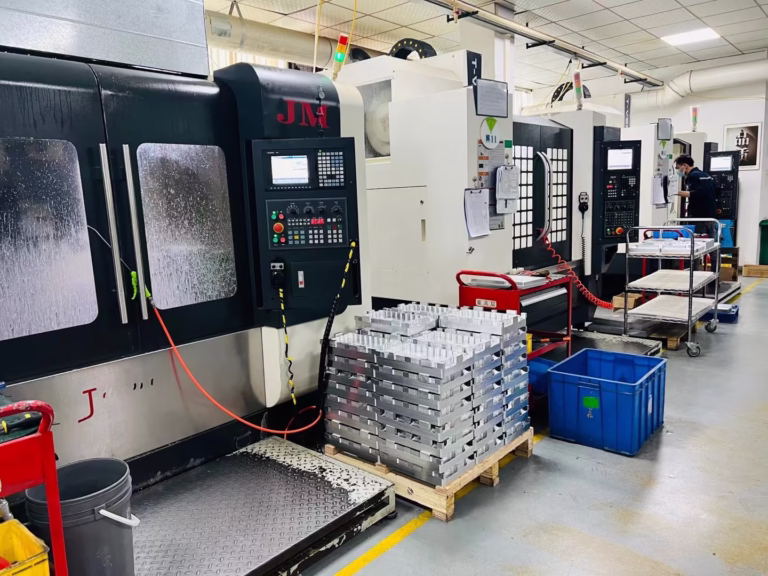

Capacity decides which parts a shop can quote at all, and how fast the job moves once it is on the floor. The useful numbers are machine count, axis configuration, and travel size. A supplier with 127 high-precision CNC machines across three wholly-owned plants has more room to route a job than a shop with eight mills.

Axis configuration is the more practical filter. Three-axis work suits prismatic parts with features on one face. Four-axis adds a rotary table and cuts three or four sides without re-fixturing. Simultaneous five-axis handles contoured surfaces, deep pockets at odd angles, and parts that would need five setups otherwise. Mill-turn centers finish a turned part and its milled features in one clamping.

Size is the hard limit. A shop that lists a 4,000 mm maximum processing size can take long frames, rails and extrusions that will not fit on a 600 mm table. If your part is 900 mm long, ask for the travel of the specific machine that will run it, not the plant maximum.

Setup count is where the cost hides. Every re-fixturing step adds position error and queue time. A part that runs in two setups on a five-axis machine instead of six setups on a three-axis machine usually lands cheaper and closer to nominal.

• 1
  16 simultaneous 5-axis centersFor contoured geometry and multi-face parts.
• 2
  16 mill-turn centersFor parts that combine turning and milling features.
• 3
  Ø400 mm rotary tableSets the diameter limit for 4-axis work.

Lead time is not one number. It is quoting time plus production time plus shipping time, and suppliers tend to quote only the middle one. A quote that arrives in 12 hours with a free DFM analysis lets your design freeze earlier. Production that starts within 24 hours removes the queue that quietly adds a week.

Ask what happens between the purchase order and the first chip. Material sourcing, fixture design, programming and first-article inspection all sit in that gap. A shop with a stocked material list and its own programming team compresses the gap. One that outsources programming does not.

The delivery promise should come with a failure rate, not just a date. A historical late-delivery probability below 2% is a number you can plan around. A promise with no history behind it is a hope. If your program has a hard milestone, ask how the shop handles a machine breakdown mid-run.

Shipping mode matters for the last mile. Parts that ship in 3–5 days usually travel by air express for small runs. Large or heavy parts move by freight, which adds days. Build that into your schedule before you promise a date to your own customer.

• 1
  Quoting speed12-hour quote with DFM feedback keeps design moving.
• 2
  Production start24-hour start means the queue was already managed.
• 3
  Delivery historyA sub-2% late probability is a planning input, not a slogan.

Certifications are a filter, not a ranking. ISO 9001:2015 covers a quality management system. IATF 16949:2016 is the automotive standard and brings traceability and change-control expectations. ISO 13485:2016 applies to medical device work. ISO 27001:2022 covers information security, which matters when your CAD files are the product.

The certificate tells you a system exists. The inspection report tells you it ran. Ask for raw material certification, in-process records and a final inspection report on the first order. If those documents are not part of the normal flow, the certificate is decoration.

Confidentiality belongs in the same conversation. An NDA is available on request, and uploads should be handled as secure and confidential by default. For defense, medical and unreleased consumer products, this is a pass or fail item, not a preference.

Match the certification to your industry, not to the longest list. A medical program does not need IATF 16949. An automotive program does. A shop that holds all four simply has fewer conversations to have before it can take your job.

• 1
  ISO 9001:2015Baseline quality management.
• 2
  IATF 16949:2016Automotive traceability and change control.
• 3
  ISO 13485:2016Medical device manufacturing.
• 4
  ISO 27001:2022Information security for your design files.

A minimum order quantity is a statement about how a shop is built. A supplier with no MOQ runs one prototype and a 10,000+ part run on the same floor. That flexibility matters when a design is still moving and you need three iterations before you commit to tooling.

Finishing is where quotes often hide a second supplier. Anodizing, electroless nickel, zinc plating, powder coating, black oxide, bead blasting and laser marking can all be sent out. Each handoff adds transit, queue time and a place for quality to slip. When the finishing runs in the same quality chain, one team answers for the final appearance.

Laser marking has a practical floor: a minimum character height of 1.5 mm. Below that, the mark is not reliable. If your part number or traceability code needs to be smaller, plan for a different marking method early rather than discovering it at final inspection.

Add up the vendors in your supply chain. Every extra one is another purchase order, another schedule to track, and another party to call when something is late. Consolidation is not about convenience. It removes the gaps where parts get lost.

• 1
  No MOQOne prototype through 10,000+ part runs.
• 2
  In-house finishingAnodizing, plating, powder coat and marking under one roof.
• 3
  Marking limitLaser marking needs at least 1.5 mm character height.
