Okuma Multus B200: 7 Essential Tips to Maximize Output
A shop-floor guide for engineers running the Okuma Multus B200. Seven steps cover process planning, B-axis engagement, tool presetting, thermal control, and in-process monitoring, so you can judge which changes actually move cycle time and which just add risk.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
Key takeaways

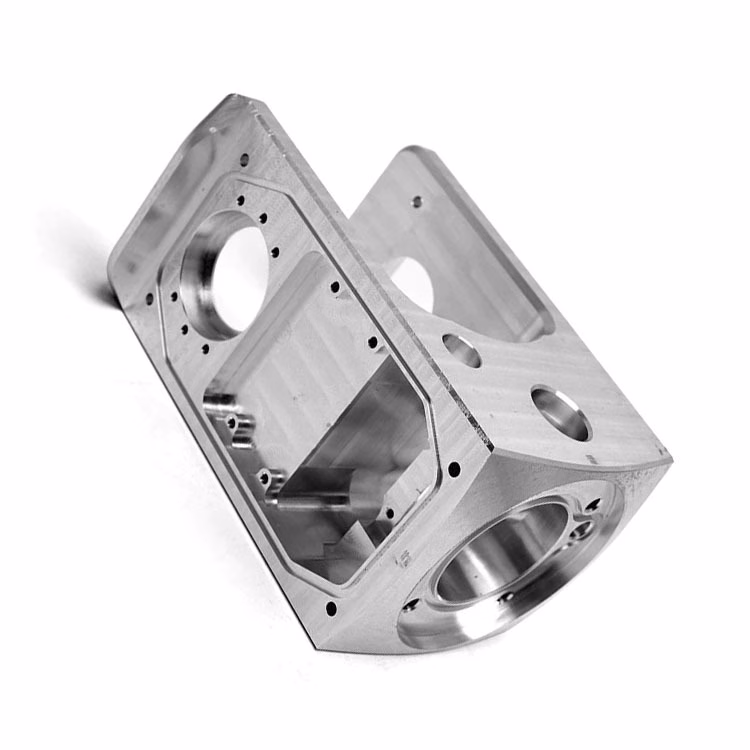

What the Okuma Multus B200 actually changes
The Okuma Multus B200 is not a lathe with a bolt-on milling head. It is a multi-tasking platform with a B-axis milling spindle, a lower turret, and a main and sub spindle. That combination lets a part go from bar or billet to finished geometry without moving between machines, which removes the re-fixturing error that usually eats tolerance budget.
That capability only pays off if you program for concurrency. If you run the milling head, then index, then run the lower turret as separate operations, you are using a multi-tasking machine as two single-purpose machines stacked in one enclosure. Cycle time stays near the sum of the parts rather than approaching the longest single operation.
For engineers evaluating this platform, the useful question is not whether the machine can cut a feature. It is which features can run at the same time without fighting each other for rigidity, chip clearance, or thermal stability. Answer that and the rest of the setup falls into place.
Tip 1: Plan the process around concurrency
Start with the finished part and work backward. List every feature, then mark each one as main-spindle, sub-spindle, or lower-turret work. The goal is to find pairs that can run simultaneously, such as turning an outside diameter on the main spindle while the milling head drills cross holes.
Operation sequencing matters more here than on a single-purpose lathe. Put the features that need the highest rigidity early, while the workpiece is still short and well supported. Long thin sections should be machined after most of the stock is gone, so the part is not vibrating through every subsequent cut.
A common mistake is leaving a roughing pass for later because the tool is already loaded. That forces a heavy cut on a part that has lost its stiffness. Move roughing forward, keep finishing late, and let the sub spindle pick up the part for the second side while the main spindle starts the next piece.
- 1Group by spindleMain spindle, sub spindle, and lower turret each get their own feature list.
- 2Rigid cuts firstRough while the part is short and supported, finish when stock is low.
- 3Do not idle the B-axisIf the milling head is parked for half the cycle, the plan needs rework.
Tip 2: Balance cutting forces on the B-axis
The B-axis head is rigid, but it is still a cantilever. Long tool assemblies with small diameters deflect under side load, and that deflection shows up as taper or chatter on the finished wall. Keep tool overhang under roughly four times the shank diameter for milling cuts in steel, and shorter in titanium or Inconel.
When the lower turret and the milling head cut at the same time, keep radial loads close to each other. A rough guideline is to hold the two operations within about 20 percent of each other in load. When one side is much heavier, the part gets pushed off center and roundness drifts even if the dimensions look fine on a micrometer.
Chip evacuation is the other half of this. Multi-tasking machines have crowded work zones. High-pressure through-tool coolant helps, but so does programming a short retract at the end of deep pockets. A 0.5–1 s dwell with coolant on clears chips far more reliably than a continuous cut that packs them into a corner.
- 1Control overhangKeep milling tools short; deflection scales with the cube of length.
- 2Match opposing loadsWithin about 20 percent keeps the part centered.
- 3Program chip breaksShort retracts and coolant dwells beat long continuous passes.
Tip 3: Preset tools and manage tool life
Offline presetting is the cheapest cycle-time gain on this machine. Measure every holder on a presetter, record the length and diameter offsets, and load them by number at setup. Touching off 20 tools inside the work zone can consume 30–60 minutes of spindle time that produces nothing.
Tool selection for multi-tasking is a compromise between reach and rigidity. A 12 mm end mill reaches into a cross hole that a 16 mm cutter cannot, but it deflects more. Use the smallest tool that still gives acceptable surface finish, and reserve the larger cutters for facing and heavy roughing where reach is not a constraint.
Set a tool life limit in the control and honor it. Index or replace inserts on a count or time basis rather than waiting for a finish change. A worn insert on a multi-tasking machine does not just affect one surface. It can shift the load balance between the turret and the milling head and pull the whole part out of tolerance.
- 1Preset offlineLoad offsets by number; skip in-machine touch-off.
- 2Smallest usable toolBalance reach against deflection.
- 3Enforce tool lifeChange on count, not on visible wear.
Tip 5 and 6: Hold thermal stability and watch the cut
Thermal drift is the quietest source of scrap on a multi-tasking machine, because every axis grows in a different direction. The B-axis head and the turret sit at different distances from the spindle motor, so they warm at different rates for the first hour or two. A consistent warm-up routine plus coolant held at a stable temperature removes most of that variation.
Spindle load monitoring is the most useful single signal on this machine. A load curve that normally peaks at 40 percent and suddenly reaches 55 percent at the same point in the cycle means the tool is dull, the chip is packing, or the material has changed. Catching that at part 5 instead of part 50 saves the whole run.
Vibration and chatter detection is the second signal. Chatter usually appears as a rising amplitude in a narrow frequency band, and it grows faster than spindle load does. If you only watch load, you often catch the problem after the surface finish is already out of specification.
Collect the data even if you do not act on it immediately. Twenty cycles of load and vibration data tells you which tools are marginal and which operations are running near a stability limit. That is the input for the next process revision, not a report that sits in a folder.
- 1Same warm-up every dayConsistency matters more than the exact duration.
- 2Alarm at 10–15 percent over normal loadTight enough to catch wear, loose enough to avoid false stops.
- 3Watch trends, not single partsA slow rise across 20 parts is tool wear, not a machine fault.
Tip 7: Choose workholding that matches the cut
On a multi-tasking machine, the workholding has to resist load from directions a lathe chuck was never designed for. Milling cuts push sideways against the jaws. Hydraulic or pneumatic chucking holds clamping force constant and repeatable, which matters when the same fixture runs across a batch and jaw pressure changes with operator feel.
Soft jaws bored in place on the machine give the best concentricity for a specific diameter. Bore them at the same spindle speed and clamping pressure you will use in production, then mark them so they go back on the same chuck in the same position. A soft jaw set that is swapped between chucks usually loses more accuracy than it saves in setup time.
For complex parts, a custom fixture or a collet system reduces the unsupported length. Keep the ratio of unsupported length to diameter below about 3:1 for turning and lower for milling, or add a steady rest or tailstock support. Long overhangs are where chatter starts, and no amount of parameter tuning fixes a part that is free to move.
- 1Constant clamping forceHydraulic or pneumatic chucking beats manual tightening for repeatability.
- 2Bore soft jaws in placeMatch production speed and pressure, then index them.
- 3Keep overhang lowUnder about 3:1 length-to-diameter for turning.
Seven steps to set up and run the B200
Each step lists the action, the working range, and the mistake that costs the most time.
- 1Run a capability checkVerify spindle runout, holder concentricity, and axis backlash before the first job. If runout exceeds 0.005 mm at the tool tip, fix it before optimizing anything else. Skipping this step hides real problems behind cutting parameters.
- 2Warm up for 20–30 minutesRun a warm-up cycle that exercises the B-axis, both spindles, and the lower turret at moderate speed. Bring coolant to its set temperature in the same cycle. Cold starts are the main cause of first-piece size drift.
- 3Build the process planMark every feature as main spindle, sub spindle, or lower turret. Pair operations that can run at the same time. If the milling head sits idle for more than about 30 percent of the cycle, rework the sequence.
- 4Load preset tools and offsetsLoad measured offsets and confirm each tool number against the setup sheet. Keep radial overhang under four times the shank diameter for milling tools. Wrong offsets are the most common crash cause on a multi-tasking machine.
- 5Cut a first article and measureMeasure critical features, not just the easy ones. Check roundness and concentricity between the main and sub spindle before running the batch. This is where load imbalance shows up first.
- 6Set monitoring limitsSet spindle load alarms at roughly 10–15 percent above the normal cutting load, and watch the vibration trend. A rising trend across 20–30 parts points to tool wear or a chip problem, not to a machine fault.
- 7Verify thermal settlingAfter the first hour of production, re-check the tightest feature. If size has moved more than about half the tolerance, adjust coolant temperature or add a settling pause before finishing passes.
Which optimization to apply first
Match the symptom you see on the floor to the change most likely to help.
| Symptom | Likely cause | First action | Expected effect |
|---|---|---|---|
| Cycle time far above estimate | Sequential programming | Re-plan for concurrent B-axis and turret cuts | Large, immediate |
| First-piece size drift | Cold start, no warm-up | Add 20–30 min warm-up with coolant | Large, on tight features |
| Roundness out of spec | Unbalanced opposing loads | Match turret and milling head loads within 20 percent | Medium to large |
| Chatter on thin walls | Long tool overhang | Shorten holder, cut overhang below 4× diameter | Large, on finish |
| Setup eats spindle time | In-machine tool touch-off | Preset all tools offline | Medium, repeatable |
| Size moves during the run | Thermal drift | Stabilize coolant temperature, add settling pause | Medium, on long runs |
| Scrap appears late in a batch | Tool wear | Set tool life limits and load alarms | Medium, prevents scrap |
Where these seven steps land
Most of the gain on an Okuma Multus B200 comes from planning for concurrency and controlling thermal drift, not from pushing feeds. Fix the process first, then tune the parameters.
Questions engineers ask about the B200
How long should the warm-up cycle be before tight-tolerance work?
For work held at ±0.005 mm, run 20–30 minutes of warm-up that exercises the B-axis, both spindles, and the lower turret, with coolant circulating at its production set point.
On a machine that has been idle overnight, the first hour of cutting is the least stable. If the job cannot tolerate that, add a settling pause before the finishing pass rather than extending the warm-up indefinitely.
When is a multi-tasking machine the wrong choice for a part?
When the part has one dominant operation and almost no secondary features, a single-purpose lathe or mill usually wins on cost per part. Multi-tasking pays off when a part needs several orientations and re-fixturing would add error or setup time.
Very large or very heavy parts can also be a poor fit if they exceed the work envelope or need support that blocks the lower turret. Check the travel and swing before quoting.
Can I hold ±0.005 mm on both the main and sub spindle?
Yes, within the machine capability, but the concentricity between the two spindles has to be verified. Measure a test part that is cut on both spindles and check the runout at the transfer point.
If the transfer error is larger than the tolerance, the fix is usually in the chucking and the hand-off position, not in the cutting parameters.
How do I know when a milling tool is too long for the operation?
Start with overhang below four times the shank diameter for steel and shorter for titanium or Inconel. If the surface finish or the roundness degrades as you increase reach, the tool is already past the limit for that cut.
Reduce overhang first, then adjust speed and feed. Parameter changes rarely recover a cut that has lost its rigidity.
What should trigger a tool change on a multi-tasking machine?
Use a count or cutting-time limit in the control rather than waiting for visible wear. A dull insert changes the load balance between the turret and the milling head, which can move the part out of tolerance before the finish looks bad.
Review the limit after each run. If tools are consistently changed with life left, extend the count. If scrap appears before the limit, shorten it.
Does offline tool presetting really save cycle time?
It saves setup time, which is where the savings actually show up. Touching off 20 tools inside the work zone can take 30–60 minutes per setup that produces no parts.
The bigger benefit is repeatability. Preset offsets loaded by number are the same at every setup, so the first article is more likely to be in tolerance on the first attempt.
