The Takisawa TC-20 is a box-way turning center with a high-torque spindle and a control that supports constant surface speed, canned cycles and tool-life management. That combination holds tight diameter control on steel and aluminum parts up to a few hundred millimeters long. The machine is not the limit on most jobs. The setup is.

Three things usually decide whether you maximize your CNC lathes performance on this platform: how the spindle speed matches the material, how rigidly the part is held, and how stable the thermal environment stays through the run. Everything else in this guide supports those three.

We run this class of lathe alongside 127 high-precision CNC machines across three plants, and the same failure patterns repeat. Operators change one parameter, see a better finish, then lose tool life two hours later. The seven tips below are ordered so each change is measurable before the next one starts.

If you are evaluating the TC-20 for a new job, the useful question is not its maximum spindle speed. It is whether your part geometry, material and tolerance band fit what the machine can repeat shift after shift. That is a setup question, and it has a setup answer.

Tip 1: match spindle speed to the material and write feed as a dependent value. On 6061 aluminum, 3,000-6,000 RPM with proper chip evacuation works well on the TC-20. On 304 or 316 stainless, drop to 800-1,500 RPM and increase chipload so the edge cuts under the work-hardened layer instead of rubbing on it. On titanium and Inconel, 200-600 RPM with constant surface speed keeps heat in the chip.

The common error is raising RPM alone to improve finish. Surface speed and feed per revolution must move together. If you raise speed 15%, raise feed per tooth proportionally and watch chip color. Blue chips on aluminum mean you are rubbing, not cutting.

Tip 2: treat workholding as a damping problem. A three-jaw chuck with short jaw engagement lets the part ring under interrupted cuts. Grip at least 60-70% of the jaw length, or switch to a collet or a dedicated soft-jaw bore for thin-wall parts. Clamping pressure matters too: more is not better. On a thin-wall aluminum ring, excessive pressure ovalizes the bore and the part springs back undersize after release.

Tip 3: aim coolant at the cutting zone, not at the part. Flood coolant that lands behind the insert does almost nothing for thermal stability. On the TC-20, through-tool coolant is the better option for deep bores and stainless, while flood is adequate for aluminum roughing. Check nozzle position after every tool change. A nozzle knocked 10 mm off target will show up as taper on the next 50 parts.

Warm-up is part of coolant management. Run the spindle at 1,000-2,000 RPM for 10-15 minutes before the first cut on a cold morning. The headstock and ballscrew reach a stable temperature, and your first-off dimension stops drifting between 6:00 a.m. and 9:00 a.m.

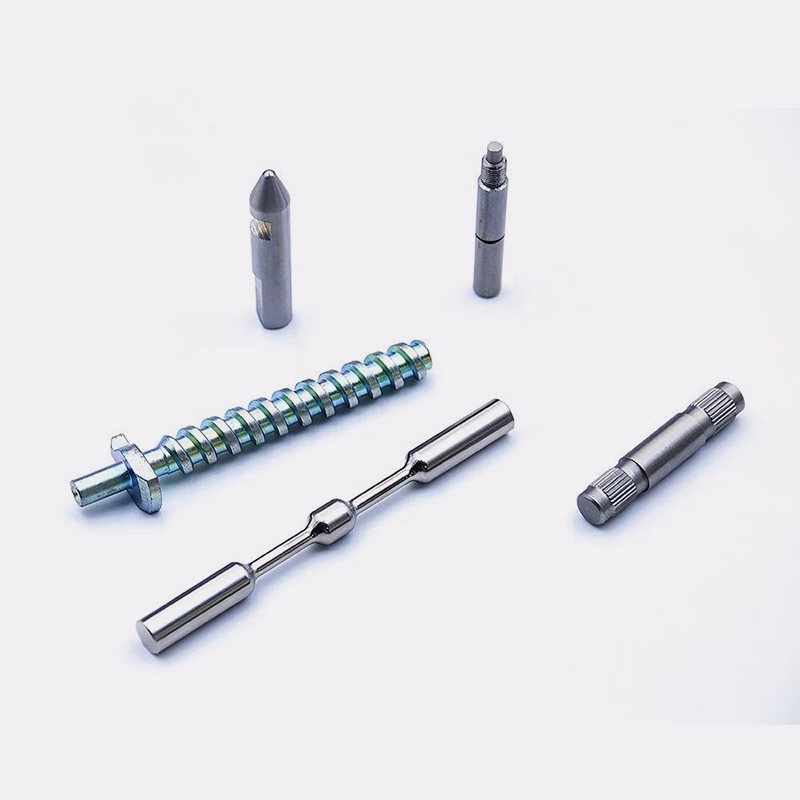

Tip 4: cut air time before you cut metal time. On a typical shaft or bushing job, the biggest cycle-time losses are rapid moves, retract heights and tool-change order, not the cutting feed. Set a safe retract just above the part instead of returning to machine zero between passes. Group tools by station order so the turret indexes once, not twice.

Constant surface speed helps on face and taper work, but it can overspeed the spindle on a small remaining diameter after a facing pass. Cap the maximum RPM in the program. On the TC-20, that one line prevents spindle overload and insert breakage on the final face cut.

Tip 5: build a maintenance routine around measurement, not around the calendar alone. Check turret repeatability with an indicator every 500 spindle hours. Check X and Z backlash before a tight-tolerance job, not after a rejected batch. Replace or re-clamp the chuck jaws when runout at the jaw face exceeds 0.02 mm.

Coolant concentration and tramp oil are maintenance items too. A refractometer reading below the coolant maker's range reduces cooling and lubrication at the same time. Skim tramp oil weekly. Dirty coolant is a common cause of sudden finish degradation that operators blame on the insert.

Keep a simple log per machine: date, job, material, spindle hours, and the dimension that moved. After three months you can predict which jobs will drift and schedule the check before the first part is cut.

Tip 6: use the control, not the operator, to hold geometry. Canned cycles and tool-nose radius compensation handle chamfers, radii and thread reliefs consistently across operators and shifts. If two operators run the same job and get different blends at a shoulder, the program is probably calling the tool path manually instead of using compensation.

Tool-life management is the second control feature worth setting up. Assign a life count per insert and let the control flag the change at a fixed number of parts. Random insert changes mid-batch are one of the most common causes of a size step in a production run.

Tip 7: write the inspection plan before the setup sheet. Every turning job needs three checkpoints: first-off, mid-run and last-off. First-off confirms the setup. Mid-run catches thermal drift and insert wear. Last-off confirms the batch is still in tolerance.

Pick the measurement that matches the tolerance band. For a ±0.005 mm diameter, a bench micrometer at the same temperature as the machine is the right tool. Measuring a warm part with a cold gauge adds error that looks like machine drift. Let parts cool before final inspection, or record the temperature with the reading.

In our plants, 100% inspection before shipment is standard, with raw material checks and in-process monitoring upstream of it. The same logic applies on a single lathe: define what you check, how often, and what triggers a stop. Vague inspection is the same as no inspection.
