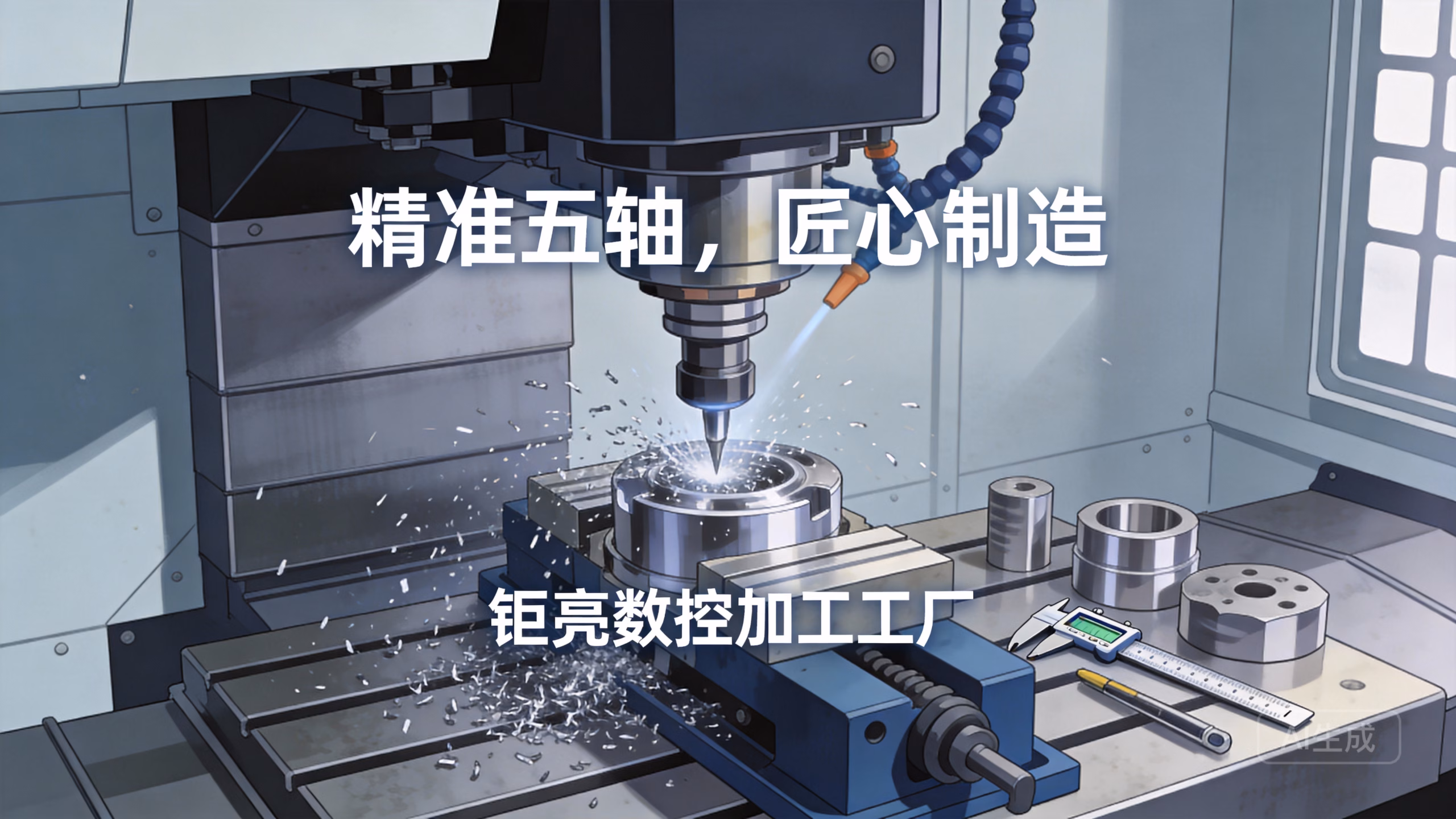

Most quotes you compare look similar on spindle time. The gap sits in setup. A part that needs four re-clamps costs hours of labor and loses accuracy every time it is released and gripped again. On a simultaneous 5 axis machine the table tilts and rotates, so five faces come off in one setup. One datum chain, one zero, no re-fixturing labor.

When we quote a housing, we ask how many setups the current route uses. If the answer is three or more, the five-axis route usually wins on total cost even before precision is discussed. Fewer clamps also means less chance that a chip or a burr gets trapped between the part and the fixture.

Near-net shape is the second lever. A billet-to-finished route turns most of the block into chips. A die-cast or printed blank that arrives within 1 mm of final form leaves only the faces that carry tolerance to the mill. You pay for cutting where precision is required, not everywhere.

The trade-off is real. Castings need a stable heat treatment before machining, and printed blanks need stress relief. If the blank moves after roughing, the finishing pass will not hold ±0.005 mm. On thin walls under 2 mm, a billet may still be the safer route.

• 1
  Count setups, not machinesEach re-clamp adds 20–60 minutes and a new error source.
• 2
  Ask where the blank comes fromDie casting is best for aluminum and magnesium housings.
• 3
  Stress relief before finishingSkip it and the part moves after the last cut.

Design for manufacturability works when it lives inside the 3D model, not in a PDF comment. A 5 axis machine has kinematic freedom that a drawing rarely uses. If the model already respects tool reach, corner radii and wall thickness, the programmer can pick a strategy instead of inventing one.

Practical checks: give internal corners a radius at least one third of the tool diameter, keep pocket depth under four times the tool diameter where you can, and add a locating feature the fixture can grip. On parts with a hard datum, state which surface is the datum. Programmers will hold it; inspectors will measure from it.

Then look at what happens after the cut. If anodizing, passivation, laser marking or heat treatment sit at three different shops, each handoff adds freight, packing and a re-inspection. One roof for the whole chain removes that. We run anodizing, plating, powder coating, bead blasting and laser marking in-house, and parts move there directly after the five-axis cycle.

Handoffs also break traceability. When the same quality system covers machining and finishing, one inspection report carries the full history of the part. That matters for IATF 16949 and ISO 13485 programs, where a lost record is a nonconformance, not an inconvenience.

• 1
  Radius ruleInternal corner radius ≥ 1/3 of tool diameter.
• 2
  Name the datumOne marked datum surface prevents two different zeros.
• 3
  Laser marking minimumCharacter height 1.5 mm and above stays legible after finishing.

High-efficiency toolpaths keep the radial engagement constant instead of letting the cutter slam into corners. On Inconel 718 and Ti-6Al-4V, a smooth load profile lets the programmer raise feed without a sudden breakage. You can turn a 14-hour cycle into a 9-hour one without a tool change, and the tool wear becomes predictable enough to schedule.

That strategy needs correct inputs. Tool runout, holder length and stock left by roughing all change the load. If the CAM file assumes 0.3 mm of stock and the roughing pass leaves 0.8 mm, the finishing tool will chatter on the first wall. This is a process control question, not a software one.

Probing closes the loop. An in-process probe measures the datum or a critical bore after roughing and shifts the work offset before finishing. On titanium housings with tight bore positions, this catches thermal drift and small blank variation before the finish pass, not after.

A final probe pass can also replace part of the inspection travel. It does not replace the final dimensional report, but it stops a part that has already drifted from consuming a second setup. For a batch of surgical robot arms or engine components, that difference shows up in scrap rate, not in the machine hour rate.

• 1
  Constant engagementDeep axial, light radial passes suit hard alloys.
• 2
  Probe after roughingUpdate the work offset before the finishing pass.
• 3
  Verify stock leftProgrammed stock must match what roughing actually leaves.

Machine count alone says little. Ask how many simultaneous five-axis centers are running and what travel they cover. Sixteen centers with travels from 500 × 500 × 450 mm up to 4,000 × 400 × 150 mm can take small brackets and long structural parts under one roof. If the supplier has to subcontract the long part, the tolerance chain and the schedule both break.

Then look at the measurement side. A ±0.005 mm claim means nothing without the inspection routine behind it: raw material check, in-process monitoring and a final inspection before shipment. Reports should be available on request, not as a special favor.

Certifications tell you which industries the quality system was built for. ISO 9001:2015 is the baseline. IATF 16949:2016 covers automotive and EV programs. ISO 13485:2016 covers medical devices. ISO 27001:2022 covers how your files are handled, which matters when drawings are confidential.

Commercial terms deserve the same scrutiny. No minimum order quantity means you can run one prototype and a 10,000-part batch through the same process. That removes the second qualification cycle that usually follows a prototype supplier change. Ask about the NDA before you upload, and ask what the quote includes: material, machining, finishing, inspection and packing should be one number.

• 1
  Travel rangeCheck the largest part the five-axis centers can hold.
• 2
  Inspection routine100% inspection before shipment, reports on request.
• 3
  Certification fitMatch the certificate list to your industry, not to the brochure.
• 4
  Quote scopeOne number covering material, machining, finishing and inspection.

The first trap is quoting a five-axis part from a 2D drawing with no datum. The shop guesses a datum, the inspection uses another, and the first article fails for reasons nobody can trace. Send the model and name the datum surface.

The second is applying tight tolerance everywhere. A ±0.005 mm callout on a non-functional rib forces slow finishing passes and extra probing across the whole part. Concentrate the tight band where it does work and let the rest run at machining tolerance.

The third is splitting the finishing chain across shops. Freight between anodizing and machining adds handling damage and re-inspection. When a part is machined and finished under one quality system, the record and the part stay together.

The fourth is ignoring lead time structure. A quotation and free DFM analysis within 12 hours, production starting within 24 hours, and parts shipping in 3–5 days is a workflow, not a promise that every part is fast. Complex geometry and multi-stage finishing take longer, and a supplier that says otherwise is either quoting air or hiding a queue.

• 1
  No datum, no first articleOne named datum surface fixes the whole chain.
• 2
  Tolerance creepTight bands on sealing and locating faces only.
• 3
  Split finishingExtra freight and re-inspection per handoff.
