Trident CNC: 5 Essential Tips to Maximize Precision and Cut Machining Costs
Five practical moves that hold accuracy on a machined part while the price per piece comes down. Written for design engineers and sourcing teams who quote parts every week.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
Key takeaways
Tip 1: Count Setups Before You Count Anything Else
The fastest way to cut machining costs is to reduce the number of times the part is clamped. Every new setup means a new fixture, a new zero point, and a fresh chance for stack-up error. A part that runs in two setups at Ø tolerance ±0.05 mm often holds ±0.005 mm in one setup on a five-axis center, because the datum never moves.
Ask your supplier how many setups the part needs before they quote. If the answer is four, ask which features force the extra flips. Sometimes a single hole pattern on a side face drives two additional operations. Moving that pattern to a face already machined in setup one can remove both.
Fixtures are not free either. Soft jaws, vacuum plates, and custom nests get built once and billed once. On a 50-piece run that tooling can be 30 percent of the price. On a 5,000-piece run it disappears into the piece price. That is why small runs and large runs should not be quoted the same way.
One more check: does the part need a rotary table? A Ø400 mm rotary table on a four-axis mill handles a lot of work that people assume requires five axes. If the undercut is shallow and the tool can reach it from two angles, four axes will do. Five-axis time costs more per hour.
Tip 2: Get DFM Feedback Before the Drawing Is Frozen
Design for manufacturability is where the biggest savings hide, and it costs nothing to ask. Send the STEP file with the drawing and ask for a review. At GreatLight the quotation and DFM analysis come back within 12 hours, and the notes usually list three or four changes that shorten cycle time.
The classic example is a deep pocket with sharp internal corners. A standard end mill leaves a radius equal to half its diameter. If the drawing calls for R0.5 mm, the shop either switches to a much smaller tool and runs it slowly, or sends the part to sinker EDM. Relaxing that corner to R3 mm lets a 6 mm cutter run at normal feeds.
Another common one is a feature that only exists because the CAD model was built that way. A 0.5 mm step that serves no function, a chamfer that will be covered by a mating plate, a boss that could be a separate pressed insert. Each of those is machining time you pay for and never see.
Thread depth matters too. A M4 thread called out to 20 mm deep in a blind hole means a long tap, high risk of breakage, and slow peck cycles. Eight millimeters of full thread carries the same load in most joints and cuts the operation in half.
Do not treat DFM notes as a request to weaken the design. Treat them as a list of trades. You decide which ones matter. The engineer who machines the part will tell you which ones cost the most.
Tip 3: Match Tolerance to Function, Feature by Feature
Blanket tolerance blocks on a drawing are the most expensive habit in mechanical design. A title block that says ±0.005 mm everywhere forces the shop to inspect every dimension to that level, and inspection is a real cost. Most parts have three or four dimensions that actually control fit and function. The rest can live at ±0.1 mm or looser.
A good rule: tolerance the mating features, the bearing bores, the sealing surfaces, and anything that sets a center distance. Leave the rest general. If a hole is only there for a cable tie, it does not need a ±0.01 mm position callout.
Position tolerance is often confused with size tolerance. A Ø6 H7 bore and a Ø6 ±0.01 mm bore are not the same requirement. H7 gives the shop a defined range and a standard reamer. A symmetric plus-minus callout on a diameter can force a boring cycle with in-process gauging.
Surface finish is the same story. Ra 1.6 μm is a normal machined finish and comes off the tool. Ra 0.4 μm usually needs a finish pass with a small stepover or a separate polishing step. Specify fine finish only on the faces that slide, seal, or reflect.
One caution: do not loosen a tolerance just to save money if the assembly stack depends on it. Check the stack first. If three parts in a row each gain ±0.05 mm of slop, the last one may not close.

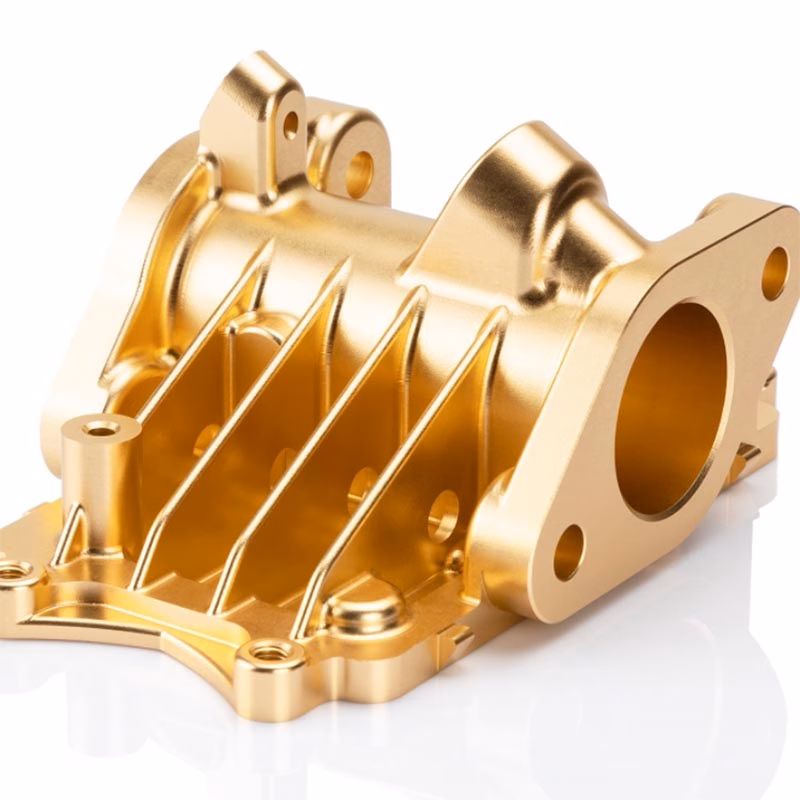

Tip 4: Pick Material and Finish From the Same Shop
Material is the line item buyers look at first, and it is the one most often over-specified. Aluminum 6061-T6 machines clean, holds a good finish, and is available in bar and plate. Aluminum 7075 is stronger but gummier and wears tools faster. Stainless 303 is free-machining, 304 is not, and 316L is worse still. Those differences show up directly in cycle time.
Titanium TC4 (Ti-6Al-4V) and Inconel are sometimes necessary, but they run at low surface speeds and eat inserts. If the load case allows 17-4PH in the H900 condition, you often get comparable strength with a much shorter cycle. Ask for a material swap only after the stress numbers are checked.
Post-processing is where hidden costs live. If the machine shop has to ship parts to a plater and back, you pay freight twice, wait extra days, and lose traceability in between. Keeping anodizing, electroless nickel, powder coating, bead blasting, and laser marking under one roof removes those handoffs.
Laser marking is a small example with a real limit. Minimum character height is 1.5 mm. If your part number and lot code need more characters than fit, the marking moves to a second pass or a label, and that is another operation. Size the mark field early.
One more: buy the material grade the drawing calls for, not the grade that is cheapest this month. A substitution on a certified aerospace or medical part creates paperwork that costs more than the metal.
Tip 5: Plan Prototype and Production as One Sequence
Most projects lose money in the gap between the first article and the production run. The prototype is machined on one setup plan, then the production team re-plans everything because the fixture was never designed to scale. Keeping both phases with the same supplier avoids that reset.
Start with one piece. Check the fit, the finish, and the critical dimensions. Then scale to 10,000+ parts on the same process, the same datums, and the same inspection plan. If the prototype fixture can be hardened and reused for production, you pay for tooling once.
Lead time planning matters as much as price. A quote and DFM analysis in 12 hours, production starting within 24 hours, and parts shipping in 3–5 days keeps a development loop short. When a design change is cheap to test, you make more of them and catch problems earlier.
Do not split a program across three vendors to chase the lowest price per operation. Turning at one shop, milling at another, and finishing at a third means three quality systems, three inspection reports, and three chances for a dimension to drift out of spec.
For regulated programs, ask which quality system covers the job. ISO 9001:2015 covers general process control. IATF 16949:2016 adds PFMEA, control plans, and MSA, which matter on automotive and EV parts. ISO 13485:2016 applies to medical devices. ISO 27001:2022 covers how your files are stored.
The last point is documentation. Ask for inspection reports on the first article and on production lots. If a dimensional problem shows up six months later, that paperwork is what tells you whether the process drifted or the drawing changed.
Step by Step: Running a Cost-Aware RFQ
Follow this order and you will catch most cost drivers before the quote is final.
- 1Step 1: Send STEP plus a 2D drawingInclude the revision, material grade, and any finish callout. A STEP file alone leaves tolerances and finish open, and the shop will quote the loosest assumption.
- 2Step 2: Ask for setup count and tooling costRequest the number of setups and the one-time fixture charge as separate lines. Compare that number across suppliers, not just the piece price.
- 3Step 3: Request DFM notes in writingAsk for the three changes that would cut the most cycle time. Expect notes on corner radii, pocket depth, thread depth, and tolerance blocks.
- 4Step 4: Split the tolerance blockMark the functional dimensions at ±0.005 mm to ±0.01 mm and release the rest to general tolerance. Send the revised drawing back for re-quote.
- 5Step 5: Confirm material and finish under one roofCheck whether anodizing, plating, and marking are in-house. If they are subcontracted, add transit days and a second inspection to your schedule.
- 6Step 6: Order one piece firstMeasure the critical features, check the finish against the callout, and confirm the datums match the drawing before releasing the batch.
- 7Step 7: Lock the process for the production runKeep the same datums, fixture plan, and inspection points. Any change after first article should be a documented revision, not a shop-floor decision.
- 8Step 8: Ask for first-article and lot reportsGet dimensional reports on the first article and on production lots. This is what protects you if a question comes up later.
What to Tighten, What to Relax
Use this as a starting point, then check the assembly stack before you change anything.
| Feature | Common over-spec | Practical spec | Effect on cost |
|---|---|---|---|
| Non-mating hole | ±0.01 mm position | ±0.1 mm position | Lower inspection time |
| Pocket corner | R0.5 mm internal | R3 mm internal | Avoids small tool or EDM |
| Blind thread depth | 20 mm full thread | 8 mm full thread | Shorter tapping cycle |
| Sealing face | Ra 0.2 μm blanket | Ra 0.4 μm on seal only | Drops polish pass |
| Bearing bore | ±0.005 mm | H7 reamed bore | Standard tooling, faster |
| Cosmetic face | Ra 0.4 μm all over | Ra 1.6 μm, anodized | Fewer finish passes |
| Material grade | 7075 across part | 6061-T6, 7075 at load | Shorter cycle time |
| Setup count | Four setups | Two setups, five-axis | Removes refixturing |
Tighten What Matters, Relax the Rest
Most of the price on a machined part comes from setups, tolerance level, and hidden handoffs. Fix those three and you cut machining costs while precision on the functional features stays where it needs to be.
Frequently Asked Questions
How tight a tolerance can we actually hold?
On a stable feature with a good datum, ±0.005 mm (±0.0002 in) is achievable on our five-axis and mill-turn equipment. That number is not automatic across an entire part. It applies to the features we identify during the DFM review and confirm at first article.
Deep bores, thin walls, and long unsupported features drift more because of tool deflection and heat. If a drawing calls for ±0.005 mm on a 200 mm thin-wall feature, we will say so before quoting, and we will propose either a fixturing change or a relaxed callout.
Does a lower price always mean more setups?
Not always, but it is worth checking. A shop that quotes 20 percent below everyone else may be planning to run the part in more setups, skip a finish pass, or inspect less. Ask what is included: first-article report, in-process checks, final inspection, and packaging.
We run 100 percent inspection before shipment, with raw material checks and in-process monitoring. If a supplier cannot tell you what inspection steps are in the quote, the price comparison is not like for like.
When is five-axis worth the higher hourly rate?
When it removes setups. A part with features on five faces that needs four setups on three-axis machines often runs in one or two setups on a five-axis center. Fewer setups means less stack-up error and less labor, which usually outweighs the hourly difference.
Five-axis also reaches undercuts and contoured surfaces that a three-axis machine cannot cut without a custom fixture. If the geometry is prismatic with one approach direction, three-axis is cheaper and just as accurate.
How do we handle material substitution requests?
Send the substitution in writing with the reason. We check whether the replacement is available in the size and condition needed, then confirm the effect on cycle time, finish, and any certification requirement.
On aerospace, automotive, and medical parts, substitutions need to go back through the customer's engineering approval. The material certificate has to match the released drawing. We will not swap a grade on the shop floor.
What does the first article tell us?
It tells you whether the process, the fixture, and the inspection plan produce a part that matches the drawing. We measure the critical features, record the values, and compare them against the tolerance block.
If a dimension sits near a limit, we adjust the process before the batch starts. It is much cheaper to correct a setup after one part than after 2,000. That is why we recommend ordering one piece first on any new design.
Can you start production within 24 hours?
Yes, once the drawing, material, and finish are confirmed and the material is on hand. Quotation and DFM analysis come back within 12 hours, and standard parts ship in 3–5 days.
Complex geometry, special material grades, or a finish that requires an outside process will extend that. We tell you which item is driving the schedule so you can decide whether to adjust the design or accept the longer lead time.
