Every machine grows when it warms up. On an SCM M100 CNC the spindle nose, ball screws, and column all expand at different rates. A shop that starts a high-tolerance job 5 minutes after power-on is cutting a different machine than the one that ran the night before. The error is not random. It shows up as a Z shift of 0.01–0.03 mm in the first 30–60 minutes, then settles.

The fix is boring but effective. Run a 20–30 minute warm-up cycle that exercises the spindle at 3,000–6,000 rpm and moves all three axes through at least half their travel. Do not cut anything. The goal is to bring the casting and screws to a stable temperature, not to make chips.

After the warm-up cycle, run a warm-up part in the same material as the production job. Measure it. If the first warm-up part is 0.02 mm off and the second is on size, the machine was still moving. Cut the production part only after two consecutive warm-up parts agree within 0.005 mm.

• 1
  Typical warm-up20–30 minutes, spindle 3,000–6,000 rpm, all axes exercised.
• 2
  Common errorStarting the first article cold and chasing the offset all morning.
• 3
  CheckTwo warm-up parts within 0.005 mm before production.

Hand-set offsets work once. They fail when the same fixture is loaded on second shift with a different operator. A spindle probe removes that variable. Touch off the fixture datums, the stock face, and one known bore, then let the control write the work offset. On most jobs this takes 90 seconds and removes the largest single source of scrap.

Probe routines need clean surfaces. A chip under the stylus reads as 0.05–0.1 mm of false position. Air-blast the datum and the stylus tip before every cycle. Replace the stylus after any crash, even a light one, because a bent ruby ball still touches off, just at the wrong point.

For repeat jobs, store the probe results in a named offset and log the values. If the X value moves more than 0.01 mm between two setups on the same fixture, the fixture or the locating pin is worn. That trend is more useful than any single measurement.

• 1
  Probe cycle timeAbout 90 seconds for three datums.
• 2
  Watch the trendOffset drift over 0.01 mm between setups means fixture wear.

A tool that is 0.02 mm short cuts a 0.02 mm deep floor. Measure tool length and diameter offline on a presetter, load the values into the control, and then verify with a test cut on scrap. The test cut tells you whether the number in the table matches the tool in the spindle. It is the only way to catch a wrong offset before it becomes a scrapped part.

Keep the tool list short and stable. Every added tool adds a chance for a wrong offset, a wrong coolant setting, or a missed wear update. On a job with 12 tools, the risk is manageable. On a job with 28 tools, one of them will be wrong.

Wear offsets should be updated on a schedule, not on a feeling. Measure a finished feature every 20–30 parts and adjust the wear offset by the measured difference. If the difference is bigger than 0.01 mm, stop and check the insert or the coating before you adjust.

• 1
  Verify every toolTest cut on scrap before the first production part.
• 2
  Update wear on a countMeasure a feature every 20–30 parts.

A fixture that is easy to load is often too soft to cut against. If the part deflects 0.01 mm under a 600 N cut, the finished wall will be tapered no matter what the toolpath says. Support the part under the cutting zone, clamp over the supports, and keep the clamp force low enough that it does not distort a thin wall before the cut starts.

For thin plates and rings, use a sacrificial backing plate or a low-melt fixture. Both add setup time, but they remove the spring-back that shows up as a size error after unclamping. A part that measures on size while clamped and 0.03 mm off after release was never held correctly.

Check the fixture before every run. A loose bolt or a worn locating pin moves the part, and the probe will compensate for a problem that is still there. Probing hides a soft fixture. It does not fix it.

• 1
  Rigid supportSupport under the cut, clamp over the support.
• 2
  Thin wallsBacking plate or low-melt fixture reduces spring-back.
• 3
  Inspect the fixtureLoose bolts and worn pins move the part.

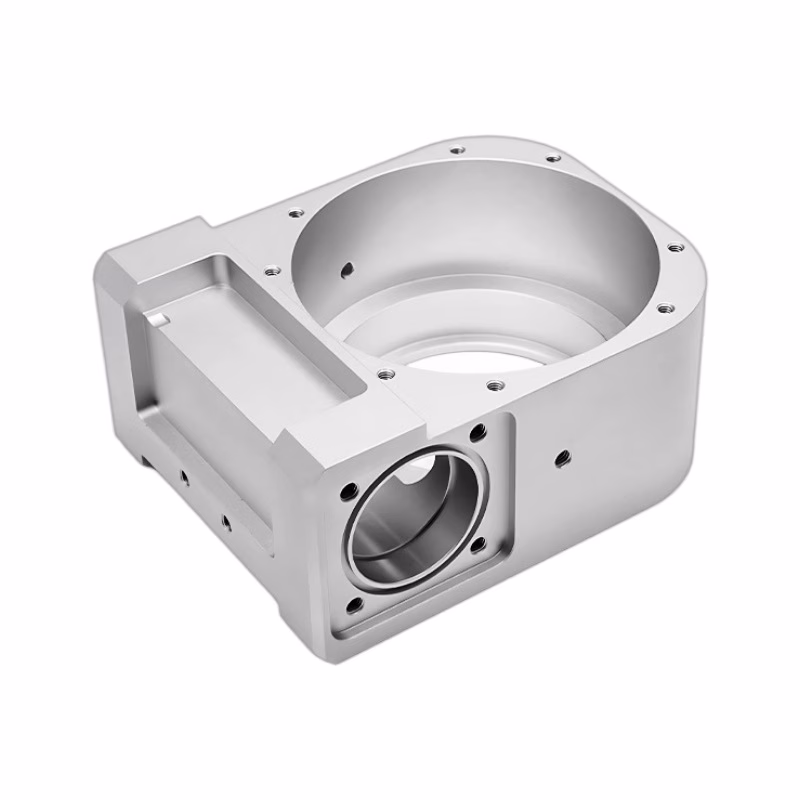

Roughing and finishing should not share a parameter set. Rough at high feed and moderate speed to remove material fast, leaving 0.3–0.5 mm of stock for the finish pass. Finish with a smaller radial engagement and a higher surface speed. On aluminum, 6061 and 7075 finish well at 8,000–12,000 rpm with a 0.2–0.3 mm radial step and a feed of 0.05–0.10 mm per tooth.

Heat is the enemy of tolerance. A finishing pass that rubs instead of cuts raises the temperature of the part and the tool. The part grows, the tool wears, and the measured size drifts during the run. If you see a size trend across a batch, look at the chip color and the tool edge before you look at the control.

Leave the finish pass for last on critical faces. If a face is machined early and then measured after every other operation, any later clamping or heat cycle can move it. Sequence the operations so the tightest faces are cut closest to the end of the cycle.

• 1
  Roughing stockLeave 0.3–0.5 mm for the finish pass.
• 2
  Aluminum finishing8,000–12,000 rpm, 0.2–0.3 mm radial step, 0.05–0.10 mm per tooth.
• 3
  SequenceCut the tightest faces last.

Unplanned downtime rarely starts with a broken part. It starts with a filter, a way cover, or a chip pile. Check the coolant filter and the way lube level at the start of every shift. A clogged filter raises coolant temperature, which changes the thermal state of the machine and the part. A low lube level wears the guideways, and the wear shows up as a surface finish problem long before it shows up as a position error.

Chip management is part of precision. Chips that pile up under the table push against the way covers and can block axis travel. They also carry heat away from the cut in the wrong direction. Clear chips at every tool change on long cycles, and never let a pile build up overnight.

Schedule the checks that take the machine offline. Spindle runout, ball screw backlash, and level check should be on a calendar, not on a breakdown. A backlash check that reads 0.008 mm is a warning. The same check at 0.02 mm is a repair. Catching the trend early is what keeps the SCM M100 CNC out of the downtime column.

Keep a simple log. Date, check, value, action. After three months, the log tells you which axis is drifting and which tool is wearing fastest. That is more useful than any single measurement on any single day.

• 1
  Every shiftCoolant filter, way lube level, chip pile.
• 2
  MonthlySpindle runout and ball screw backlash check.
• 3
  Log itDate, check, value, action. Trends beat snapshots.
