What the Number on a CNC Machine Means

• 1
  What the Number on a CNC Machine Means in Axis Terms
• 2
  3-Axis: What You Get and What You Give Up
• 3
  The Fourth Axis: Rotation About One Direction
• 4
  5-Axis: Two Rotations and Continuous Tool Control
• 5
  How to Read an Axis Number Before You Request a Quote
• 6
  Axis Count Compared: Reach, Setup and Fit
• 7
  Boundary Conditions for Adding Axes

An axis is a direction of controlled motion, and the number counts how many of them can move at the same time under one program. On a 3-axis mill the table moves in X and Y, the spindle moves in Z, and the tool always approaches the part from the same direction. Adding a fourth or fifth axis does not make the machine faster. It changes which faces you can reach without stopping to refixture the part.

That is the whole point of the number. A 3-axis machine can cut any geometry the tool can see from directly above. Undercuts, side holes at odd angles and sculpted surfaces that wrap around the part are the problem. You either flip the part, build a custom fixture, or move to a machine with more axes. Each of those choices shows up in the quote.

The count also describes simultaneity, not total travel. A machine may have a rotary table and still be sold as 3+1 if the table only indexes between cuts. True 4-axis and 5-axis machines interpolate the rotary axes while cutting. That difference decides whether you get a faceted surface or a continuous one.

So when you read a spec sheet, do not stop at the digit. Ask what moves, how many axes run at once, and what work envelope is left when the rotary axes are tilted. Those three answers explain most of the price gap between machine classes.

• 1
  3-axisX, Y, Z only. Tool approaches from one direction.
• 2
  3+1 or 3+2Rotary table indexes, then cuts. Positional, not simultaneous.
• 3
  4-axisOne rotary axis interpolates with X, Y, Z.
• 4
  5-axisTwo rotary axes interpolate together with the linear axes.

A 3-axis mill is the most common machine in a job shop, and for a large share of parts it is the right one. Prismatic parts with features on one or two faces, plates, brackets, housings with open pockets, and anything with holes parallel to Z cut cleanly and cheaply. Setup is simple. Workholding is simple. Programming is fast.

The limit appears the moment a feature faces sideways. A cross hole in a shaft, a slot on a vertical wall, or a pocket floor that is not normal to the spindle needs a second setup. Each extra setup adds fixture cost, adds a datum transfer, and adds stack-up error. On a tight part, two setups can eat more tolerance than the cut itself.

Deep cavities are another boundary. A long tool that reaches the floor of a pocket deflects, so you reduce feed and increase the number of passes. On a 3-axis machine you cannot tilt the tool to shorten the effective reach. The result is slower cycles and a higher risk of chatter on thin walls.

None of this makes 3-axis wrong. It makes it specific. If your part can be cut from one or two directions with standard cutters, adding axes adds cost without adding value.

• 1
  Good fitPlates, brackets, open pockets, holes along Z.
• 2
  Poor fitUndercuts, wrap-around contours, many angled faces.
• 3
  Typical toleranceHeld at ±0.005 mm on rigid setups with sharp tools.

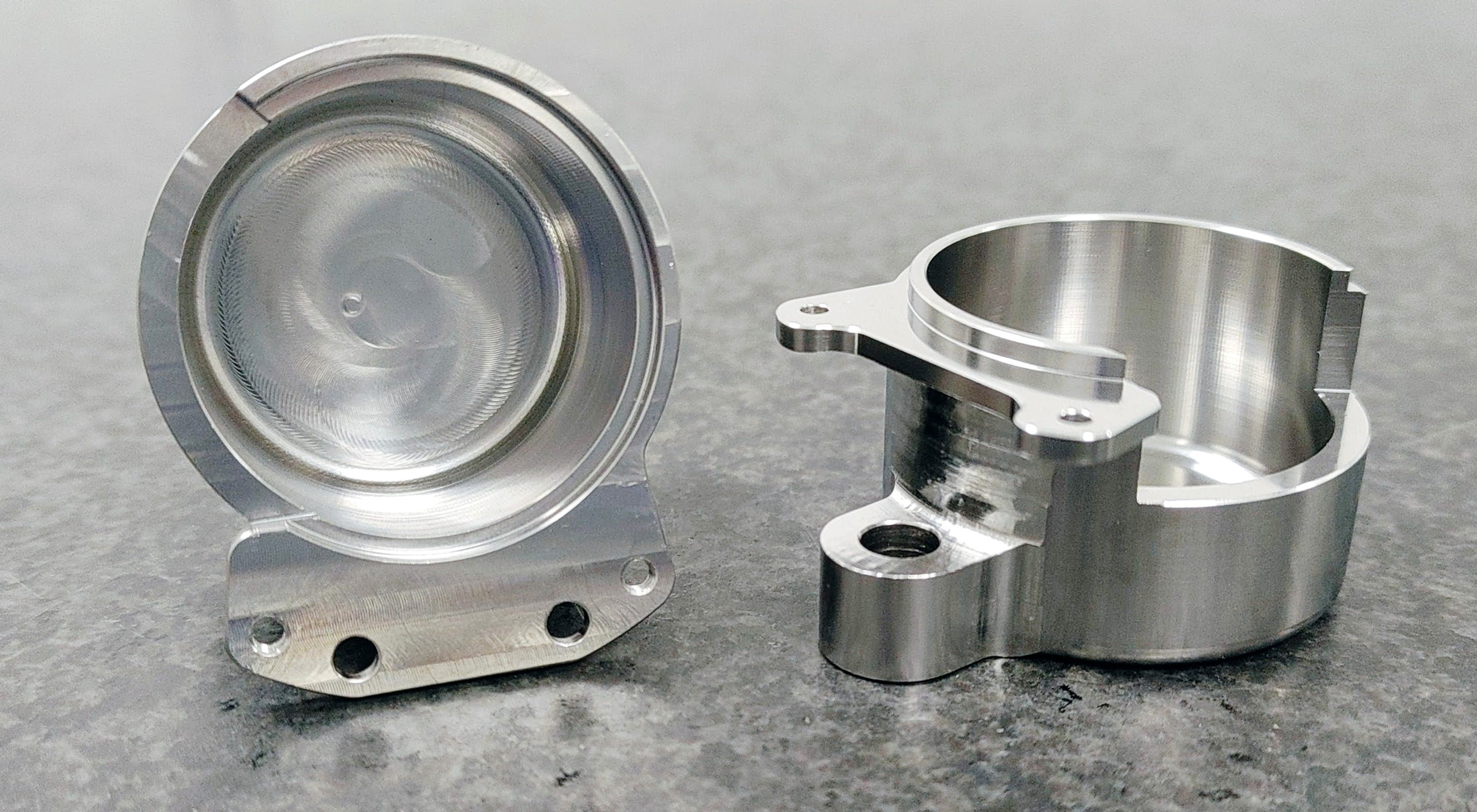

A 4-axis machine adds one rotary axis, usually A about X or B about Y, mounted on the table or as a trunnion. The part turns while the tool cuts, so features around a cylindrical body can be machined in a single setup. Shafts with cross holes, cams, impellers with straight blades, and connectors with radial ports are classic 4-axis work.

The gain is not only reach. Because the part stays clamped, the positional relationship between features on different faces is set by the machine, not by a fixture. That removes a whole class of alignment error. On a part with a true position callout of 0.02 mm between a bore and a radial hole, that matters more than spindle speed.

There are limits. A single rotary axis still leaves one direction unreachable. Deep pockets on the end face of a long shaft may need a second operation. And a rotary table adds mass, which can reduce the dynamic stiffness of the setup compared with a part bolted directly to a plate.

Tool clearance is the other constraint. As the part rotates, the tool holder must clear the chuck or the fixture at every angle. Programmers check this in simulation, but it is worth checking on the drawing too: a feature placed close to the clamping end can be hard to reach.

• 1
  Good fitShafts, cams, radial holes, cylindrical bodies.
• 2
  Poor fitFreeform surfaces with compound curvature.
• 3
  Watch forHolder clearance near chucks and fixture jaws.

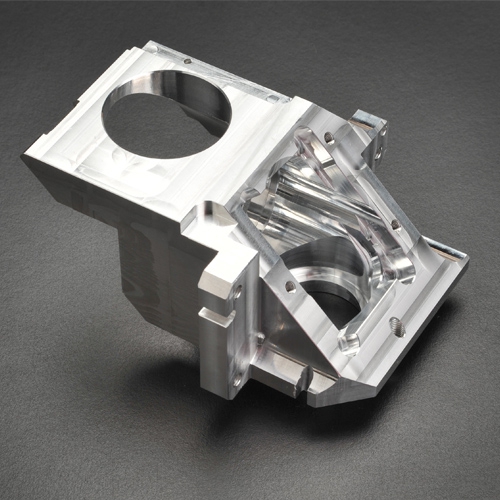

A 5-axis machine adds a second rotary axis, so the tool can be oriented anywhere in a hemisphere around the part. The practical effect is that a single setup can machine five faces, and the tool can be tilted to keep a short, rigid portion of the cutter in contact with the work. Short tools deflect less. That is where the accuracy gain comes from.

There are two common layouts. In a trunnion machine the part tilts and rotates under the spindle. In a swivel-head machine the spindle tilts while the table rotates. Trunnion machines handle heavier parts; swivel heads reach into deep cavities with shorter tools. Both are counted as 5-axis, but they suit different jobs.

Continuous 5-axis interpolation is what makes sculpted surfaces possible. The control keeps the tool tip on the surface while rotating the tool axis, so the contact point stays consistent. Without that, a ball nose cutter leaves visible step marks and you spend hours polishing. With it, a turbine blade or an organic housing can come off the machine close to final form.

The cost is real. Programming takes longer, simulation is mandatory, and the machine itself is more expensive to run. Use 5-axis where the geometry demands it, not where a 3-axis machine with a good fixture would do.

• 1
  TrunnionPart tilts and rotates. Better for heavy, compact parts.
• 2
  Swivel headSpindle tilts. Better access into deep cavities.
• 3
  Real benefitShort rigid tools, fewer setups, consistent surface finish.
• 4
  Real costLonger programming, simulation, higher hourly rate.

Start with the feature that faces the wrong way. If every critical feature is visible from one direction, a 3-axis machine will usually be the cheapest path. If a single feature faces sideways, price out the extra setup before jumping to 4-axis. Sometimes a fixture costs less than an hour on a 5-axis machine.

Next, count the datums. Each setup introduces a new datum and a new chance for stack-up. If your drawing has tight true position between features on different faces, reducing the setup count is often worth more than tightening the machine tolerance. That is a 4-axis or 5-axis argument, not a spindle-speed argument.

Then look at the tool. If the pocket is deep enough that the cutter needs a length-to-diameter ratio above about 4:1, tilting the tool helps. A 5-axis machine can reach the floor with a shorter cutter, which raises feed and improves finish. That is a real productivity gain on deep cavities, not a marketing claim.

Finally, check the work envelope with the rotary axes tilted. A machine rated at 4,000 mm of travel may lose a large part of that when the table swings. Ask for the usable envelope at the angles your part needs, not the brochure number.

• 1
  One visible direction3-axis is usually enough.
• 2
  One sideways featureCompare fixture cost against 4-axis time.
• 3
  Tight cross-face datumsFewer setups wins over tighter tolerance.
• 4
  Deep cavity, L/D over 4:1Tilting the tool pays for itself.
