What Is a CNC Machine Wood?
A CNC machine wood setup is a gantry or overhead router that moves a spinning cutter along programmed toolpaths in sheet stock and solid blanks. This page explains the mechanism, the wood-specific limits, and how to tell whether a part belongs on a router or on a mill.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
- 7
What a CNC machine wood router actually does
A CNC machine wood router holds a cutter in a spindle and moves it along a path taken from a CAD model. CAM software converts the model into G-code: X, Y and Z coordinates plus feed rate, spindle speed and depth of cut. The machine repeats that path exactly, part after part, which is the whole reason to use it.
The cutting action is a rotating edge, not a blade. A two-flute straight cutter at 18,000 rpm and 3–6 m/min feed shears wood fibres in a shallow arc. Because wood is layered and fibrous, the cutter leaves a fuzzier edge than it would in aluminium. Sharpness, flute count and feed rate decide whether that edge needs sanding or is ready to use.
Most wood routers move the gantry over a fixed bed. That flat bed matters: sheet goods, MDF and plywood sit on it and are held down by vacuum, which is why nesting several parts from one 1,220 × 2,440 mm sheet is normal practice.
Because the gantry spans the bed, a wood router is wide but not stiff. That single fact explains most of the differences between routing wood and milling metal. The machine is built for a large work envelope and moderate cutting force, not for tight tolerances in hard material.
Three axes, five axes, and where each one fits
A three-axis router cuts from above only. It handles panel work, cabinet parts, signs, jigs and any profile that can be reached with a vertical tool. Roughly 27 three-axis machines in a typical shop cover that work, and they are the cheapest way to produce flat parts in volume.
A four-axis router adds rotation, usually by turning the blank or tilting the head. This is the right choice for table legs, turned posts, handrail sections and parts that need machining on more than one face without re-fixturing. Twelve four-axis mills in a shop the size of ours is a normal ratio for furniture and architectural work.
Five-axis machines tilt and rotate at the same time. They cut undercuts, curved chair arms and sculpted panels in a single setup, which removes the repositioning error that shows up when you flip a part by hand. Sixteen simultaneous five-axis centres is a metal-heavy figure, but the same kinematics apply to wood.
For wood, five-axis earns its cost when the part has a compound curve or when a visible face must not carry a fixture mark. For a flat cabinet door, three axes is faster and cheaper. Match the machine to the geometry, not to the brochure.
Which woods and sheet goods behave well
Dense, closed-grain hardwoods machine cleanly. Maple, beech, walnut, cherry and ash hold an edge and take a finish without much tear-out. Hardness around 1,300–1,800 on the Janka scale is a good working range: firm enough to cut cleanly, not so abrasive that tool life collapses.
Softwoods like pine and fir cut fast but crush easily. A dull cutter compresses the earlywood and leaves a burr that only appears after staining. If you need a visible pine face, plan on a finishing pass with a sharp cutter at 0.2–0.5 mm radial engagement and accept that sanding is part of the process.
Sheet goods are the bread and butter of wood routing. MDF machines to a smooth, uniform surface because it has no grain direction. Plywood and melamine-faced board cut well but chip on the exit side, so a down-cut spiral or a sacrificial backer board is standard practice.
Exotic and resin-rich species are a different problem. Teak and ipe dull carbide quickly and can gum the cutter. Wenge and some ebony splinter along the grain. For these, reduce feed slightly, use a fresh cutter, and expect to run a test cut before committing a full blank.
Holding the part without marking it
Wood moves. It swells and shrinks with humidity, and a blank that measured 300 mm in the morning can shift by a few tenths of a millimetre by the afternoon. Fixturing has to allow for that without letting the part walk during the cut.
Vacuum tables are the default for sheet work. A spoilboard with a gasketed zone holds flat panels firmly and leaves no clamp marks on the face. For smaller parts, tabs left in the profile keep the piece attached until the last pass, then get cut or sanded off.
Solid blanks and sculpted parts often need a machined fixture instead. We cut a negative pocket in MDF or a soft plastic that matches the blank profile, then hold the blank in it with light vacuum or low-pressure clamps. That spreads the load and avoids crushing the wood.
Double-sided tape works for thin panels and prototypes, but it is not a production method. Heat, dust and time all weaken the bond. If a part has any chance of moving, use a mechanical or vacuum hold instead and keep the tape for setup checks.
What accuracy to expect in wood
Wood is not metal, and quoting metal tolerances on a wood part is a mistake. A router itself can position to ±0.05 mm on a good day, but the material will not hold that over a large part as moisture changes.
For furniture and architectural components, ±0.2 mm on a mating feature is realistic and usually enough. Panel thickness, hole spacing for hardware and groove widths all fall into that band. Tighter than that, you are fighting the material rather than the machine.

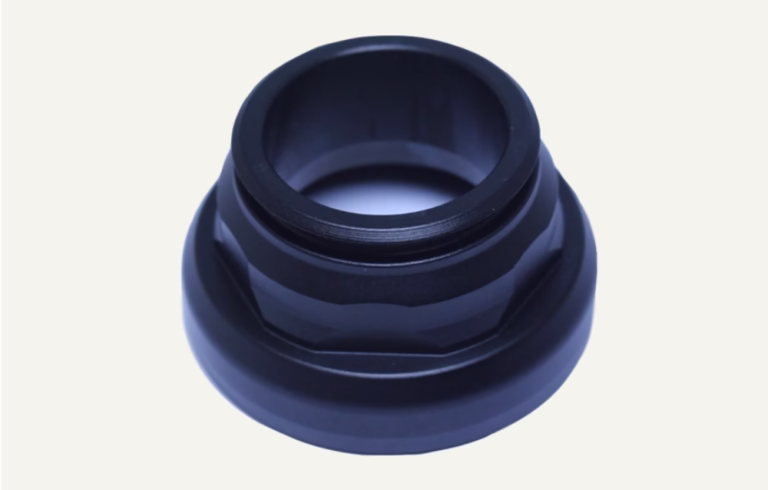

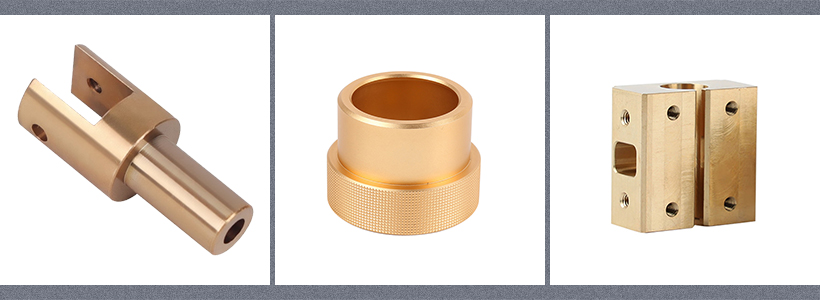

Where wood needs real precision, the answer is usually a fixture or an insert. A steel dowel, a machined aluminium bracket or a metal bushing carries the tolerance and the wood simply houses it. We machine both on the same floor, so the interface can be held to ±0.005 mm on the metal side.
Surface finish on wood is measured by feel and by how it takes stain, not by Ra. A Ra 1.6–3.2 μm finish is a normal sanded surface. A Ra 0.8–1.6 μm finish is achievable on dense hardwood with a sharp cutter and a light finishing pass.
From CAD file to finished wood part
The steps we run on a typical wood job.
- 11. Review the modelCheck wall thickness, grain direction and any feature thinner than 2 mm. Flag undercuts and deep pockets that need a longer cutter.
- 22. Run DFM and quoteQuotation and free DFM analysis within 12 hours. We list what will tear out, what needs a fixture, and where a tolerance is unrealistic.
- 33. Choose stock and orientationPick species and grain direction for the visible face. Sheet goods get nested; solid blanks get a witness mark so orientation survives machining.
- 44. Build the fixtureVacuum zone, machined pocket or tabbed profile. Test the hold with a scrap blank before the first good part goes on the bed.
- 55. Cut a test pieceRun the finishing pass on scrap at the same feed and depth. Check fuzz, chip-out and dimension before committing the batch.
- 66. Machine the runProduction can start within 24 hours of approval. In-process checks catch cutter wear before it shows on the last parts.
- 77. Sand, finish, inspectSanding, staining and sealing, then 100% inspection before shipment. Reports on request.
Router, mill, or hand work: picking the right process
Use this when a part could plausibly go more than one way.
| Part type | Best process | Why |
|---|---|---|
| Flat cabinet panel, 1,220 × 2,440 mm | 3-axis router with vacuum bed | Fast nesting, no fixture marks |
| Curved chair arm with undercut | 5-axis router | Single setup, no repositioning error |
| Turned table leg with square top | 4-axis mill | Rotation plus flat milling in one cycle |
| Prototype bracket, ±0.05 mm holes | Metal mill, wood cladding | Tolerance lives in the metal insert |
| One-off carved sign | 3-axis router, shallow passes | Low setup cost, toolpath is simple |
| Teak or ipe outdoor part | 3-axis router, fresh carbide | Reduce feed, expect fast tool wear |
| Thin veneer panel, 3 mm | Vacuum bed, down-cut cutter | Prevents lift and exit-side chipping |
| Large batch of identical dowels | 4-axis or lathe with bar feed | Repeatability beats single-part speed |
When to route wood and when to mill metal
If the part is flat, large and cosmetic, route it in wood on a three-axis machine and accept ±0.2 mm. If the part carries a real tolerance, a thread or a bearing seat, machine that feature in metal and let the wood be the housing. Choose the process by the tightest feature on the drawing, not by the bulk material.
Questions engineers ask about wood routing
Can a CNC router hold ±0.05 mm in wood?
The machine can position that closely, but the material will not hold it. Wood moves with humidity, and a large part can shift more than the tolerance band between machining and inspection.
For mating features, use ±0.2 mm on the wood and put the tight dimension in a metal insert or a machined fixture.
Does grain direction change the toolpath?
Yes. Cutting across the grain gives a cleaner edge than cutting along it, and climb cutting on the finishing pass reduces tear-out on the exit side.
We set the toolpath direction per face and mark the blank so the visible face is oriented before the first cut.
What is the largest wood part you can machine?
Maximum processing size is 4,000 mm, with a large travel of 4,000 × 400 × 150 mm. Medium travels are 750 × 1,150 × 550 mm and 600 × 600 × 600 mm.
Compact machines run 500 × 500 × 450 mm and 500 × 310 × 200 mm. A Ø400 mm rotary table covers turned and indexed work.
How do you stop chipping on plywood and melamine?
Use a down-cut spiral cutter on the top face, back the panel with a sacrificial board, and take a light finishing pass of 0.2–0.5 mm.
Reducing the feed at the exit corner also helps. For visible faces, we run a test cut on the same batch of board first.
Do you machine wood and metal on the same job?
Yes. A common build is a wood housing with a machined aluminium or stainless bracket inside it. The metal side holds ±0.005 mm, the wood side holds ±0.2 mm.
Both come off the same floor, so the interface is checked as one assembly before shipment.
What happens to cutter wear over a long run?
Carbide dulls faster in resin-rich and abrasive species. Feed force rises and edge quality drops before the dimension moves.
We check the first part, a mid-run part and the last part, and change the cutter when fuzz on the test coupon increases.
