What Is a CNC Wood Lathe Machine?

• 1
  How a cnc wood lathe machine removes material
• 2
  Axes, tooling, and what the controller actually controls
• 3
  When turning beats milling, and when it does not
• 4
  Tolerances, moisture, and the finish you can hold
• 5
  Where the machined metal parts around a wood lathe come from
• 6
  Turning wood vs milling wood vs machining metal

A cnc wood lathe machine holds a wooden blank between a headstock and a tailstock and spins it about a single horizontal axis. The cutting tool sits in a carriage instead of in a turner's hands. The controller reads a program and moves that carriage along the bed while the blank rotates, so every pass repeats the same path at the same feed.

The cut itself is a scraping or shearing action at the surface of a rotating cylinder. Surface speed depends on diameter and rpm, so a Ø80 mm blank at 1,500 rpm runs at roughly 380 m/min at the rim, while a Ø20 mm section at the same rpm runs far slower. Controllers and CAM posts usually handle this by ramping rpm as the tool moves inward.

Wood behaves nothing like steel here. Grain direction changes the cutting force several times around one revolution. End grain cuts cleanly at high rake angles and light depth of cut; side grain tears if the tool rubs instead of slicing. A CNC program cannot feel that change, so the toolpath and the tool geometry have to be chosen to survive all grain orientations.

Chips clear by gravity and airflow. There is no flood coolant. Dust extraction at the tool holder is part of the machine, not an accessory, because fine wood dust is both a health hazard and a fire risk in an enclosed bed.

• 1
  Rotation is continuousThe blank spins; the tool moves in a programmed path.
• 2
  Grain is not uniformCutting force varies around every revolution.
• 3
  No coolantDust extraction replaces flood coolant.

Most wood lathes are two-axis machines. The Z axis runs along the bed, parallel to the spindle. The X axis crosses the bed and sets the diameter. A two-axis lathe can cut beads, coves, tapers, cylinders, and long gentle profiles, which covers a large share of furniture legs, balusters, and handles.

Adding a Y axis or a rotary C axis on the spindle turns the machine into something closer to a mill-turn. That is what lets a lathe cut flutes, twist patterns, and non-round features at indexed positions around the part. Some machines carry a second carriage or a router head for that work, and a few run a tool turret that swaps round-nose, square, and parting tools mid-program.

Motion comes from ball screws on hardened and ground guideways, or from linear rails. Backlash, screw pitch error, and rail straightness set the achievable profile accuracy far more than the controller does. A machine that repeats to ±0.05 mm on a wooden leg is doing well, because wood moves with humidity after the cut anyway.

The controller is only as good as the post processor. CAM software turns a CAD model into G-code, and the post has to know the machine's acceleration, the spindle's rpm range, and the safe retract planes. A post tuned for metal will often feed too slowly for wood and burn the surface.

• 1
  Z axisTravel along the bed, parallel to the spindle.
• 2
  X axisCross travel, sets the diameter.
• 3
  C or Y axisAdds flutes, twists, and off-axis features.

Turning wins whenever the part is a solid of revolution and the batch is larger than a handful. A turned leg, a dowel, a handle, or a chess piece needs one continuous profile. On a manual lathe, a skilled turner reproduces that profile by eye and by template. On a CNC lathe, the profile is in the file, so piece 400 matches piece 1.

Turning also wins on material efficiency. A cylinder blank is already close to the finished shape. There is no pocketing to clear and no large volume of chips to cut. For a 2 m baluster, that difference in cycle time is substantial.

Milling wins when the part is not round. A bracket, a plate, a housing with bores on several faces, or anything with flat datums and tight hole positions belongs on a machining center. Wood can be milled too, but most production wood parts that need flats and holes are cut on a router or a 5-axis mill, not on a lathe.

Milling also wins when the requirement is dimensional. Wood moves. A part cut to ±0.1 mm in January can be a different size in July. If the drawing calls for ±0.005 mm and a stable material, the part should not be wood.

• 1
  Choose turningRound, radial, or profiled parts in volume.
• 2
  Choose millingFlats, pockets, and multi-face hole patterns.
• 3
  Choose metalTight tolerances and stable dimensions over time.

Wood is a hygroscopic material. It takes on and releases water with the surrounding air, and it moves mostly across the grain. A turned Ø50 mm leg in a dry winter shop can measure differently in a humid summer. No machine accuracy compensates for that.

This is why wood drawings rarely carry a tight linear tolerance. A sensible callout for a turned wood part is ±0.5 mm on diameter and ±1 mm on length, with a note that the part is measured at 20 °C and 50% relative humidity. Tighter than ±0.1 mm is usually wasted effort unless the part is a pattern for casting.

Finish comes from sanding, not from the tool. A CNC lathe leaves a scalloped surface wherever the stepover is visible. Typical shop practice is to leave 0.3–0.5 mm of radial stock and sand it out through 120, 180, and 220 grit. Tool marks cut cleanly by a sharp cutter sand out faster than torn grain.

Feed rate and rpm matter more than depth of cut on wood. Light passes at high rpm shear the fibers. Heavy passes at low rpm tear them, and the tear-out shows up after the first coat of finish, when it is too late to fix cheaply.

• 1
  Tolerance reality±0.5 mm on diameter is normal for wood.
• 2
  Stock for sandingLeave 0.3–0.5 mm radial stock.
• 3
  Moisture noteSpecify the measuring environment on the drawing.

The wood is soft; the machine that turns it is not. Headstock spindles, tailstock quills, ball screw nuts, tool turret housings, and the linear rail mounting faces are all machined metal parts held to tolerances far tighter than the wood they cut.

A spindle housing usually needs a bore concentric with its mounting face within a few thousandths of a millimeter. If that bore runs out, the blank wobbles, and the wobble shows up as an out-of-round leg that no amount of sanding hides. The same applies to the tailstock center height, which has to align with the headstock axis over the full bed length.

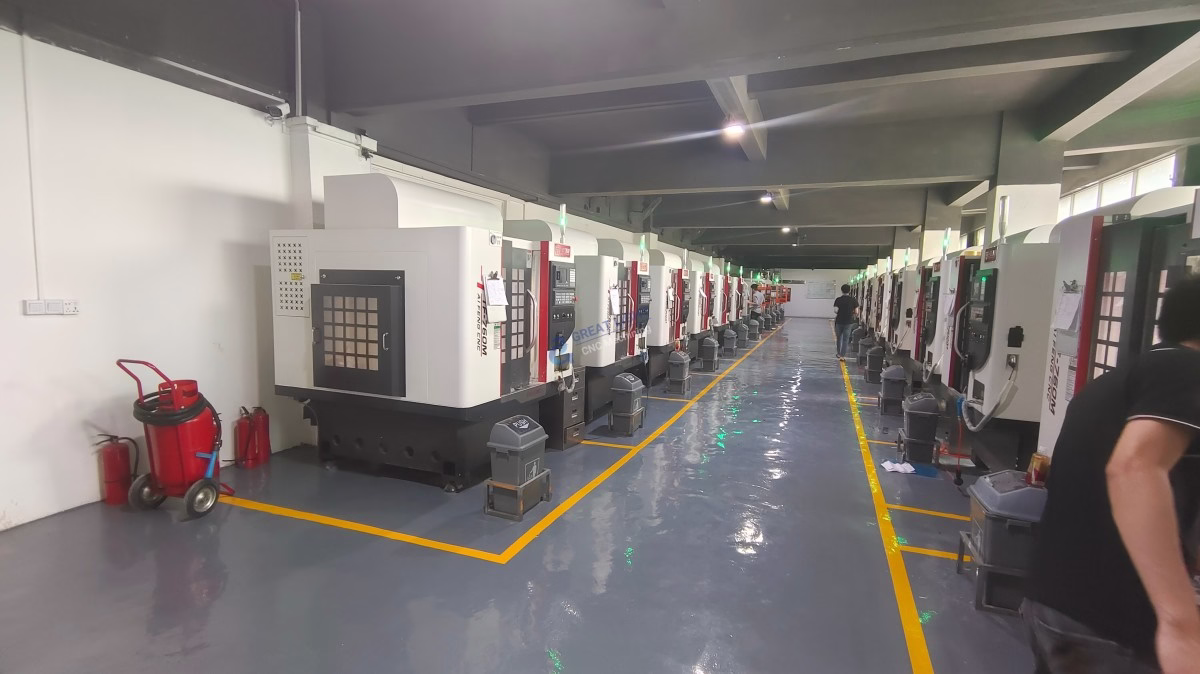

We machine those parts at GreatLight. Our 16 simultaneous 5-axis centers and 16 mill-turn centers hold ±0.005 mm on bores, faces, and hole patterns, and our inspection runs on 100% of parts before shipment. Tolerances on machine-tool components are frequently tighter than that, which is exactly why they are not cut on the wood lathe itself.

• 1
  Spindle housingBore concentric with the mounting face.
• 2
  Ball screw nutPitch accuracy drives profile accuracy.
• 3
  Tool turret bodyRepeatable tool seat position.
