5 CNC Titanium Machining Secrets to Drastically Cut Costs

The biggest single cost driver in titanium is setup count. Every time a part moves from one fixture to another, you pay for the load, the re-datum, the first-article check, and the risk of a scrapped workpiece that already has 20 hours in it. On Ti-6Al-4V that risk is real: the material work hardens, so a second roughing pass on an already machined surface cuts differently than the first.

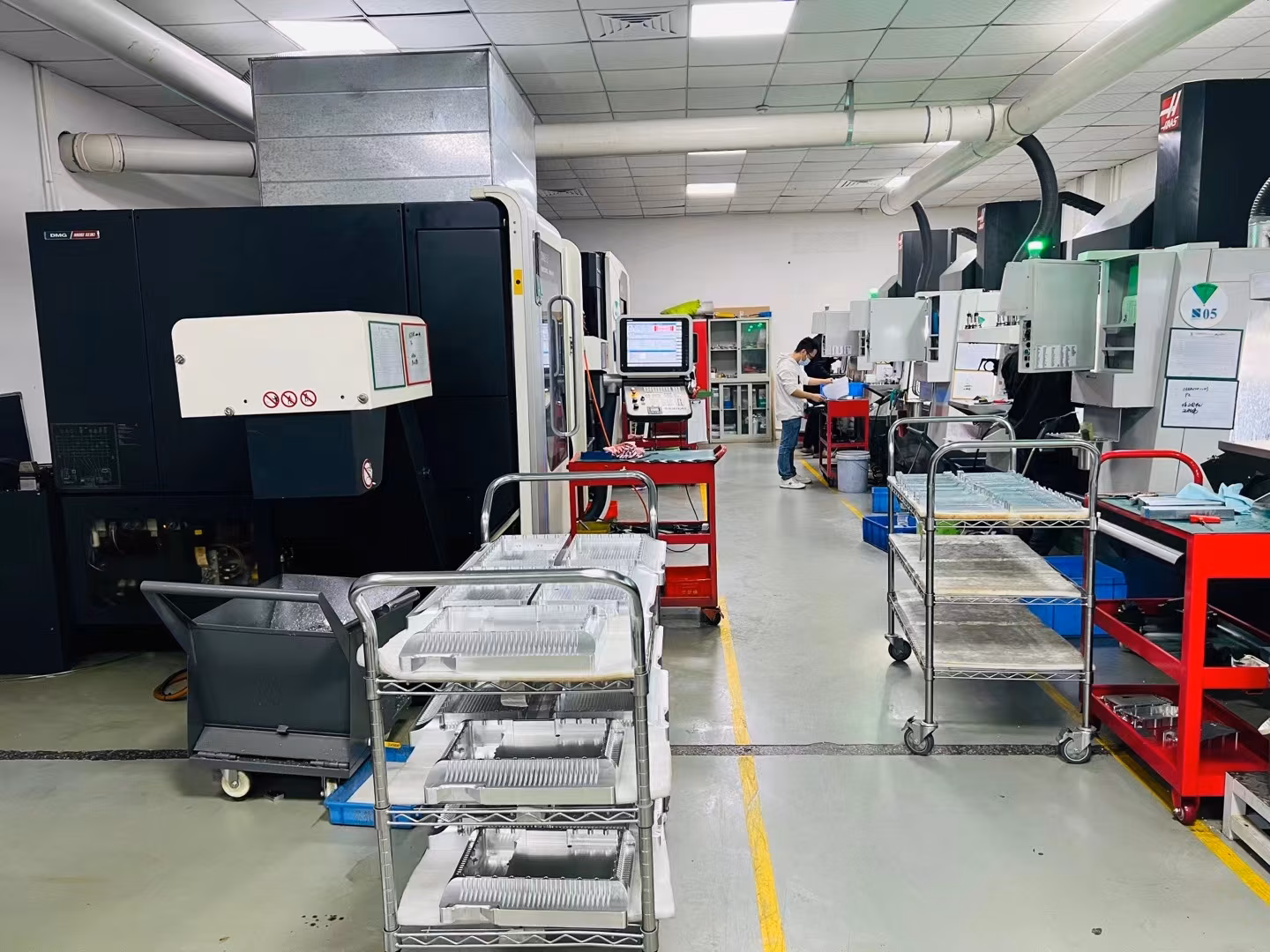

Five-axis machining removes setups rather than adding capability. A bracket with deep pockets and angled holes can often be finished in one or two operations instead of four or five. Fewer chuckings mean fewer datums, tighter true position between features, and less handling damage on thin walls.

This is where titanium parts earn the most. Satellite brackets, orthopedic implant bodies, and turbocharger housings all have sculpted contours or features on several faces. If your shop quotes a separate fixture and a separate setup charge for each face, that is the line item to attack first.

Not every part belongs on a 5-axis machine. A simple turned bushing or a flat plate with through holes is faster on a lathe or a 3-axis mill, and moving it to 5-axis only adds hourly rate. The test is simple: if the part has features on three or more faces, or a contour that needs simultaneous motion, 5-axis wins. If not, keep it on the simpler machine.

• 1
  Signs a part suits 5-axisFeatures on 3+ faces, deep pockets, angled holes, thin sculpted walls.
• 2
  Signs it does notPrismatic plate, single-face work, or a part that is really a turned shaft.

Titanium conducts heat poorly. About 80% of the heat generated at the cutting edge stays in the tool and the chip instead of going into the workpiece or the fixture. That is why a titanium tool can glow while the part still feels cool to the touch, and why edge life collapses without warning.

High-pressure through-spindle coolant is the baseline. Directed at the cutting zone at 70 bar or more, it breaks the chip, clears the pocket, and pulls heat off the insert. Flood coolant alone often cannot reach the bottom of a deep titanium pocket where the heat actually sits.

Chip load matters as much as coolant. Too light a feed rubs the surface instead of cutting it, which work hardens the next pass and doubles tool wear. Keep the feed per tooth high enough that each edge bites, and keep radial engagement low so the tool does not dwell.

Watch the spindle load and the chip color, not just the clock. Silver chips and a steady load are fine. Straw-colored chips mean the edge is running hot. When the color changes, change the insert, not the parameters.

Most titanium cost is decided at the CAD stage. A pocket with a 2 mm internal corner forces a small tool, low feed, and long cycle time. Opening that corner to 4 mm or 6 mm lets a stiffer tool run faster and hold the same tolerance. No material change, no function change, just a lower cycle time.

Wall thickness is the other quiet cost. Thin floors and walls vibrate, so the shop has to slow down and take lighter passes. If a wall can go from 1.0 mm to 1.5 mm without hurting the design, the part gets cheaper to make and less likely to scrap.

Threads and holes deserve a second look. A deep tapped hole in Ti-6Al-4V is a tap break waiting to happen. Where the joint allows it, specify a thread insert or a shallower engagement. If the thread must stay, expect the shop to thread mill it rather than tap it, which costs more but scraps less.

Tolerances should sit where they matter. Blanket ±0.005 mm across a titanium part drives inspection time and rework. Put the tight tolerance on the mating bore and the sealing face. Leave the rest at general tolerance and the part still works.

• 1
  Corner radiusKeep internal corners at 4× the tool radius where possible.
• 2
  Floor thicknessAvoid floors under 1.0 mm on long spans.
• 3
  Deep tapsThread mill or use an insert; do not force a bottom tap.

Titanium punishes a dull edge faster than steel or aluminum. One worn insert raises cutting force, which raises heat, which dulls the next edge sooner. The part that was in tolerance at hour two is out of tolerance at hour four, and the shop may not notice until final inspection.

Set a tool life limit and stick to it. Counting parts per edge is more reliable than listening to the spindle. On a roughing operation in Ti-6Al-4V, an edge change every 30 to 45 minutes of cut time is normal. Trying to stretch that interval saves a few inserts and costs a workpiece.

Use tooling made for titanium: sharp positive geometry, a tough substrate, and a coating that resists heat. Aluminum-specific polished tools chip on titanium. General-purpose steel tools survive but run slow, which shows up as cycle time.

Keep the holder and the pull stud clean. A chip under the taper shows up as runout, and runout on a titanium finishing pass means a wavy surface and a rejected part. Wipe the taper on every change. It takes ten seconds.

A machined titanium part is rarely a finished part. It usually needs deburring, a specific surface finish, and often anodizing, passivation, or laser marking. When each step sits at a different supplier, the part spends more time in transit and in queue than on a machine.

Every handoff adds a packing step, a receiving inspection, and a new chance for damage on a thin edge. On medical and aerospace parts, each outside process also means another traceability record. Consolidating those steps under one roof removes most of that overhead and keeps one inspection record.

Finishing choices should match the function. A sealing face needs Ra 0.8–1.6 μm, while a non-critical cover can sit at Ra 1.6–3.2 μm as machined. Specifying a fine finish everywhere adds polishing hours for no functional gain.

Laser marking has a practical limit worth knowing early. Minimum character height is 1.5 mm. If the drawing calls for a 0.8 mm Data Matrix on a titanium implant, that is a marking process change, not a machining one, and it should be raised before the first cut.

• 1
  Sealing and mating facesRa 0.8–1.6 μm.
• 2
  General machined surfacesRa 1.6–3.2 μm as machined.
• 3
  Fine optical or bearing seatsRa 0.2–0.8 μm, plan extra time.
