Design CNC Machining Services: How to Pick the Right Supplier

• 1
  Key takeaways
• 2
  Which process fits your design stage
• 3
  Tolerance and surface finish: read the print, then the machine list
• 4
  DFM feedback: what a useful reply looks like
• 5
  Machine capacity: the numbers behind design cnc machining services
• 6
  Materials and finishing under one roof
• 7
  Certifications, confidentiality and order quantity
• 8
  Lead time and quote format: what to compare
• 9
  Common mistakes that add cost after the design freezes
• 10
  How to run a design CNC machining order, step by step

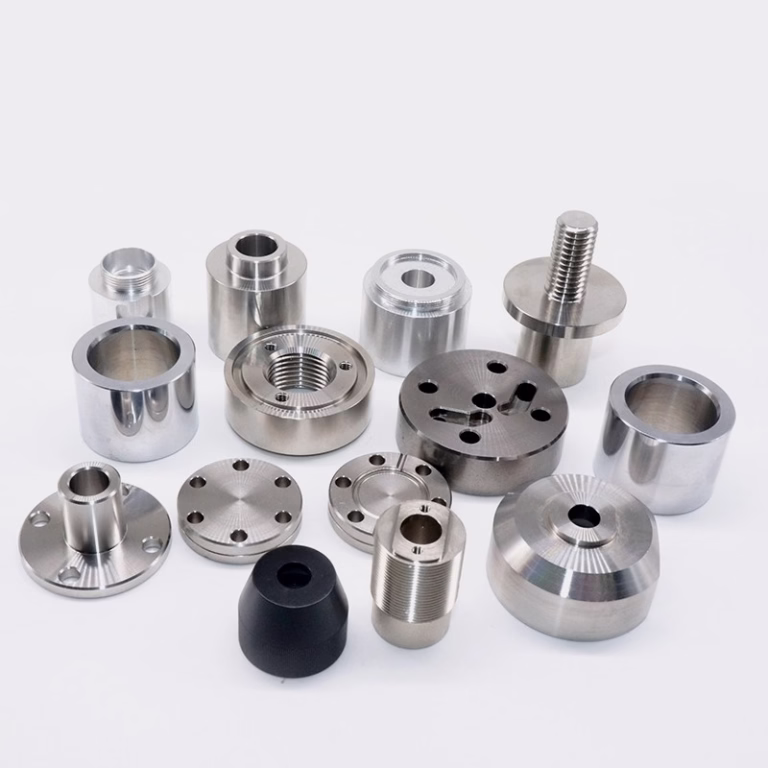

Most RFQs state a general tolerance block, then add two or three critical dimensions. Those critical dimensions decide which machine the job goes on. A simultaneous 5-axis center holds ±0.005 mm because the part is cut in one setup, so there is no re-fixturing error between features.

Surface finish is a separate cost line. Ra 0.2–0.8 μm usually needs a finishing pass with a smaller stepover or a polished insert. Ra 0.8–1.6 μm is a normal machined finish for aluminum and stainless. If your print calls Ra 0.4 μm on every face, you are paying for it whether the function needs it or not.

Ask the supplier how they verify, not just what they claim. Calipers and micrometers cover outside dimensions. Bore gauges, height gauges and CMM reports cover position and concentricity. We run 100% inspection before shipment and can send reports on request.

• 1
  Call out datumsA position tolerance with no datum reference cannot be inspected the same way twice.
• 2
  Group tight tolerancesSix tight dimensions on one face is one setup. Six spread across five faces is five.
• 3
  Specify finish by functionSealing face, sliding face, cosmetic face. Not the whole part.

Design CNC machining services are judged in the first 24 hours. A useful reply names the features that will be hard to cut and says why. Minimum inside radius smaller than the cutter that can reach the depth. A pocket 6× deeper than it is wide. A wall under 0.8 mm in aluminum that will chatter.

The reply should also say what changed. Sometimes the fix is a 0.5 mm fillet. Sometimes it is moving a hole 2 mm. Sometimes it is switching from 6061 to 7075 so a thinner wall stays rigid. If nobody suggests anything, the shop plans to cut it as drawn and eat the scrap cost in the price.

We return a quotation and a free DFM analysis within 12 hours. That analysis is written by the engineer who will program the part, not by a sales desk.

• 1
  Tool reachDepth-to-diameter over 4:1 usually needs a reduced-neck or long-reach cutter.
• 2
  Wall thicknessBelow 1 mm in aluminum, below 1.5 mm in steel, expect to discuss support and feed rates.
• 3
  Threads and small holesM2 and below in stainless needs a pilot drill sequence, not a single pass.

Capacity is where quotes quietly diverge. Our shop runs 127 high-precision CNC machines: 16 simultaneous 5-axis machining centers, 12 four-axis mills, 27 three-axis machines and 16 mill-turn centers. Maximum processing size is 4,000 mm, with large travels of 4,000 × 400 × 150 mm.

Medium travels cover 750 × 1,150 × 550 mm and 600 × 600 × 600 mm. Compact travels cover 500 × 500 × 450 mm and 500 × 310 × 200 mm. A Ø400 mm rotary table handles round parts that need features on four sides. If your part fits a compact machine, it should be quoted on one. Over-booking a large machine raises your price for no benefit.

For design work the 5-axis centers do the heavy lifting. Angled ports, sculpted ribs, impeller blades and medical instrument bodies all come off in one setup. Fewer setups means fewer datum shifts, and datum shifts are where tolerance stack goes wrong.

• 1
  One setup beats threeEach re-fixture adds its own position error to the stack.
• 2
  Size drives priceA part under 500 mm should not be quoted on a 4,000 mm machine.
• 3
  Rotary table for radial featuresCross holes and slots on a Ø400 mm table stay concentric.

Material choice is a design decision, but the shop has to stock it. We machine aluminum 6061, 6061-T6, 2024, 5052, 5083, 6063, 6082, 7075 and ADC12. Stainless covers 303, 304, 316, 316L, 420, 430, 431, 440C and 17-4PH. Steel runs from 1018 and 1045 through 4130, 4140, 4340 and tool steel.

Copper and brass include C101, C103, C110, beryllium copper, C27400, C28000 and C36000. Titanium and special alloys include TA1, TA2, TC4 (Ti-6Al-4V), Inconel and magnesium AZ31B / AZ91D. Plastics include ABS, PC, PMMA, POM, PA, PEEK, PP, HDPE and carbon fibre.

Finishing is where a two-vendor chain breaks. Parts travel to an anodizer, come back out of tolerance at the masking line, and the schedule slips a week. Anodizing, electroless nickel, zinc, silver and gold plating, powder coating, black oxide, bead blasting, tumbling, brushing, polishing and laser marking all run in-house here. Laser marking minimum character height is 1.5 mm, so keep part numbers above that.

• 1
  Anodizing moves dimensionsType II adds roughly 5-15 μm per surface. Call it out on tight bores.
• 2
  Hardcoat on aluminumWear surface, but it can chip on sharp edges. Add a 0.3 mm break.
• 3
  Laser marking limitsBelow 1.5 mm character height, contrast drops on dark anodize.

Certifications are scoped, not universal. We hold ISO 9001:2015, IATF 16949:2016, ISO 13485:2016 and ISO 27001:2022. Match the certificate to your industry: IATF 16949 for automotive and EV parts, ISO 13485 for medical devices, ISO 27001 when your drawings and CAD files need documented information security controls.

Order quantity is the other common blocker. There is no minimum order quantity here, from one prototype to 10,000+ part runs. That matters during design because iteration is the point. You will cut three versions before the design freezes, and each version should not trigger a tooling commitment.

Confidentiality is part of the quote, not an afterthought. Uploads are secure and confidential, and an NDA is available on request. If your program needs one signed before files move, say so in the first message.

• 1
  IATF 16949Automotive and EV programs, PPAP-style documentation.
• 2
  ISO 13485Medical devices, traceability and process validation records.
• 3
  ISO 27001Information security for CAD files, drawings and revision history.

Lead time claims are easy to make and hard to verify. The numbers we publish are: quotation and free DFM analysis within 12 hours, production can start within 24 hours, and parts ship in 3–5 days. Historical late-delivery probability is below 2%. Compare those against the process, not just the date.

A 5-axis part with two finishing operations will not ship in 3 days if the anodizer is a separate vendor. In-house finishing is what makes a short lead time credible. Ask where each operation happens and who owns the schedule between them.

Quote format matters too. A single lump sum tells you nothing about which feature is expensive. A line-item quote by operation lets you decide whether the Ra 0.4 μm face is worth the extra pass. We quote by operation so the design team can trade cost against function.

• 1
  Count the setupsEach setup is a separate fixturing and inspection cost.
• 2
  Ask about outsourced stepsHeat treat, plating and anodizing are the usual schedule leaks.
• 3
  Request the inspection planWhich dimensions get a CMM report, which get a gauge.

The most expensive mistake is a tolerance that nobody needs. A ±0.005 mm bore on a clearance hole forces a reaming operation, an in-process gauge check and a slower cycle. If the mating part has ±0.1 mm, the tight bore buys nothing.

The second is a sharp internal corner. A square pocket corner cannot be cut by a round cutter. Add a corner radius at least equal to the cutter radius, or expect EDM, which is slower and priced accordingly.

The third is finish on non-functional surfaces. Bead blasting the whole part when only the visible face needs it adds handling and masking time. Mark the cosmetic zone on the drawing. Suppliers quote what they see, and a vague finish note gets priced at the worst case.

• 1
  Tolerance creepTightening every dimension is cheaper than tightening the two that matter.
• 2
  Square cornersInternal corners need a radius. State it, do not leave it to the shop.
• 3
  Blanket finish notesFinish notes without a zone get priced at worst case.
