7 Essential Tips to Maximize CNC Machining Precision and Cut Costs
A practical sequence for design engineers and buyers who need tight parts without paying for tolerance they do not use. Each step lists the action, the numbers to hold, and the mistakes that quietly add cost.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
Key takeaways
Define tolerance zones before you quote
Most cost in a machining job comes from tolerance, not from material. A face that only needs clearance can hold ±0.05 mm at high feed rates. A bore that presses onto a bearing may need ±0.005 mm, which forces slower spindle speeds, lighter passes, and extra probing.
Tolerance zoning is how you maximize cnc machining precision where it matters and stop paying for it everywhere else. Mark the drawing in zones: critical fits at the tight limit, cosmetic surfaces at Ra 1.6–3.2 μm, and everything else at general tolerance.
A typical part is about 90% general tolerance and 10% tight. Machines run faster across the general zones, so the whole part ships sooner. When a print carries tight limits on every surface, we quote the worst case for the entire part.
- 1Tight only on fitsBearing seats, dowel holes, seal grooves, mating faces.
- 2Loosen the restBolt clearance, pockets, non-sealing walls.
- 3One datumCall out A, B, C and reference every tight feature to them.
Merge operations to protect position accuracy
Every setup adds a new source of position error. A part that moves from a 3-axis mill to a lathe and back to a mill carries three datums, three fixture offsets, and three chances for a chip to sit under a locator. A mill-turn center or a 5-axis machine holds two or three of those features in one setup.

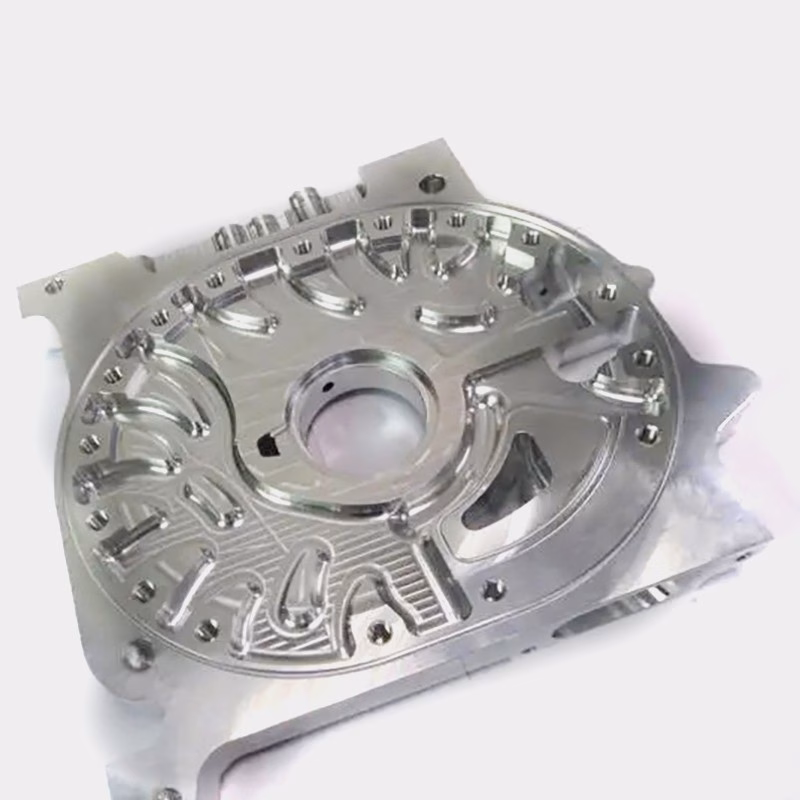

On parts with bolt patterns, bores, and angled faces, the gain is easy to see. The tolerance between features no longer depends on how well two operators aligned a vise. It depends on the machine's own geometry.
We hold ±0.005 mm on the 16 simultaneous 5-axis centers and the 16 mill-turn centers in our 7,600 m² plant. If a feature can be reached in the first setup, we keep it there, even when the cycle is a few minutes longer.
- 1Count the setupsThree or more usually means the position tolerance is at risk.
- 2Reach all sidesAngled heads and rotary tables cut re-fixturing.
- 3Keep datum continuousNever re-zero a tight feature off a cut face.
Match the material to the geometry
Material choice moves cycle time more than most engineers expect. Aluminum 7075 is stable, light, and machines fast, so it suits thin walls and long bores. Aluminum 6061-T6 is the default for brackets and housings where strength is moderate and price matters.
Stainless is where jobs slow down. Grade 304 work-hardens under the tool, so light passes dull the insert and raise the cutting temperature. Grade 303 machines freely and can cut cycle time by roughly 30% where corrosion resistance allows it. Grade 316L stays for medical and marine parts.
Titanium TC4 (Ti-6Al-4V) and Inconel hold their strength at temperature but punish both tooling and schedule. On those parts, we plan roughing passes that leave 0.5 mm of stock, then finish with sharp, coated tools and steady coolant to keep heat out of the edge.
- 1Prototypes7075 or 6061-T6 for fast turnaround and clean walls.
- 2High volumeFree-machining grades such as 303 or C36000 brass.
- 3No compromiseTi-6Al-4V and 17-4PH stay when the load case demands them.
Treat workholding as part of the process
A part cannot be more accurate than the way it is held. Soft jaws bored in place, a dedicated fixture plate, or a vacuum chuck all repeat better than a general-purpose vise. If a wall is thin, the clamp load will bow it, and a spring pass after unclamping moves the dimension again.
For thin sections, we support the back with a matched pocket and cut in two light passes rather than one heavy one. For long parts, we plan the support points so the part does not sag between them. The Ø400 mm rotary table handles round work that would otherwise need custom fixturing.
Fixtures are not free, but they pay back on the second or third part. On a 10,000-piece run, a fixture that holds ±0.01 mm without adjustment is the difference between a smooth schedule and constant rework.
- 1Bore soft jaws in placeJaw runout becomes part of the setup, not the error.
- 2Support thin wallsBack the wall with a pocket before the finish pass.
- 3Recheck after unclampingClamp spring shows up only when the load comes off.
Inspect in process, not only at the end
Tool wear drifts slowly, and a dimension that was in tolerance at part 5 can be out at part 80. In-process probing catches that drift before a batch of scrap is finished. On a mill-turn or 5-axis job, a spindle probe can check a bore right after the finishing pass and feed the offset back to the control.
For parts with a true position callout, we check the datum features first, then the tight features, then the general ones. That order tells us whether the error came from the setup or from the tool.
Every shipment from our plant passes 100% inspection, with raw material checks, in-process monitoring, and a final report available on request. The report is not a formality. It is how the next run starts from known numbers instead of assumptions.
- 1Probe after roughing
- 2Probe after finishing
- 3Track the trend
Control finishing and post-processing
A finish callout is a tolerance, and it costs like one. Ra 0.2–0.8 μm needs small stepovers and sharp tooling. Ra 0.8–1.6 μm is the common target for sealing faces. Ra 1.6–3.2 μm is fine for most structural and cosmetic parts and runs at normal feed rates.
Anodizing, plating, and powder coating add thickness as well as appearance. Hardcoat anodizing can grow a surface by 0.02–0.05 mm per side, so a bore that was in tolerance before coating may not be after. If a coated feature is also a fit, put the coating thickness on the drawing and machine the feature undersize on purpose.
Deburring and edge breaks belong in the process plan, not in a note at the bottom of the print. A sharp edge on a handling surface becomes a scratch source in the next operation.
- 1Specify Ra by functionSealing faces at Ra 0.8–1.6 μm; covers at Ra 1.6–3.2 μm.
- 2Allow for coatingAdd the plating or anodize build-up to the pre-finish dimension.
- 3Break edges by partHand deburring is slow and inconsistent on high volumes.
Work with one supplier from prototype to production
Splitting a job across a mill shop, a turning shop, and a finisher creates handoffs. Each handoff needs a purchase order, a drawing revision check, and a new setup. When a dimension misses, nobody owns the whole chain.
A single source keeps the datum history, the fixture, and the inspection data in one place. Our 127 high-precision CNC machines cover milling, turning, wire EDM, and finishing under one roof, so a part does not leave the controlled environment between operations.
The practical result is a shorter schedule and fewer surprises. We quote and return a free DFM analysis within 12 hours, and production can start within 24 hours of approval. Most parts ship in 3–5 days, with no minimum order quantity from one prototype to 10,000+ parts.
- 1One ownerOne team answers for the tolerance, not three vendors.
- 2One recordSetup sheets and inspection data follow the part number.
- 3One revisionThe shop floor always cuts the current drawing.
Step by step: from drawing review to shipment
Use this order on the next job. Each step names the number to hold and the mistake to avoid.
- 1Review the drawing for tolerance zonesMark tight features and general features in two colors. If more than 20% of surfaces are tight, ask the designer which ones carry a fit. Mistake to avoid: quoting the whole part at the tightest limit.
- 2Choose the datum setPick A, B, C from surfaces that exist in the first setup. Reference all tight features to them. Mistake to avoid: using a machined face as a datum before it is finished.
- 3Select the material gradeFor prototypes, 7075 or 6061-T6. For stainless, consider 303 before 304 if corrosion allows. Mistake to avoid: defaulting to 316L for parts that never see salt or sterilizer cycles.
- 4Plan the setupsAim for one setup on 5-axis or mill-turn work. Leave 0.3–0.5 mm of stock for the finish pass. Mistake to avoid: three vise setups on a part with a 0.02 mm position callout.
- 5Design or select the workholdingBore soft jaws in place, or cut a matched pocket for thin walls. Mistake to avoid: clamping a 2 mm wall in a general-purpose vise.
- 6Set cutting parametersRough at high feed and moderate speed; finish with lighter passes. For aluminum, keep the tool engaged and clear chips with air blast. Mistake to avoid: dwelling in a stainless cut and work-hardening the surface.
- 7Probe after roughing and after finishingUse the probe to update the tool offset between passes. Mistake to avoid: waiting for the final inspection to find a drift that started at part 20.
- 8Finish, deburr, and inspectApply the specified Ra, allow for coating build-up, break all handling edges, and record the results. Mistake to avoid: sending parts to anodize with the fit bore already at nominal size.
When a tight tolerance is worth the cost
Use the left column to check the feature type, then read across for the tolerance band and the process that holds it.
| Feature | Tolerance band | Typical process | Cost driver |
|---|---|---|---|
| Bearing seat or dowel hole | ±0.005 mm | 5-axis mill, boring head | Slow finishing, probing |
| Mating face with gasket | ±0.02 mm | 3-axis or 4-axis mill | Flatness check |
| Sealing face finish | Ra 0.8–1.6 μm | Fine stepover, sharp insert | Extra finishing time |
| Bolt clearance hole | ±0.1 mm | 3-axis mill, standard drill | Low, runs at high feed |
| Cosmetic outer wall | ±0.05 mm, Ra 1.6–3.2 μm | Mill, bead blast | Surface prep only |
| Thin wall under 2 mm | ±0.02 mm | Mill-turn, matched pocket | Fixture and light passes |
| Coated fit bore | ±0.005 mm before coating | Mill, then hardcoat | Coating build-up allowance |
Questions engineers ask before releasing a job
How tight a tolerance can a normal CNC shop hold?
It depends on the feature, not the shop alone. A bored hole on a rigid setup can hold ±0.005 mm. A long thin wall in the same part may only hold ±0.02 mm without a custom fixture.
We quote ±0.005 mm on features the process can actually support, and we say so when a callout needs a fixture or a different setup to be repeatable.
Does a tighter tolerance always cost more?
Almost always, because it changes the cutting strategy. Tight limits mean lighter finishing passes, more probing, and sometimes a fixture that would not otherwise be needed.
The saving comes from zoning. If you tighten only the 10% of features that carry a fit, the other 90% run at normal parameters and the part cost stays near the general-tolerance price.
When should I switch from 304 to 303 stainless?
Switch when the part does not need 304's corrosion resistance and you want shorter cycle times. Grade 303 machines freely and can cut machining time by roughly 30% compared with 304.
Stay with 304 or 316L for food equipment, medical devices, and outdoor marine hardware, where the corrosion margin matters more than the cycle time.
How much does anodizing change a dimension?
Hardcoat anodizing can add 0.02–0.05 mm per side, so a 20 mm bore can close by up to 0.1 mm on diameter. Clear anodizing adds less but still enough to matter on a tight fit.
Put the coating thickness on the drawing and machine the feature undersize on purpose. We do this on bores, slots, and threads that stay in tolerance after coating.
How many parts do I need before a fixture makes sense?
As a rule, if the fixture holds a tight feature without operator adjustment, it pays back within the first few parts. Below that, soft jaws bored in place are usually enough.
There is no minimum order quantity on our side, so a single prototype and a 10,000-part run both go through the same planning step.
Can I get inspection data with the parts?
Yes. Every shipment passes 100% inspection covering raw material checks, in-process monitoring, and a final check. Reports are available on request.
If you need first article data or a specific report format, send the requirement with the drawing so we plan the inspection points before the job starts.
