What Is the 5th Axis on a CNC Machine?

• 1
  The 5th Axis on a CNC Machine Is a Second Rotation
• 2
  Trunnion Tables vs Head-Table Machines
• 3
  Simultaneous 5-Axis vs 3+2 Indexed Machining
• 4
  What 5-Axis Machining Does to Tolerance and Finish
• 5
  Which Parts Belong on a 5-Axis Machine
• 6
  5-Axis Layout Comparison

A standard 3-axis mill moves the tool in three straight lines: X left and right, Y front and back, Z up and down. The cutter always approaches the work from the same direction. Add a rotary axis and the part or the spindle can tilt, which changes the angle of approach without anyone touching the setup.

The 4th axis is that first rotation. On most vertical mills it is the A axis, turning around X so the part rolls like a lathe chuck. Sometimes it is the B axis, turning around Y. Either way, the part can be indexed to a new face, but the tool still cuts from one side of the rotation plane.

The 5th axis is the second rotation, sitting at 90 degrees to the first. With both turning together, the tool normal (the direction the cutter points) can be aimed at any face of the part. That is the whole idea. Two rotations, one setup, no re-chucking.

The naming trips people up. A 5-axis machine does not have five cutting directions in the way a 3-axis machine has three. It has three linear axes plus two rotary axes. The two rotaries combine to give the tool freedom of angle, and that is what people mean when they ask what is the 5th axis on a cnc machine.

There are two common ways to build the two rotaries into a machine, and the choice changes what the machine can hold and how accurate it stays.

A trunnion machine puts both rotaries under the part: a C axis that spins the table and an A axis that tilts it. The part moves, the spindle stays upright. This layout handles heavy parts well and is the usual pick for 4,000 × 400 × 150 mm envelope work. The trade-off is that a heavy part on a tilting table can sag, so the machine needs a stiff table and good clamping.

A head-table machine splits the rotaries: one on the spindle head, one on the table. The spindle can swing out over the part while the table indexes. This suits tall parts and deep cavities where a tilting table would collide with the column. It also lets a Ø400 mm rotary table handle work that would be awkward on a trunnion.

A third type, the swivel-head machine, puts both rotaries in the head and leaves the table flat. It is popular for large, heavy parts that are hard to move, such as engine blocks and long structural extrusions. Each layout has a sweet spot. Picking the wrong one shows up as chatter, poor surface finish, or parts that need a second setup anyway.

Not every 5-axis job uses all five axes at once, and the difference matters for cost and finish.

In 3+2 mode, the two rotaries move to a fixed angle and lock. The machine then cuts like a 3-axis mill from that new angle. This is the workhorse for parts with features on five or six faces: housings, brackets, manifolds. It is faster to program, easier to verify, and usually the cheaper option. Most parts that engineers call "5-axis" are really 3+2.

In simultaneous mode, all five axes move together while the cutter is in the material. The tool tip follows a continuous path over a curved surface. This is what you need for impeller blades, turbine airfoils, and any part with a swept or twisted face that a ball nose cutter must trace without leaving facets.

Simultaneous cutting demands more from the machine. The controller has to keep five servo loops in sync, and small errors in the rotary axes show up as surface marks. It also needs more setup and prove-out time. For a part with flat faces at odd angles, 3+2 will match tolerance at lower cost. For a twisted blade, only simultaneous will do.

Every time a part is re-chucked on a 3-axis machine, a small error enters. Fixture wear, chip between the jaw and the part, a few microns of clamp deflection. Stack four setups and those microns add up. A 5-axis machine removes most of them because the part is set once.

That is why 5-axis shops can hold ±0.005 mm (±0.0002 in) on features that sit on different faces of the same part. The positional relationship between those features is set by the machine, not by the operator. On a 3-axis machine the same part needs a datum that survives every move, and it often does not.

Surface finish follows the same logic. A cutter held at the right angle to a curved surface leaves a smoother path than one dragging across it at a shallow angle. With good toolpaths and sharp tooling, 5-axis work reaches Ra 0.8–1.6 μm as a matter of course, and Ra 0.2–0.8 μm on finishing passes where the geometry allows.

There is a limit. Very long tools, deep pockets, and thin walls still chatter regardless of axis count. A 5-axis machine gives you angle freedom, not stiffness. If a part fails on a 3-axis machine because the wall is 0.5 mm thick, the fifth axis will not save it.

5-axis work pays off when the geometry or the setup count is the problem, not the part size.

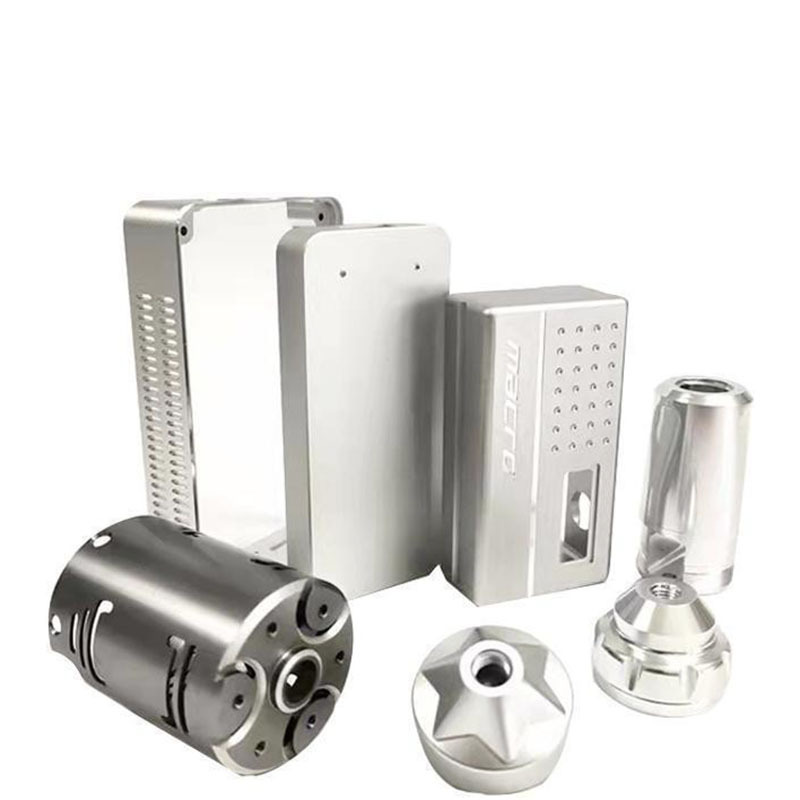

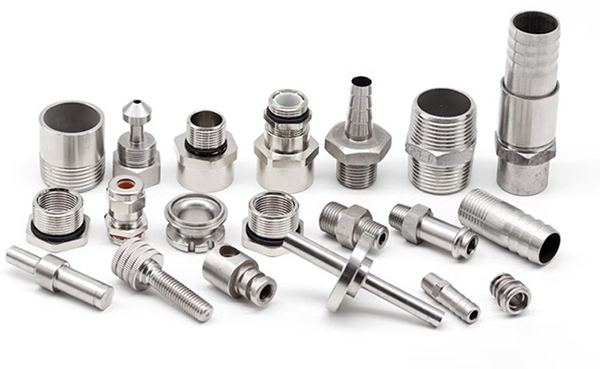

Good candidates: parts with features on four or more faces, undercuts that a straight cutter cannot reach, curved or swept surfaces, and pockets with draft angles. Aerospace brackets, medical instrument bodies, robot joint housings, and EV motor housings all fall here. So do parts that are too expensive to scrap: if one bad setup ruins a titanium forging, single-setup machining is cheap insurance.

Poor candidates: flat plates with holes, simple shafts, and prismatic blocks with features on two faces. A 3-axis mill or a mill-turn center will make them faster and for less money. Adding rotary axes to a job that does not need them just adds programming and prove-out time.

Part count matters too. For one prototype, the setup saving often decides it. For a 10,000-part run, cycle time dominates, and a well-fixtured 3-axis line can beat a 5-axis cell on simple parts. The right answer depends on geometry first, volume second, material third.
