CNC and Laser Cutting: 7 Ways to Drastically Cut Manufacturing Costs

• 1
  Key takeaways
• 2
  When to choose which process
• 3
  Design for manufacturability decides the price
• 4
  Match the process to the geometry, and know when to hybrid
• 5
  Collapse setups with 5-axis machining
• 6
  Nesting and material use in laser cutting
• 7
  Batch size, finishing and supplier audits
• 8
  A cost reduction roadmap, step by step

Most of the cost of a part is fixed on the drawing, long before a spindle turns. Every tolerance tighter than the function needs, every pocket with a square internal corner, every callout for a material that needs special tooling adds money that no shop can remove later. We tell customers the same thing every week: the drawing is the first quote.

Tolerance is the biggest lever. If a bore only locates a bolt, ±0.1 mm is plenty. If it seats a bearing, you may need ±0.005 mm and a ground finish. Mixing those two requirements across a whole part forces the shop to run every feature at bearing tolerance, and the price follows the hardest feature, not the average one.

Corner radii matter as much as tolerance. A 6 mm deep pocket with a 0.5 mm internal radius requires a tiny tool run at low feed. Open that radius to 2 mm or 3 mm, matched to the cutter you expect the shop to use, and cycle time can drop by half. The part still works. The quote gets shorter.

Material choice is the third lever. A 7075 aluminium bracket and a 6061 bracket may both pass the load case, but 7075 costs more per kilogram and cuts slower. Ask your supplier for a DFM report before you freeze the revision. A free review that trims a pocket depth or swaps an alloy often beats any negotiation on hourly rate.

• 1
  Tolerance by functionApply tight limits only where the part must locate or seal.
• 2
  Radius to the toolSet internal corners at least one third of pocket depth.
• 3
  Alloy by load case6061 covers most brackets; step up only when strength demands it.
• 4
  One revision, one reviewSend the CAD for DFM before the print is released.

Laser cutting and milling are often treated as separate worlds, but a large share of production parts use both. Fiber laser is unbeatable on flat sheet: low tooling cost, fast turnaround, and easy nesting. The moment you need a precision bore, a threaded hole, or a machined edge with a finish better than Ra 3.2 μm, the laser stops and the mill starts.

The hybrid route usually looks like this. Cut the blank profile on a laser, then load it into a 3-axis or 5-axis mill for the critical features. You save the cost of milling the full outline from solid stock, which on a 300 × 200 mm plate can be an hour of roughing. You also avoid the distortion that comes from removing a large volume of material.

There is a limit. Thin sheet under about 1.5 mm can warp during laser cutting and move in the fixture, so hold your critical dimensions for the mill and leave stock. Thick plate above 25 mm is usually faster on a waterjet or a mill, because laser taper and dross become hard to control and the edge often needs a secondary operation anyway.

Ask a supplier how they decide. A shop that quotes everything as milling, or everything as laser, is not matching process to geometry. They are matching your part to whatever is free on the floor.

• 1
  Laser the outlineProfiles, slots and cosmetic cutouts belong on the laser.
• 2
  Mill the critical featuresBores, threads and sealing faces go to CNC.
• 3
  Leave stock on thin sheetUnder 1.5 mm, expect movement and machine the datum after cutting.
• 4
  Reconsider above 25 mmThick plate often suits waterjet or milling better.

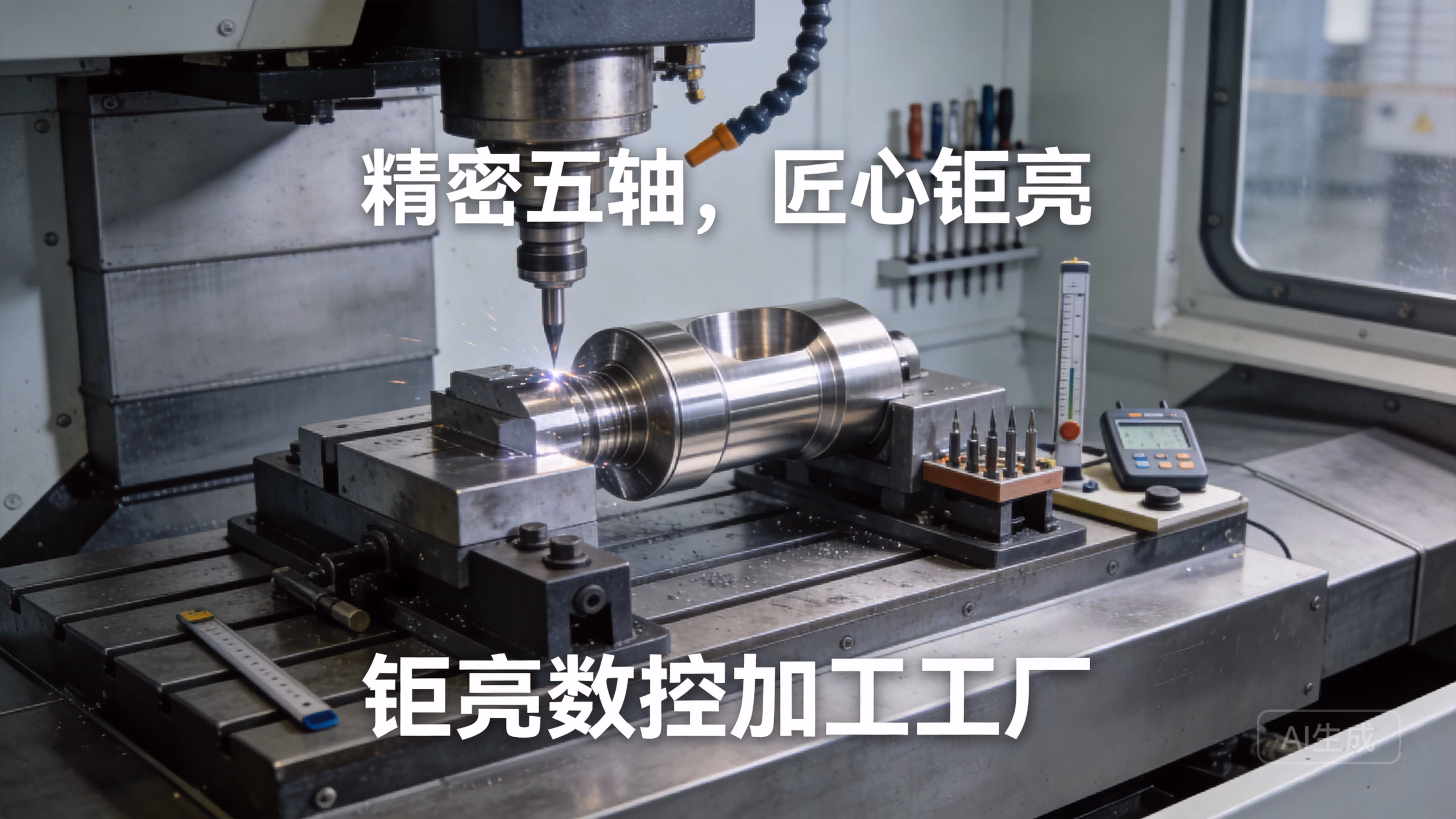

Every time a part moves to a new fixture, you pay twice: once for the setup time and once for the stack-up error that comes with re-datuming. A part that can be machined from two sides instead of five obviously costs less. Five-axis machining is how you get there on complex geometry.

A simultaneous 5-axis center with a Ø400 mm rotary table can reach features on five faces in one program. On a housing with bores on three sides, that can replace three or four separate operations and the fixtures they need. Setup time drops, and true position between features improves because everything is cut from one datum.

Five-axis is not automatically cheaper. Programming takes longer, and the machine hour rate is higher. It wins when the part has many faces, tight inter-feature relationships, or features that are hard to reach on a 3-axis machine. For a simple plate with holes on one face, a 3-axis mill is still the right answer.

Ask how many setups the quote assumes. If a supplier cannot tell you the setup count, they are guessing at the cycle time, and the guess will land on your invoice.

• 1
  Count the setupsFewer setups means less handling and less stack-up error.
• 2
  One datum, many facesFive-axis keeps bores and faces in one coordinate system.
• 3
  Not for flat workA 3-axis mill handles single-face plates faster and cheaper.
• 4
  Programmer mattersThe machine is only as good as the CAM strategy behind it.

Sheet is sold by the sheet, not by the part. How well those parts are arranged on the sheet decides your material cost per unit, and it is one of the few cost items a shop can improve without touching your design. Good nesting is worth real money on a 10,000-part run.

Shared cut lines are the classic trick. Where two parts share an edge, the laser cuts that line once instead of twice. That halves the cutting length and the assist gas for that edge. On a dense nest of small brackets, shared lines can cut total cut length by 20% or more.

Spacing matters too. Too tight and the heat from one cut distorts the neighbor or welds slugs in place. Too loose and you throw away sheet. A good programmer balances kerf, heat input and part geometry rather than using one default gap for every job.

Ask for the nest report on a repeat order. If the material utilization number moves between runs, someone is not paying attention, and you are paying for the difference.

• 1
  Share cut linesTwo parts, one cut, half the gas and time for that edge.
• 2
  Mind the gapSet spacing by material thickness and heat input, not habit.
• 3
  Check utilizationA nest report shows the real material cost per part.
• 4
  Common thickness helpsStandardizing sheet gauge lets more jobs share a nest.

Batch size is a trade-off between amortizing setup and carrying inventory. A run of 50 parts spreads one setup over more units than a run of 5, which lowers the unit price. But if the design changes next month, the extra 45 parts become scrap. The right batch is the smallest one that covers the next build plus a sensible scrap allowance.

Finishing is where hidden cost lives. Anodizing, plating and powder coating often run at a different vendor with its own minimum lot charge. If your part needs three finishes from three vendors, the handling and freight can exceed the finishing cost itself. Keeping more steps under one roof shortens the route and reduces the number of places a part can be damaged.

Certifications only help if they have teeth. A certificate on a wall says nothing about how the shop controls a revision change or what happens when a CMM reading drifts. Ask who audits the system, how often, and whether inspection records travel with the shipment. For medical and automotive work, that paperwork is part of the part.

Put the seven levers together and the savings are not a discount. They come from fewer setups, less sheet waste, fewer vendors and fewer surprises.

• 1
  Size the batch to demandCover the next build plus scrap, not the next year.
• 2
  Consolidate finishingFewer vendors means less handling and less damage.
• 3
  Read the certificate scopeCheck that the certified process covers your part.
• 4
  Ask for recordsInspection reports should ship with the parts on request.
